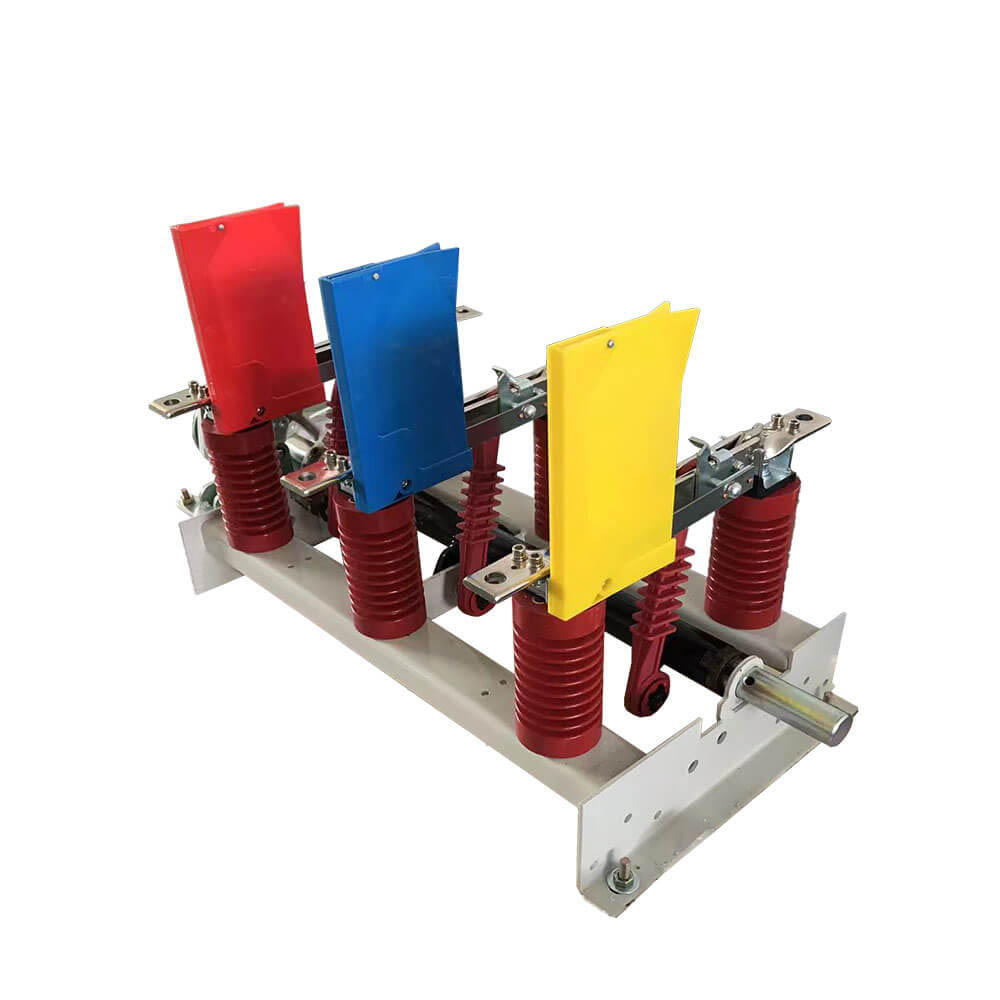

FN7-12 AC high-voltage load switch is a new type of gas-producing indoor high-voltage load switch. It is suitable for three-phase AC power systems with AC 50Hz and rated voltage of 12kV. It is used for breaking load current and closing short-circuit current.

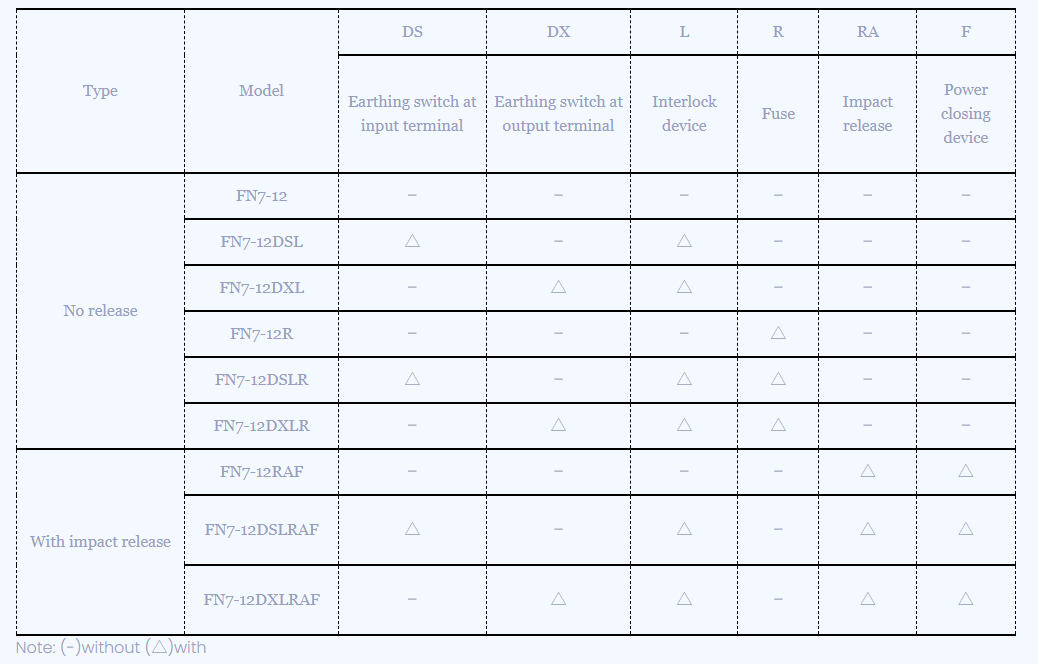

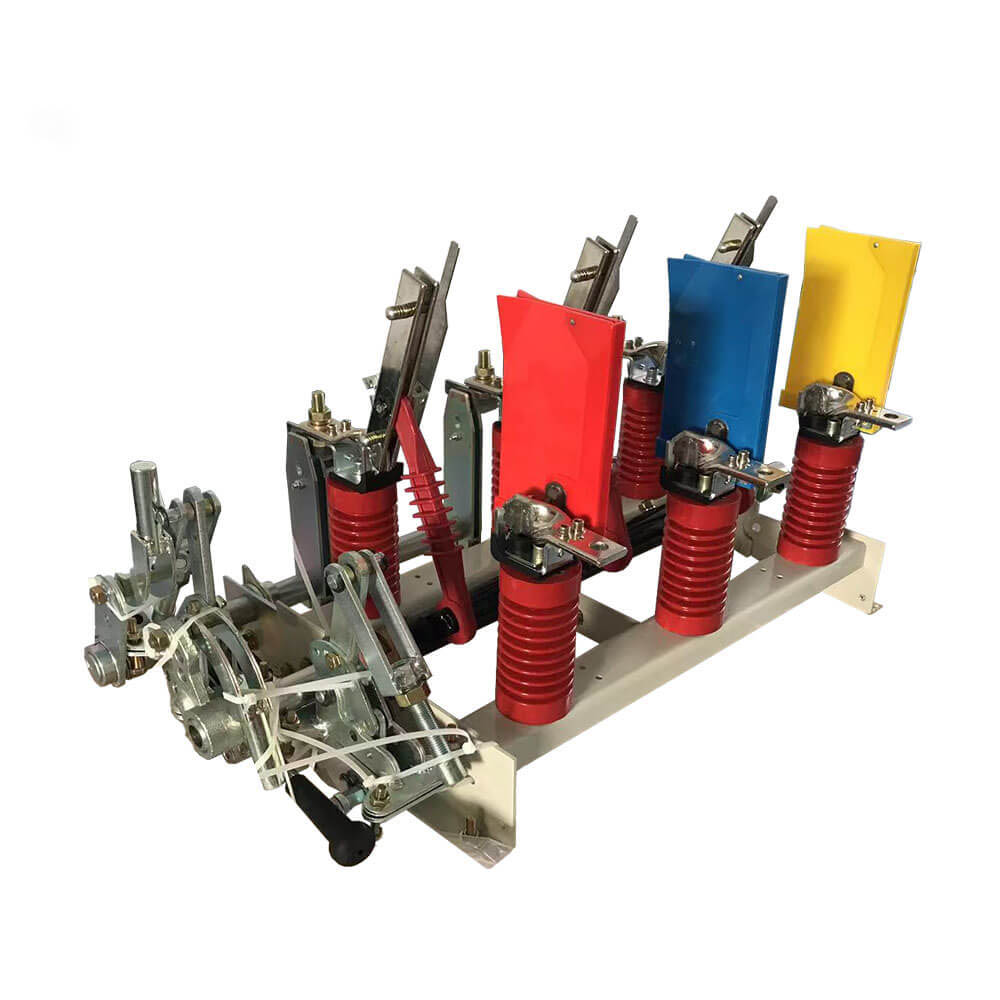

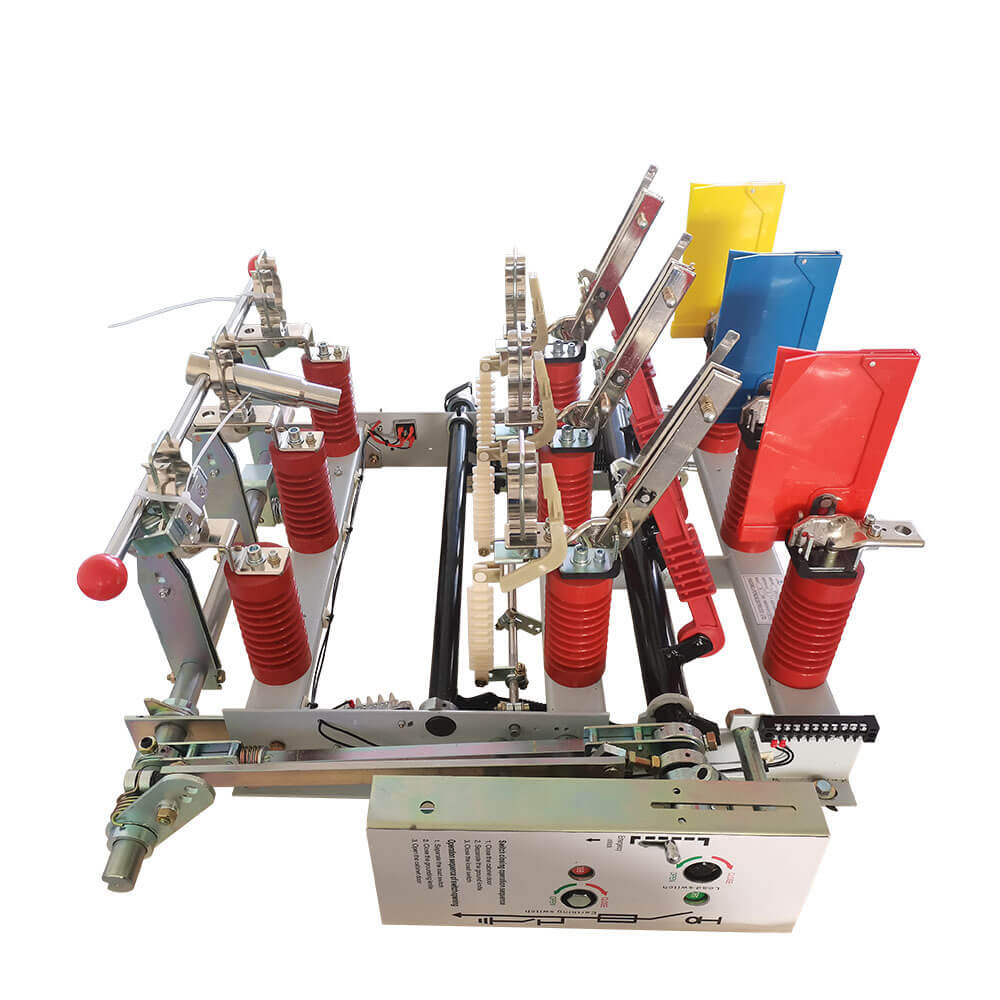

FN7(C)-12 series high-voltage load switch and fuse combination are based on FN7-12 series high-voltage load switch, adding side operating mechanism, which makes the installation more simple and convenient, and can meet the different requirements of users
 |
 |
 |
|
Item |
Unit |
Data |
|
|
Rated Voltage |
KV |
12 |
|
|
Maximum voltage |
KV |
12 |
|
|
Rated current |
A | 400 | 630 |
|
1min frequency withstand voltage. |
KV |
42/48 |
|
|
4S thermally stable rated current (RMS) |
KA | 12.5 | 50 |
|
Dynamic stabilization current(peak) |
KA | 31.5 | 50 |
|
Short circuit closing current |
KA | 31.5 | 50 |
|
Rated opening current |
A | 400 | 630 |
|
Rated transfer current |
A |
1000 |
|
1. The upper limit of surrounding air temperature: +40℃, the lower limit: -25℃.
2. Altitude not exceeding 1000m.
3. Relative humidity: daily average not more than 95%, monthly average not more than 90%.
4. Earthquake intensity not exceeding 8 degrees.
5. No fire, explosion hazard, chemical corrosion and violent vibration in the place.
6. Filtration level: Class II.
7. The surrounding air should be free from obvious pollution such as corrosive or combustible gases and water vapour.
