AC Series Pneumatic FRL Two-Unit Combo

AC Series Pneumatic FRL Two-Unit Combo | AF+AR Air Filter & Regulator Integrated Air Source Treatment Unit

Brand: SOLIH by Richge Technology | Standard Industrial Pneumatic Air Source Treatment Assembly

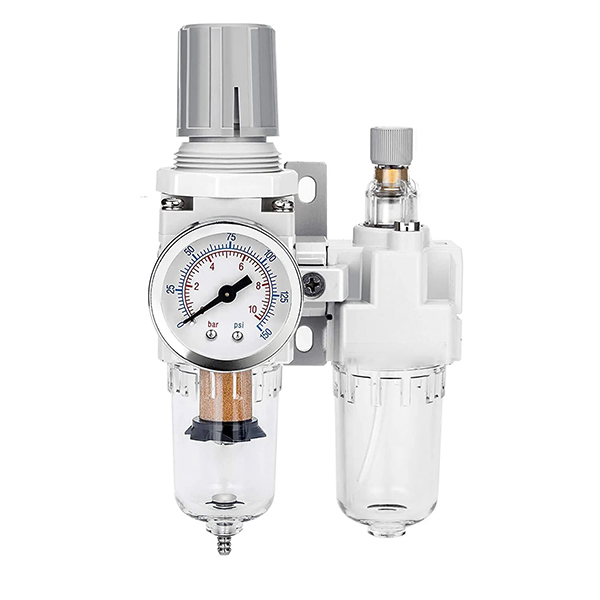

1. Product Overview

     The SOLIH AC series is a standard integrated two-unit pneumatic air source treatment combo, combining AF air filter and AR pressure regulator in one modular assembly. It completes professional compressed air purification and stable pressure regulation in a single installation, effectively removing moisture, dust and particulate impurities while maintaining constant system working pressure. Featuring integrated structure, space-saving installation and simple maintenance, it is the most mainstream standard configuration for automated pneumatic equipment, perfectly suitable for front-end air source conditioning of compressors and various pneumatic actuators.

2. Product Positioning

  AC Two-Unit Combo = AF Water & Dust Filtration + AR Pressure Stabilization & Reduction

     Installed at the rear end of air compressors for primary air source purification and precise pressure control. It is the universal standard assembly for industrial automation pneumatic systems, widely used in oil-free clean equipment and general pneumatic circuit stabilization scenarios.

3. Full Series Model & Flow Grade

4. Core Technical Specifications

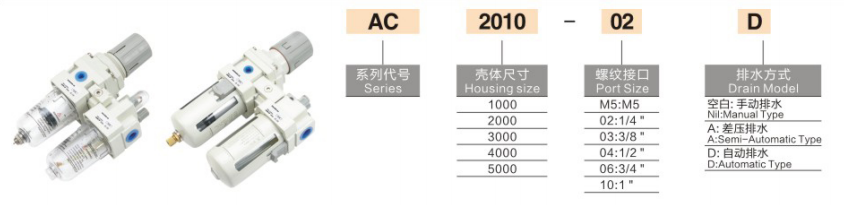

5. Model Coding Rules & Explanation

     • AC2010-02: 2-unit air source combo, 2000 size, Rc1/4 port, standard manual drainage

     • AC4010-04D: 2-unit air source combo, 4000 size, Rc1/2 port, automatic drainage type

     • AC3010-03G: 2-unit combo with high-precision pressure gauge

  Suffix Definition

     • No suffix: Manual drain (cost-effective standard type)

     • -D: Automatic drain (for 24h continuous operation equipment)

     • -G: Equipped with pressure gauge for visual pressure adjustment

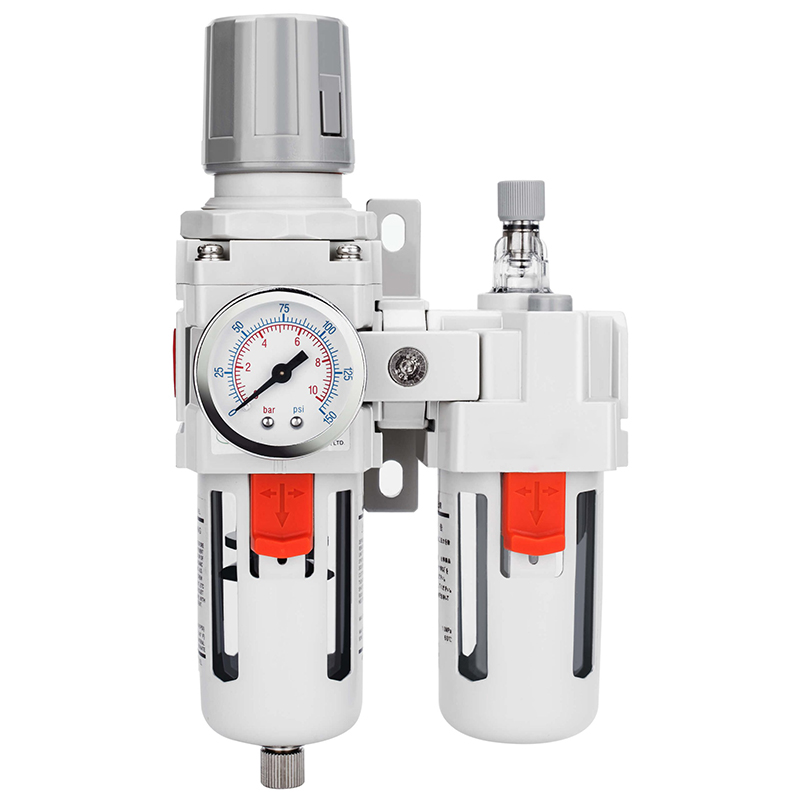

6. Structural Features & Product Advantages

     • Integrated Modular Design: Integrated filter and regulator structure realizes one-piece installation and disassembly, greatly saving pipeline space and simplifying on-site layout and daily maintenance.

     • Efficient Water Separation & Long Service Life: Front-stage centrifugal swirl separation removes large water mist and impurities efficiently, reducing filter element load and extending the service life of the 5μm precision filter element.

     • Stable Pressure Output & Fast Response: Overflow type pressure regulating structure ensures sensitive pressure response and stable downstream pressure, effectively avoiding pressure fluctuation during equipment operation.

     • Anti-Misoperation Self-Locking Structure: Knob self-locking pressure regulation design prevents pressure drift caused by equipment vibration or accidental touch, ensuring long-term stable pneumatic system parameters.

     • Visual Water Level Monitoring: Transparent PC water cup with protective cover realizes real-time visual observation of water level, avoiding excessive water accumulation affecting filtration quality and downstream components.

     • Free Upgrade & Expansion: Standard modular interface supports direct splicing with AL oil mister, quickly upgrading to a complete three-unit FRL assembly for lubricated pneumatic circuits.

7. Typical Application Scenarios

     • Automation Industrial Equipment: Air source pretreatment for automated machines, machine tools, robotic arms and precision automation production lines.

     • Light Industry Pipeline Equipment: Stable purification for electronics, packaging, printing, textile and assembly line pneumatic systems.

     • Pneumatic Component Protection: Front-end filtration and pressure stabilization for cylinders, solenoid valves and pneumatic tools to reduce wear and failure rate.

     • Centralized Air Source Processing: Primary air purification and pressure regulation for factory workshop main air pipelines to improve overall air source quality.

8. Daily Maintenance Guidelines

     • Regular Drainage: Drain accumulated water in the cup regularly to ensure the water level is below the warning line and prevent liquid water from entering the downstream circuit.

     • Timely Filter Element Replacement: Replace the filter element immediately if differential pressure rises significantly; regular replacement every 6–12 months to maintain optimal filtration performance.

     • Standard Installation: Install vertically strictly following the airflow arrow on the body to ensure normal water separation and pressure regulation efficiency.

9. FRL Two-Unit & Three-Unit Selection Instructions

     • AC Two-Unit (Filter + Regulator): Suitable for oil-free and clean pneumatic equipment, such as electronic precision equipment, vacuum systems and oil-free cylinders.

     • AC Three-Unit (Filter + Regulator + Lubricator): Suitable for conventional pneumatic cylinders, pneumatic motors and moving pneumatic components that require oil lubrication.

One Sentence Summary

     The SOLIH AC series two-unit combo integrates high-efficiency air filtration and precise pressure stabilization, featuring modular installation, anti-drift pressure regulation and visual water level monitoring, being the most cost-effective and widely applicable standard air source treatment solution for industrial automated pneumatic systems.
