AR Series Pneumatic Pressure Regulator

SOLIH AR series pneumatic pressure regulator, modular compressed‑air pressure reducing valve for FRL assembly. Overflow‑type relief structure, self‑locking anti‑loosening knob, die‑cast aluminum body, built‑in pressure gauge port, optional bracket mounting. Models AR1000–AR5000 with M5–1" ports, pressure range 0.05–0.85 MPa, ideal for cylinder, solenoid valve and workshop pipeline pressure stabilization.

Send Inquiry

Product Description

AR Series Pneumatic Pressure Regulator | SOLIH Modular Compressed Air Pressure Reducing Valve

Brand: SOLH by Richge Technology | Standard Modular Air Source Pressure Control Unit

1. Product Overview

SOLIH AR‑series is a standard pneumatic air source pressure regulator designed for pressure reduction and stabilization of compressed air. It can be modularly combined with AF air filter and AL lubricator to build AC two‑unit or three‑unit FRL assemblies. Widely deployed for air source pressure control on automation equipment, machine tools and production assembly lines.

2. General Technical Specifications

Parameter Item	Specification
Applicable Fluid	Compressed Air
Max. Working Pressure	1.0 MPa
Proof Pressure	1.5 MPa
Ambient Temperature Range	-5℃ ~ 60℃
Pressure Adjusting Range	AR1000: 0.05 ~ 0.7 MPa AR2000 & above: 0.05 ~ 0.85 MPa
Internal Structure	Overflow‑type (relief function), knob adjustment, self‑locking anti‑loosening

3. Model & Port Size Range

Model	Port Size	Flow Level
AR1000	M5×0.8	Micro‑size low flow
AR2000	1/4"	Small‑medium flow
AR3000	1/4", 3/8"	Medium flow
AR4000	3/8", 1/2", 3/4"	Medium‑large flow
AR5000	3/4", 1"	Large flow

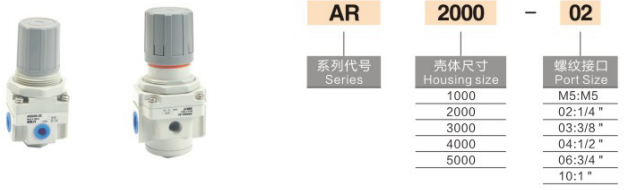

Model Code Explanation & Examples

• AR2000‑02

￮ AR: Pressure Regulator

￮ 2000: Series size

￮ 02: Port size 1/4"

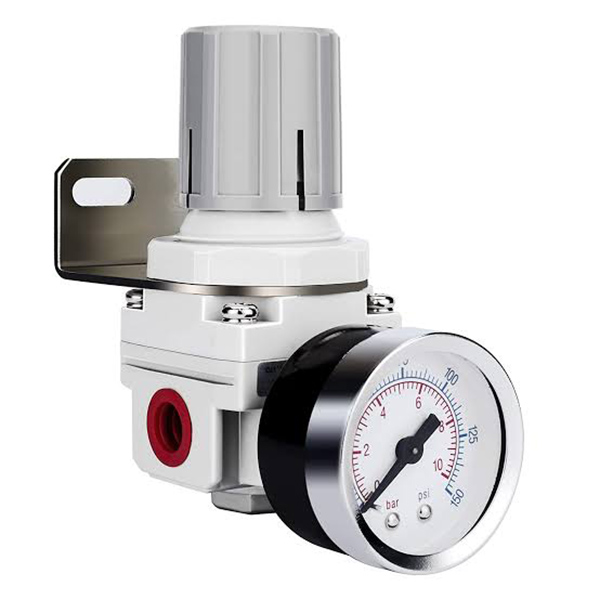

• AR2000‑02G: Regulator equipped with pressure gauge

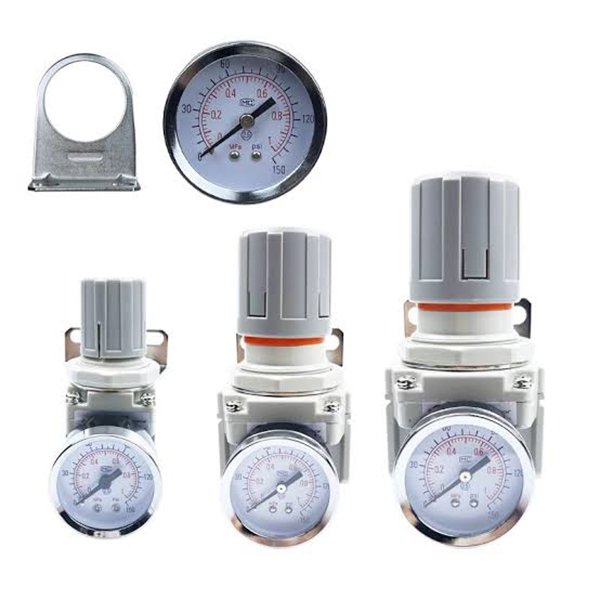

• Bracket / panel‑mount installation available with optional mounting holder

4. Structural Features & Advantages

• Self‑locking Adjustment Knob：Effectively prevents pressure offset and drift caused by vibration or accidental touch.

• Built‑in Overflow Relief Structure：Fast response and stable output pressure under fluctuating flow conditions.

• Die‑cast Aluminum Alloy Body：Light‑weight structure with high mechanical durability.

• Modular Splice‑able Design：Directly assemble with AF filter and AL lubricator for FRL combinations.

• Standard Pressure Gauge Port：Convenient for direct gauge installation without extra adapters.

5. Typical Application Scenarios

• Upstream pressure stabilization for automation equipment, pneumatic cylinders and solenoid valves

• Air‑source pressure regulation for production lines, machine tools and packaging machinery

• Pressure control for spraying equipment and pneumatic hand tools

• Centralized pressure stabilizing for workshop compressed air supply pipelines

6. Recommended Air Circuit Combinations

• Standard lubricated circuit: AF Air Filter + AR Pressure Regulator + AL Lubricator

• Oil‑free working condition: AF Air Filter + AR Pressure Regulator (without AL lubricator)
