CX2 Series Double Rod Slide Cylinder | Low-Profile High Thrust Pneumatic Cylinder

Brand: SOLH by Richge Technology

Product Overview & Core Structural Features

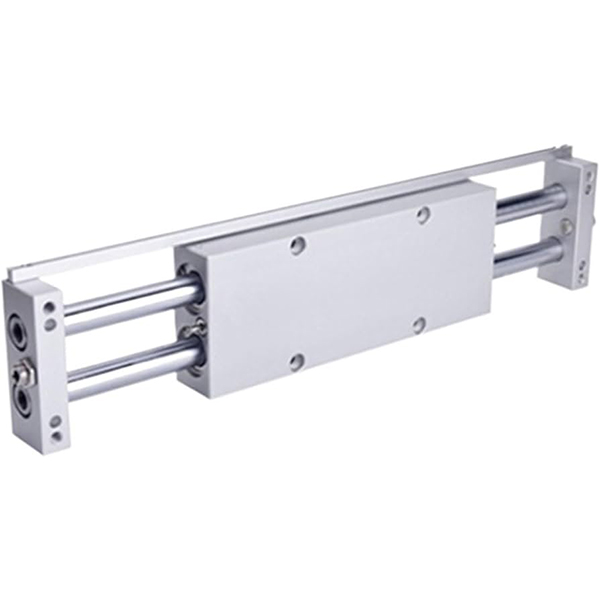

The SOLH CX2 series is a professional double-piston double-rod slide bearing cylinder featuring ultra-low profile, double thrust output, superior anti-rotation accuracy and strong lateral load resistance. It covers bore sizes of φ10mm, φ15mm and φ25mm with standard strokes from 25mm to 200mm. Designed for compact installation space, precision guiding and medium-heavy load pushing/pulling operations, this series is widely applied in various precision automated stations. Extended models including CXWM (slide bearing with hydraulic buffer) and CXWL (ball bearing with hydraulic buffer) are available for high-speed and high-impact working conditions.

Key Structural Advantages

• Double Rod Double Thrust Output: Adopting dual-piston and dual-rod integrated structure, the theoretical thrust is twice that of a single-rod cylinder with the same bore size, delivering powerful driving force and excellent overall structural rigidity. The standard CX2 model adopts high-precision slide bearing guiding for stable linear motion.

• Ultra-High Anti-Rotation & Positioning Accuracy: The symmetrical double-rod structure realizes reliable mechanical anti-rotation performance. Anti-rotation accuracy reaches ±0.1° (φ10) and ±0.02° (φ25), ensuring outstanding repeated positioning stability. High-precision parallel machining between the mounting surface and piston rods greatly enhances resistance to lateral and eccentric loads.

• Low-Profile & Flexible Multi-Directional Mounting: Ultra-thin compact body design perfectly adapts to narrow and confined equipment space. Both the cylinder body and end plate support fixed installation, enabling two working modes: cylinder body fixed with moving end plate or end plate fixed with moving cylinder body. Equipped with four-side mounting holes and three-direction piping ports, it supports fixing from top, bottom and side directions with flexible air pipeline layout.

• Smooth Operation & Long Service Life: Double-acting reciprocating structure with dual-end rubber buffers as standard configuration effectively reduces motion impact and operating noise. Optional CXWM/CXWL hydraulic buffer versions provide excellent shock absorption for both high-speed and low-speed operation, realizing noise reduction and maintenance-free buffering performance. The oil-free design adapts to clean working environments and minimizes daily maintenance costs.

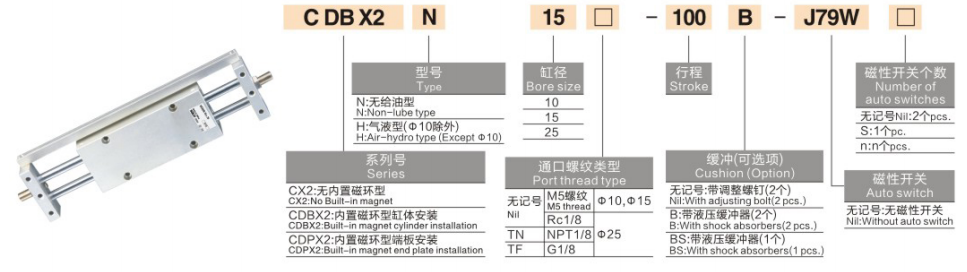

Complete Model Naming Rules

Model Examples: CX2N15-50 | CX225-100-M9BW

Standard Order Reference Examples

• CX210-25: 10mm bore, 25mm stroke, standard type without magnetic switch

• CX215-75-2S: 15mm bore, 75mm stroke, dual magnetic switches for dual-position detection

• CX2N25-100: 25mm bore, 100mm stroke, magnetic-free type for magnetic-sensitive scenarios

Standard Core Technical Parameters

(Standard test conditions: 20℃ normal temperature, 0.5MPa rated pressure)

1. General Performance Specifications

• Operation Mode: Double-acting (dual-piston synchronous driving)

• Working Pressure Range: 0.15~0.7MPa; Proof Pressure: 1.05MPa

• Ambient Temperature: -10℃~60℃ (ice-free conventional environment)

• Piston Operating Speed: 50~500mm/s (standard CX2); up to 800mm/s (CXWM/CXWL high-speed versions)

• Buffer Mode: Dual-end rubber buffer (standard); optional hydraulic buffer for CXWM/CXWL models

• Lubrication Mode: Oil-free maintenance-free operation, suitable for clean industrial environments

2. Theoretical Double Thrust Data (Unit: N)

3. Allowable Lateral Torque Data (Unit: N·m)

4. Product Weight Data (50mm Stroke, Unit: kg)

Typical Application Scenarios

• Precision Material Transfer: Ideal for electronic and semiconductor workpiece translation, pallet exchange and jig pushing/pulling. Ultra-high anti-rotation accuracy ensures zero offset during high-precision positioning and transferring processes.

• Medium-Heavy Load Lifting: Suitable for production line workpiece lifting, mold ejection and short-stroke heavy-load driving. The unique double-thrust structure and strong anti-eccentric load capacity deliver stable and powerful driving performance.

• Confined Space Automation Stations: Perfect for narrow gap equipment installation, horizontal compact layout and dense multi-cylinder arrangement. The low-profile body and multi-directional mounting design maximize space utilization.

• High-Cleanliness Working Environments: Oil-free and low-dust design adapts to medical, food and electronic precision equipment. The optional magnetic-free (N-type) version perfectly matches magnetic-sensitive application scenarios without magnetic interference.

Three-Step Quick Selection Guide

1. Bore Size Selection: Select the bore size according to actual working load. Ensure the theoretical double thrust ≥ actual load × 1.5 with sufficient safety margin. Prioritize the φ25 large bore model for working conditions with heavy lateral loads.

2. Stroke Selection: Standard stroke ranges from 25mm to 200mm, select according to actual travel requirements. Prefer CXWM/CXWL buffer models for long-stroke, high-speed and frequent impact working conditions.

3. Functional Configuration Selection

￮ Dual-end position detection: Select 2S dual magnetic switch configuration for accurate stroke limit positioning.

￮ High-speed & impact working conditions: Choose CXWM (slide bearing + hydraulic buffer) / CXWL (ball bearing + hydraulic buffer) upgraded versions.

￮ Magnetic-sensitive scenarios: Adopt N-type magnetic-free cylinder to avoid magnetic interference.

One Sentence Summary

     SOLH CX2 series double rod slide cylinder integrates double thrust output, ultra-high anti-rotation precision, low-profile compact structure and multi-directional mounting flexibility, providing stable and reliable medium-heavy load driving solutions for confined-space precision automated equipment.
