Brand: SOLH by Richge Technology | Pneumatic Cylinder Piston Rod Flexible Compensating Fitting
 |

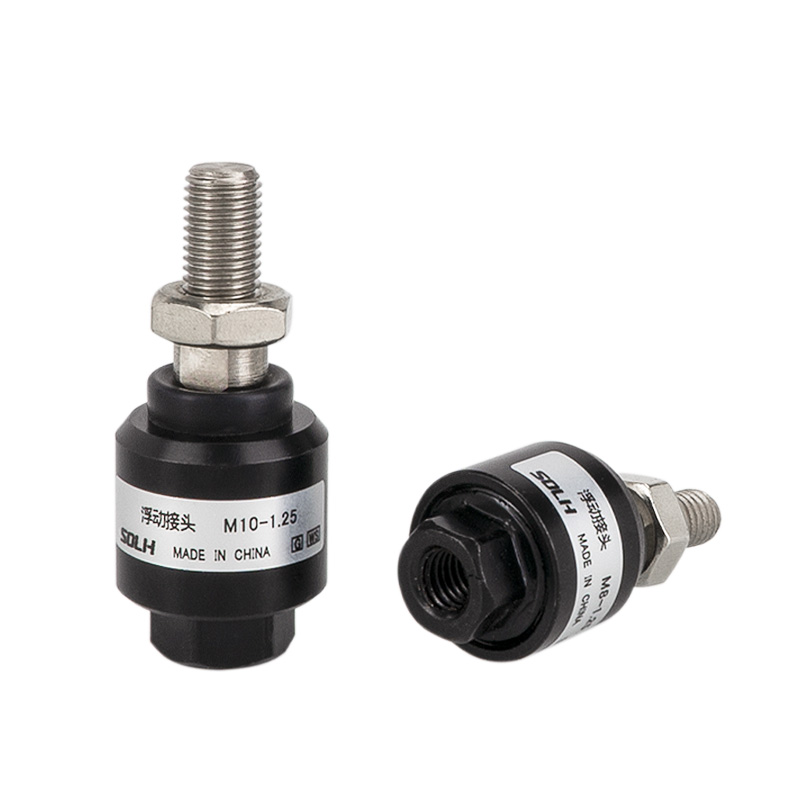

F-type floating joint is a ball-head flexible connecting accessory mounted on cylinder piston rod. Its core function is to absorb installation eccentricity and angular deviation, eliminate lateral side force and protect cylinder seals. It is the standard component for solving alignment errors in automated equipment.
• Structure: Female thread (connect piston rod) + ball head + male thread (connect load), built-in elastic compensation assembly.
• Compensation Capacity: Axial ±1.5mm, radial ±1.25mm, angular ±2°~±5° depending on model.
• Material: Standard anodized aluminum alloy; 304 stainless steel for corrosion-resistant applications; NBR / FKM rubber seals available.
• Function: Convert rigid hard connection into flexible adaptive connection, prevent lateral bending moment and seal abrasion on piston rod.
1) AirTAC

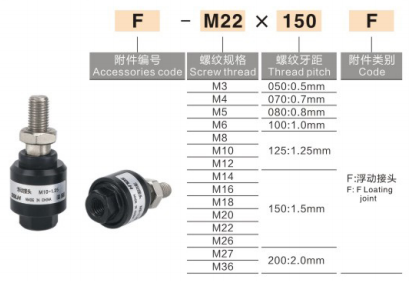

Format: F-M thread × pitch + F
Examples: F-M10×1.25F (for 32mm bore), F-M16×1.5F (for 50/63mm bore)
2) SMC (Standard JAF / Heavy-duty JAHF)
Format: JAF-bore-thread-length
Examples: JAF-40-M12×1.25 (40mm bore), JAHF-80-M20×1.5 (80mm bore heavy load)
3) General domestic marking
Format: F-M12×1.25 or FJ-M16×1.5
|
Model (Thread) |
Matched Bore (mm) |
Allowable Eccentricity |
Swing Angle |
|
F-M6×1.0 |
16/20 |
±0.8mm |
±2° |
|
F-M8×1.25 |
25 |
±1.0mm |
±2° |
|
F-M10×1.25 |
32 |
±1.25mm |
±3° |
|
F-M12×1.25 |
40 |
±1.25mm |
±3° |
|
F-M16×1.5 |
50/63 |
±1.5mm |
±4° |
|
F-M20×1.5 |
80/100 |
±1.5mm |
±5° |
|
Fitting |
Performance |
Application Tips |
|
F-type Floating Joint |
360° flexible compensation, absorbs radial & angular misalignment, protects cylinder |
Poor alignment, high frequency operation, long stroke |
|
I-type Single Clevis |
Single plane hinged ±5°, high rigidity, low cost |
Low speed, good alignment, push-pull load |
|
Y-type Double Clevis |
Single plane hinged ±5°, large load capacity |
Heavy load, load with single ear lug |
|
Rod End Bearing |
Spherical universal ±15°, large swing angle, higher cost |
High speed, large eccentricity, multi-direction swing |
Selection Guide: Poor installation alignment → F-type; low speed heavy load → Y-type; double ear load bracket → I-type; high speed & large eccentricity → rod end bearing.
1. Screw the female thread onto piston rod external thread, anaerobic thread locker is recommended for anti-loosening.
2. Connect male thread end directly to load (or flange / connection plate), strict coaxial alignment is not required.
3. Operating pressure: ≤1.0MPa for standard cylinders; working temperature: -10℃ ~ +120℃.
4. Not suitable for continuous rotary motion. External buffer or stopper required under impact load.
• Automated assembly lines, 3C equipment, robot grippers
• Press-fitting, stamping, mold docking, long-stroke conveying mechanism
• Equipment with difficult coaxiality control, heavy vibration and high-frequency cylinder movement
