MK Series Rotary Clamp Cylinder | 90° Rotation & Linear Clamp 2-in-1 Pneumatic Cylinder

Brand: SOLH by Richge Technology

Product Overview & Core Structural Features

     The SOLH MK series is a standard 2-in-1 rotary clamp cylinder integrating 90° rotation and linear clamping motion. It covers bore sizes from φ12mm to φ63mm with standard clamping strokes ranging from 5mm to 50mm. Featuring ultra-compact installation, 3 times upgraded allowable inertia torque, 4-side magnetic switch mounting and optional left/right rotation, this cylinder is ideal for space-constrained automated stations for workpiece positioning, clamping and fixing, serving as a core pneumatic component for standard automated fixture systems.

1. Compound Rotation & Clamping Motion

• Working Sequence: Retract → 90° left/right rotation → extend for clamping; Reverse sequence: Retract to release clamp → reverse 90° rotation → extend for reset.

• High-Precision Positioning: Fixed 90° rotation angle with ±5° tolerance, delivering excellent anti-rotation performance and reliable repetitive positioning accuracy.

2. Upgraded High Load Capacity

• 3X Higher Inertia Torque: The new upgraded MK series triples the allowable inertia torque, matching the heavy-load performance of traditional MK2 series, perfectly adapting to high-speed operation and large-inertia workpiece clamping scenarios.

• Powerful Clamping Force: The maximum φ63 bore model provides a strong clamping force up to 12.4kN at 0.5MPa, ensuring stable and firm clamping for heavy-duty applications.

3. Compact Body & Flexible Multi-Directional Installation

• Slim & Shortened Structure: Ultra-thin body design with overall length 3~10mm shorter than conventional MK2 cylinders, greatly improving space utilization for narrow and compact equipment layouts.

• Multi-Side Switch Mounting: Supports 4-side magnetic switch installation (φ20/φ25 for 2-side only). Embedded switch design avoids external exposure and interference, enabling flexible and tidy circuit layout.

• Universal Mounting Method: Equipped with through holes and double-end threaded holes, compatible with direct fixed mounting and flange mounting to meet various assembly requirements.

4. Reliable & Durable Performance

• Stable Buffering: Double-acting structure with bilateral rubber buffers effectively reduces operating impact, vibration and running noise for long-term stable cyclic operation.

• Oil-Free Operation: Adopts professional oil-free lubrication design, suitable for dust-free and clean working environments.

• Standard Magnetic Configuration: Built-in magnetic ring with reserved mounting grooves for magnetic switches, convenient for stroke position detection.

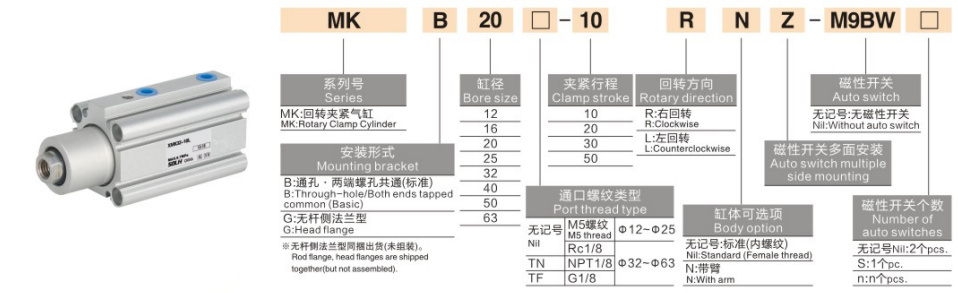

Complete Model Naming Rules & Order Examples

1.Typical Model Examples: MKB20-10RZ, MKB40-20LZ-M9BW

2.Standard Order Examples

• Standard Right Rotation: MKB25-15RZ (φ25 bore, 15mm stroke, clockwise rotation, no switch)

• Left Rotation with Dual Switches: MKB32-20LZ-2S (φ32 bore, 20mm stroke, counterclockwise rotation, dual position switches)

• Large Bore Heavy-Duty Type: MKB63-50RZ (φ63 bore, 50mm maximum stroke, right rotation for heavy load clamping)

General Technical Parameters (20℃, 0.5MPa Standard Condition)

1. Basic Specifications

• Operation Mode: Double-acting compound motion (90° rotation + linear clamping)

• Working Pressure Range: 0.1~1.0MPa; Proof Pressure: 1.5MPa

• Ambient Temperature: -10℃~70℃ (non-freezing); -10℃~60℃ with magnetic switches installed

• Piston Operating Speed: 50~200mm/s

• Buffer Mode: Bilateral rubber buffer

• Lubrication Mode: Oil-free operation (no lubrication required)

2. Clamping Force Data (Unit: kN @0.5MPa)

3. Allowable Inertia Torque (Unit: kg·m²)

4. Product Weight (Unit: kg @20mm Stroke)

Typical Application Scenarios

• Workpiece Positioning & Clamping: Widely used for machine tool fixtures, welding positioning, stamping fixing and assembly station clamping. The integrated 2-in-1 rotation and clamping design simplifies mechanical structure and saves installation space.

• Electronic & Precision Component Fixing: Oil-free and low-dust characteristics perfectly suit semiconductor tray clamping, phone shell positioning and micro precision part fixing, meeting high cleanliness and high-precision requirements.

• Automated Transfer Limiting: Ideal for rotary table limiting, flipping mechanism positioning and short-stroke rotary clamping stations, delivering stable and repeatable compound motion performance.

• Heavy-Duty Fixing Stations: Equipped with high clamping force and excellent anti-deflection capacity, it is applicable for heavy workpiece clamping, mold fixing and large-load precision positioning scenarios.

3-Step Quick Selection Guide

1. Bore Size Selection: Select bore size according to actual clamping load. Ensure the theoretical clamping force ≥ actual load × 1.5 safety factor; prioritize φ40 or larger bore for heavy-duty working conditions.

2. Stroke Selection: Standard clamping stroke ranges from 5mm to 50mm. Select stroke based on actual workpiece height, and reserve 3~5mm margin to avoid mechanical interference.

3. Configuration Selection

￮ Rotation Direction: Choose RZ (clockwise right rotation) or LZ (counterclockwise left rotation) to match on-site station layout.

￮ Position Detection: Select 2S dual-switch configuration to acquire dual position signals for clamping and releasing status.

One Sentence Summary

     The SOLH MK series standard rotary clamp cylinder integrates 90° rotation and linear clamping functions, featuring 3-times upgraded inertia torque, ultra-compact body, multi-direction mounting and strong heavy-load clamping capability, serving as an optimal space-saving and high-stability pneumatic solution for automated fixture positioning and clamping stations.
