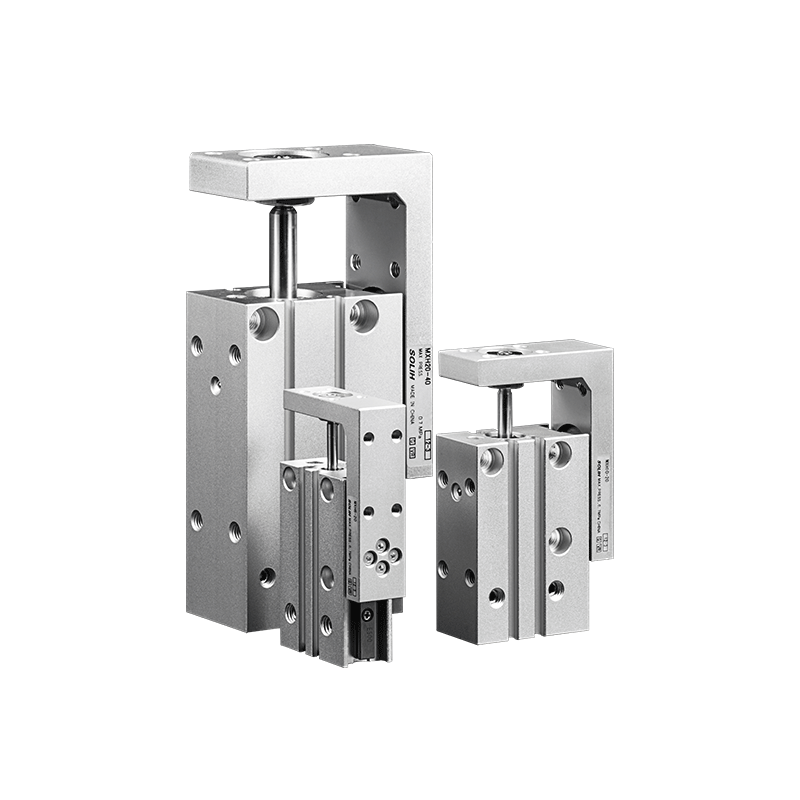

MXH Series Compact Narrow Long-Stroke Pneumatic Slide Table

Brand: SOLH by Richge Technology

Product Overview

     The SOLH MXH series is a narrow-type compact pneumatic slide table equipped with a circulating ball linear guide system. Integrating lightweight design, high rigidity, and extended stroke performance up to 60mm, it features an ultra-narrow body width that saves significant installation space. With excellent anti-deflection load capacity and medium precision positioning capability, it is specially optimized for side-by-side multi-slide installation and precision transfer operations in extremely space-constrained automated scenarios, serving as an ideal long-stroke micro linear driving solution for 3C electronics and precision automation.

Core Structure & Design Features

     --  Dual-Piston Driving Structure: Adopts double-piston double-acting driving mode, delivering stable output force and outstanding synchronous operation performance, ensuring consistent linear motion during high-frequency cyclic work.

     --  Infinite Circulating Ball Guide Rail: Equipped with endless circulating ball linear guide rails, featuring high structural rigidity and excellent linear motion stability. The travel parallelism is controlled within 0.05mm for short strokes, effectively avoiding motion jitter and deviation.

     -- Ultra-Narrow Compact Body: Optimized narrow-width structure, much slimmer than traditional MXQ and MXS series slide tables, perfectly supporting dense side-by-side arrangement of multiple slides to maximize equipment space utilization.

     -- Superior Anti-Offset Load Capacity: The allowable torque is approximately 6 times that of the traditional MXU series, with greatly enhanced resistance to eccentric load and cantilever load, adapting to complex unilateral force operating conditions.

     --  Multi-Directional Flexible Installation: Supports 4-way mounting with transverse through holes/threaded holes and longitudinal threaded holes. Matched with 3-side piping design, it meets diverse installation and piping layout requirements for narrow and stacked equipment structures.

     -- Universal Sensor Adaptation: Built-in magnetic ring as standard, with dual-side sensor grooves compatible with D-M9□ and A93 series magnetic switches, realizing accurate stroke position detection and signal feedback.

Complete Model Coding Rule

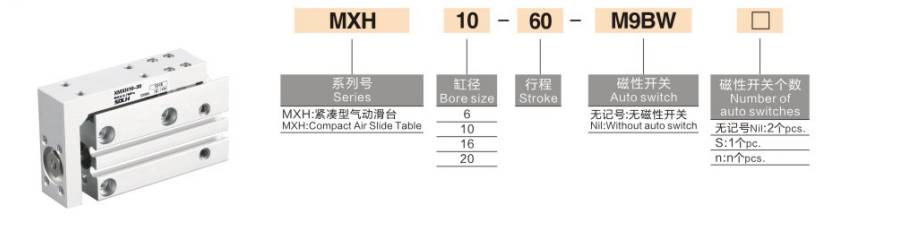

   1. Model Example: MXH16-50Z-M9NL

   2. Standard Order Reference Example

     --  MXH10-30-M9BW: Bore 10mm, stroke 30mm, NPN magnetic switch with 1m wire length

Core Technical Specifications

Output Force & Load Reference Chart (@0.5MPa)

Safety factor ≥2; Vertical load requires allowable torque verification

Allowable Torque Specification (Anti-Offset Load Capacity, N·m)

Application Scenarios & Product Selection Comparison

   1. Priority Application Scenarios for MXH Series

     --  Extremely Space-Constrained Equipment: Ultra-narrow body design supports dense side-by-side installation of multiple slide tables, perfectly fitting miniaturized automated equipment interiors.

     --  Medium-Precision Long-Stroke Operations: Maximum stroke up to 60mm with ±0.02mm repeat accuracy, far exceeding positioning stability of ordinary pneumatic cylinders, meeting medium-precision long-travel transfer demands.

     --  Light-Load High-Frequency Transfer: Ideal for cyclic handling and positioning of electronic components, terminals, small plastic parts and precision tooling fixtures.

     --  Anti-Offset Load Working Conditions: Excellent torque resistance enables stable operation under unilateral force and cantilever installation scenarios, solving deflection and jitter problems of ordinary slides.

MXH vs MXQ vs MXS Series Comparison

Professional Selection Guidelines

     --  Bore Size Matching: Control horizontal load within 50% of the rated value and vertical load within 25% of the rated value, with a guaranteed safety factor of no less than 2 to ensure stable long-term operation.

     -- Stroke Reservation: Reserve 5~10mm stroke margin during selection; the maximum standard stroke of MXH series is 60mm to avoid limit impact and improve service life.

     -- Mounting Mode Selection: Choose transverse mounting for ultra-narrow space layout; adopt longitudinal mounting for stacked and multi-layer installation scenarios to save overall equipment space.

     -- Buffer Optimization: Equip with hydraulic buffer when operating speed exceeds 300mm/s or load weight exceeds 3kg, effectively reducing terminal impact and vibration.

     -- Sensor Configuration: Dual-side sensor grooves support dual magnetic switch installation, realizing accurate in-place detection of both extend and retract strokes for full-stroke position monitoring.

One Sentence Summary

     SOLH MXH series narrow compact pneumatic slide table features ultra-narrow body, high torque resistance, 60mm long stroke and ±0.02mm medium precision, with 4-direction mounting and oil-free operation, being the optimal cost-effective solution for dense installation and light-load high-frequency precision transfer in confined automated spaces.
