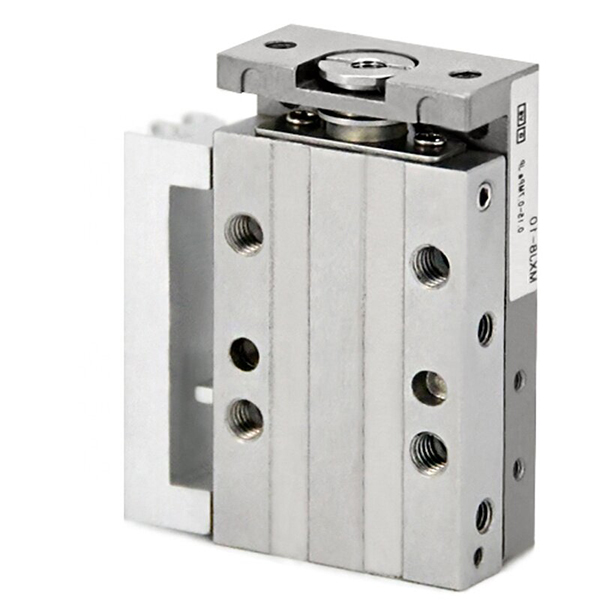

MXJ Series Ultra-Compact High-Precision Pneumatic Slide Table

Brand: SOLH by Richge Technology

Product Overview

     The SOLH MXJ series is an ultra-miniature, high-precision pneumatic slide table designed for micro precision linear driving. Featuring an ultra-compact footprint, micron-level positioning accuracy, lightweight construction, and multi-directional mounting compatibility, it is perfectly tailored for confined-space automated stations including 3C electronic processing, precision detection, micro assembly, and high-frequency short-stroke cyclic operations. It serves as the mainstream high-precision micro linear actuator for miniature automation scenarios.

Core Structure & Design Features

     -- Drive Mode: Double-acting bidirectional operation, bore sizes φ4.5/6/8/12/16mm, covering micro to light load range of 5~50N.

     -- Premium Structure: Adopts martensitic stainless steel body and integrated linear ball guide rail. The load-bearing structure is isolated from piston rod sealing movement, delivering high rigidity and ultra-low friction operation.

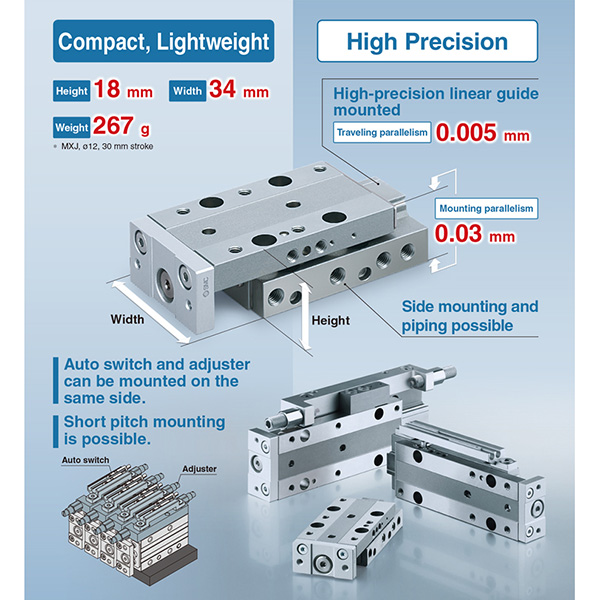

     -- Micron-Level Precision: Travel parallelism 0.005mm, mounting parallelism 0.03mm, verticality 0.01mm, ensuring ultra-stable precision positioning for sophisticated processes.

     -- Ultra-Compact Size: Ultra-thin body design with only 10mm height for φ4.5 bore model and 18mm height for φ12 bore model, 30%~50% smaller than equivalent MXQ slide tables, maximizing space utilization for dense layout stations.

     -- Flexible Multi-Side Mounting: Supports top, bottom, and side three-sided installation with precision positioning pin holes, adapting to various confined and dense equipment layouts.

     -- Universal Sensor Compatibility: Equipped with dual magnetic switch grooves as standard. Models with stroke ≥5mm allow installation of 2 M9B magnetic switches. Symmetric structural design enables left/right switch and piping interchangeability on site.

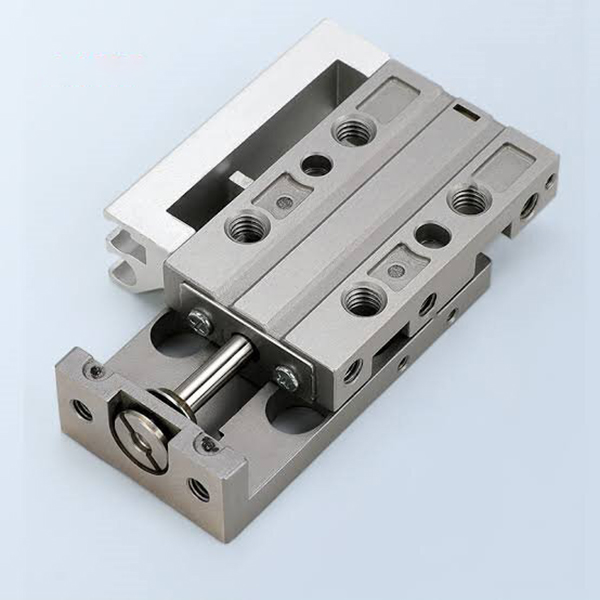

     -- Adjustable Buffering & Limiting: Standard dual-end rubber buffer for noise and impact reduction; optional single-end/dual-end metal stroke limiters with 0~5mm adjustable stroke range for ultra-precise positioning.

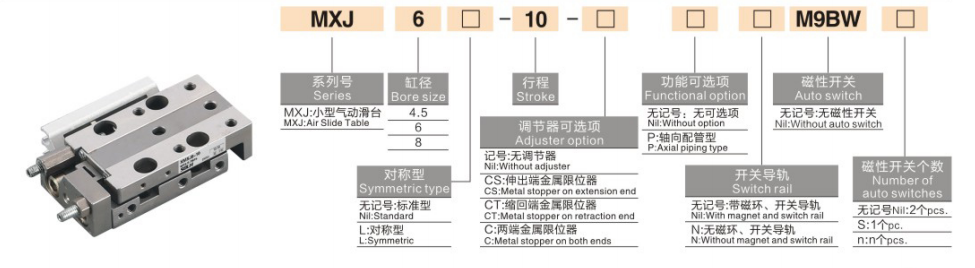

Complete Model Coding Rule

   1. Model Example: MXJ6-10-CS-M9B

   2. Standard Order Reference Examples

     -- MXJ4.5-5: Standard type, no magnetic switch, bore 4.5mm, stroke 5mm, double acting

     -- MXJ8-15-B-2M9B: Bore 8mm, stroke 15mm, dual-end metal limit, 2pcs M9B magnetic switches

     -- MXJ12-20-L: Symmetric type, bore 12mm, stroke 20mm, reversible side piping

Core Technical Specifications (@0.5MPa, Double Acting)

   1. Micro Specifications (φ4.5 / φ6 / φ8)

   2. Small Specifications (φ12 / φ16)

Core Competitive Advantages

   1. Micron-Level Ultra-High Precision & Stability

     -- Integrated one-piece machining paired with high-precision linear ball guide rail ensures repeat positioning accuracy of ±0.01mm and ultra-low parallelism error, fully meeting strict precision requirements for micro detection and fine positioning processes.

   2. Ultra-Compact & Space-Saving Design

     -- Ultra-thin and ultra-short body structure with a minimum height of only 10mm. Three-sided mounting design adapts to ultra-narrow vertical and horizontal space, saving over 40% installation space compared with conventional slide tables, ideal for dense automated production lines.

   3. Lightweight & High-Frequency Fast Response

    -- Optimized stainless steel lightweight structure (40~500g) reduces moving inertia effectively. Operating speed ranges from 50 to 500mm/s, supporting stable high-frequency operation over 300 cycles per minute (cpm) to boost production efficiency.

   4. Oil-Free Operation & Super Long Service Life

     -- Adopts low-friction wear-resistant sealing and oil-free design, compatible with clean workshops and slightly oily industrial environments. Durable structural configuration ensures a service life of over 5 million cycles with long-term stable maintenance-free operation.

   5. Symmetric Reversible Design for Flexible Installation

     -- Symmetric air port and switch groove structure allows on-site left/right interchange of piping and sensor installation, eliminating directional restrictions and greatly improving on-site debugging and structural adaptation flexibility.

Mounting Forms & Typical Applications

   1. Mounting Methods

     -- Top Mounting: Fixed via through holes with precise positioning pin holes, suitable for workpiece top installation and high-precision positioning scenarios.

     -- Bottom Mounting: Fixed via bottom threaded holes, stable and reliable, applicable for standard equipment surface installation.

     -- Side Mounting: Fixed via side threaded holes, perfect for equipment with limited vertical space and dense parallel arrangement of multiple slides.

   2. Typical Application Scenarios

     -- 3C Electronics: Chip handling and transfer, camera lens focusing, micro component lamination, button life durability testing

     -- Precision Detection: Probe positioning, CCD camera precise movement, micro dimension measurement, optical fine calibration

     -- Micro Assembly: Automatic screw locking, terminal crimping, precision component insertion, miniature jig driving

     -- Medical Equipment: Micro pump precision control, miniature valve switching, small instrument telescopic positioning

3-Step Fast Selection Guide

   1. Bore Selection by Load

     -- φ4.5 ≤0.5kg / φ6=0.5~1kg / φ8=1~2kg / φ12=2~5kg / φ16=5~8kg. Reserve no less than 50% load safety margin for stable precision operation.

   2. Stroke Confirmation

     -- Standard stroke range: 5~50mm. Prioritize short strokes (5~20mm) for high-frequency working conditions to ensure higher precision and operational stability.

   3. Configuration Matching

     -- Position Monitoring: Equip 2 M9B magnetic switches for bidirectional stroke position feedback.

     -- Precision Limiting: Select dual-end metal limit (B) for 0~5mm adjustable precise stroke positioning.

     -- Mounting Adaptation: Choose side mounting for dense station layout, bottom mounting for standard surface installation.

One Sentence Summary

     SOLH MXJ series ultra-compact high-precision pneumatic slide table features micron-level positioning accuracy, three-sided flexible mounting, lightweight high-frequency operation and optional adjustable metal limiters, serving as the cost-effective precision micro linear actuator widely used in 3C electronics, precision detection, micro assembly and medical automation equipment.
