MXQ Series Pneumatic Slide Table | Recirculating Ball Guide / Economical Type

Brand: SOLH by Richge Technology

Product Overview

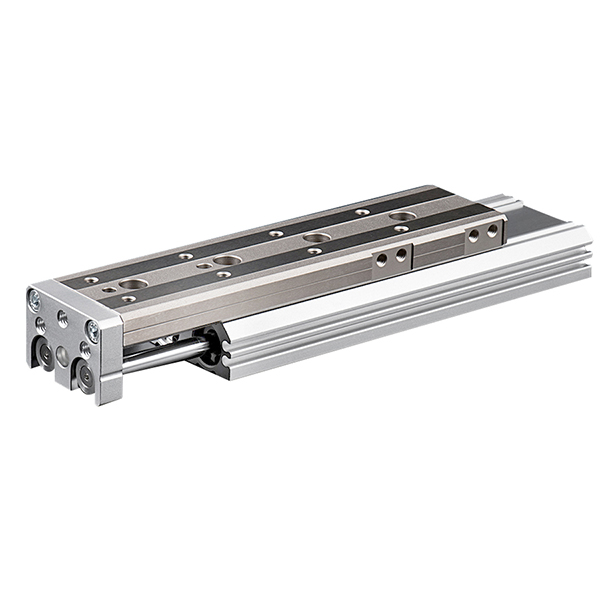

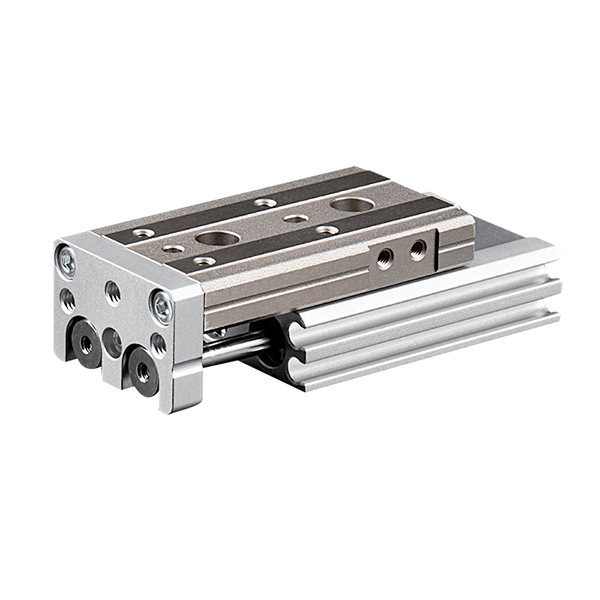

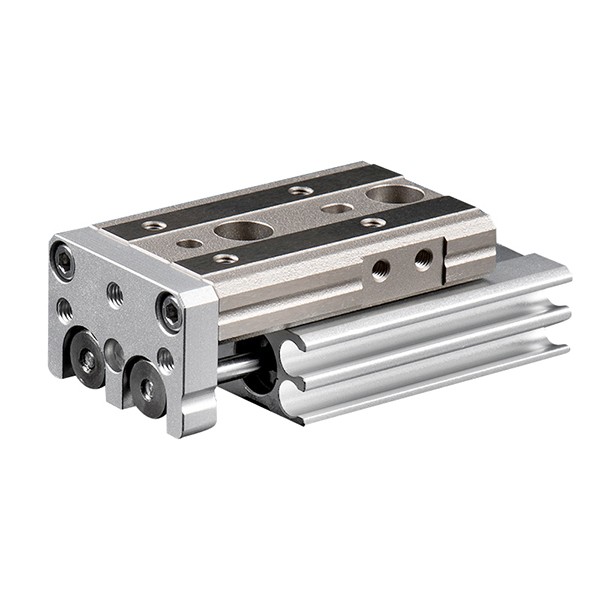

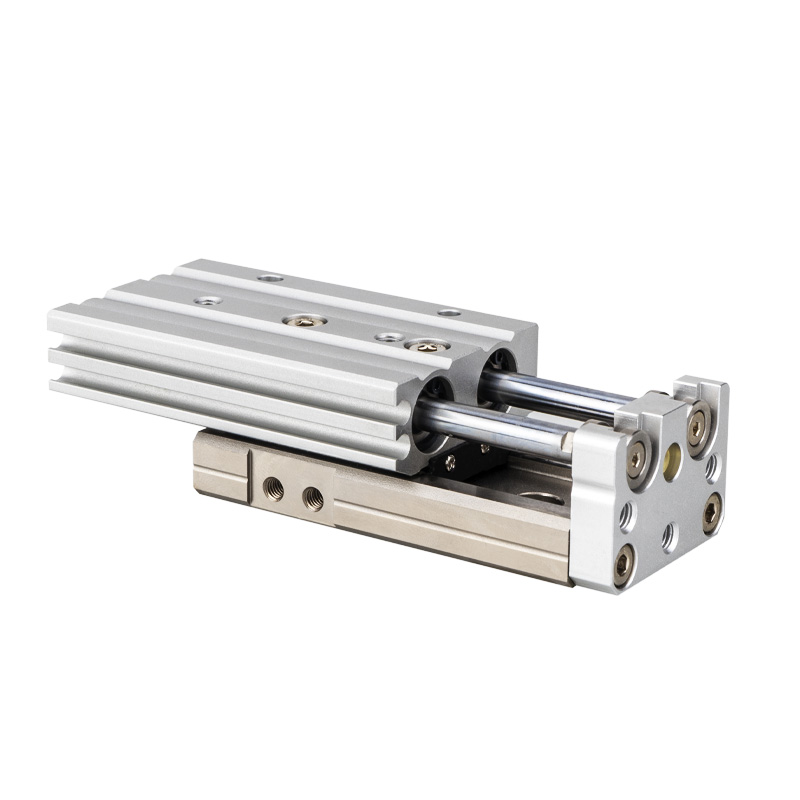

     The SOLH MXQ series is an economical compact pneumatic slide table featuring a dual-piston driving system and recirculating ball guide rails. Adopting an ultra-thin and lightweight integrated structure, it delivers stable medium-precision linear motion with a repeat accuracy of ±0.02mm. As a cost-effective alternative to the traditional “cylinder + external guide” combination, it greatly reduces equipment costs while maintaining reliable operating performance. Ideal for general automated handling and standard precision assembly scenarios, it is the preferred basic linear driving solution for mass automated production lines.

Core Structure & Working Principle

     -- Dual-Piston Double-Acting Drive: Equipped with a dual-piston structure that provides double the output thrust of single-cylinder slides with the same bore size. It ensures synchronous and stable linear movement with zero swinging or deflection during high-frequency cyclic operation.

     -- Recirculating Ball Guide Rail: Adopts non-preloaded recirculating ball guide design, featuring smooth light-load movement and low manufacturing cost. It maintains stable ±0.02mm repeat positioning accuracy, fully meeting medium-precision automation requirements.

     -- Ultra-Thin & Lightweight Integrated Body: The integrated cylinder and slide table structure is 10% lower in height and 22% lighter in weight than the MXS series, realizing a more compact installation layout for space-limited equipment.

     -- Flexible Three-Sided Mounting: Supports bottom, side and axial three-direction fixing with preset precision positioning pin holes. It simplifies on-site installation and positioning procedures, improving overall assembly efficiency.

     -- Built-In Magnetic Induction Design: Standard internal magnetic ring with reserved side mounting grooves for D-M9□ and A93 series magnetic switches. The flush mounting design avoids structural interference and ensures stable position signal feedback.

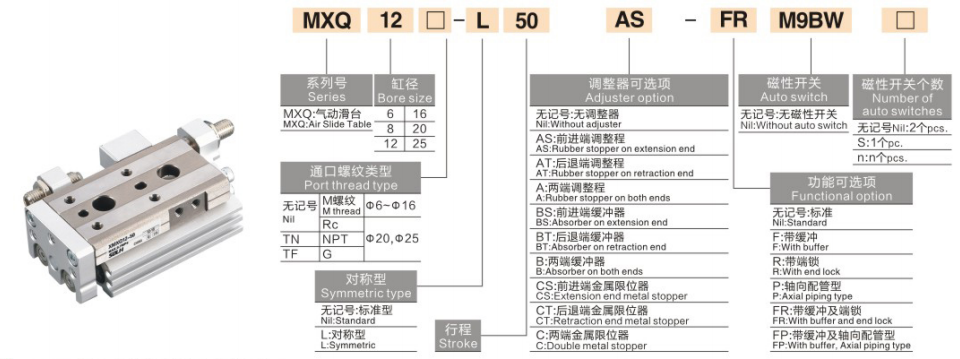

 Complete Model Coding Rule

   1. Model Example: MXQ16-50AS-M9BW

   2. Standard Order Reference Example

     -- MXQ20-75A-FR-M9NL: Bore 20mm, stroke 75mm, dual-end stroke adjustment, axial piping, PNP magnetic switch with 3m wire length

General Core Technical Specifications

Output Force & Load Reference Chart (@0.5MPa, Horizontal Installation)

Note: Load capacity decreases with longer stroke and higher operating speed; safety factor ≥2; vertical load requires allowable torque verification

Application Scenarios & Product Selection Comparison

   1. Priority Application Scenarios for MXQ Series

     --  General Automated Handling: Perfect for cyclic transfer of small electronic parts, terminals, plastic components and lightweight modular fixtures with standard precision requirements.

     -- Cost-Sensitive Automation Projects: As a cost-effective alternative to the high-precision MXS series, it reduces overall equipment costs by more than 30% while maintaining stable basic performance.

     -- Ultra-Compact Space Layout: Features lower body height and lighter weight than MXS slides, saving vertical installation space for highly compact automated equipment.

     -- Medium-Precision Light-Load Operation: Ideal for working conditions with ±0.02mm positioning demand and no high rigidity or heavy torque resistance requirements.

     -- High-Frequency Short-Stroke Cycling: Reliable for long-term repeated operation within 10~50mm short stroke, effectively replacing traditional split cylinder and external guide combinations.

   2.MXQ vs MXS vs MXH | Core SMC Slide Table Comparison

Professional Selection Key Points

     -- Bore Size Matching: Select the appropriate bore size according to workpiece weight and installation direction. Control horizontal load within 50% of the rated value and vertical load within 25% of the rated value to ensure stable long-term operation.

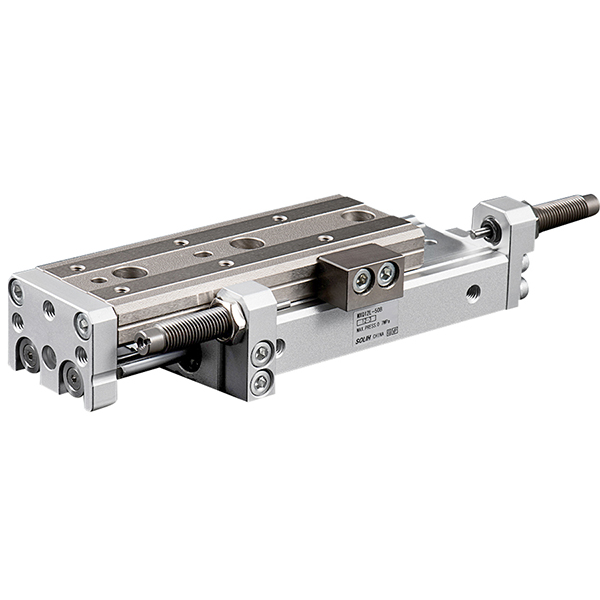

     -- Stroke Selection & Margin Reservation: Reserve 5~10mm stroke margin during model selection. Adopt AS/AT/A fine adjustment suffix (0~5mm trimming) if precise stroke calibration is required.

     -- Flexible Mounting Selection: Bottom mounting for horizontal material handling; side mounting for lateral fixed installation; axial mounting for Z-axis stacking and multi-layer equipment assembly.

     -- Buffer Configuration Optimization: Standard rubber buffer for conventional low-speed operation. Install an optional hydraulic buffer when operating speed exceeds 300mm/s or load weight exceeds 5kg (not applicable for MXQ6 model).

     -- Position Detection Configuration: Compatible with M9B/M9N/A93 magnetic switches. Dual-side embedded grooves support dual-switch installation to realize accurate extend/retract in-place signal feedback.

One Sentence Summary

     SOLH MXQ series economical pneumatic slide table adopts lightweight recirculating ball guide and dual-piston integrated structure, featuring ultra-light thin body, ±0.02mm stable medium precision and low cost, serving as the best cost-effective replacement for traditional cylinder-guide combinations for general industrial automation and light-precision assembly.
