GN30-12 type rotary indoor high-voltage isolating switch is a new type of isolating switch with rotary contact knife. The main structure is that the upper and lower planes of the three-phase common chassis are fixed with two sets of insulators and contacts, and the switch is opened and closed by rotating the contact knife. 1.Extractable version Shake in/out with the door closed 2.Can be used in all types of facilities and equipment 3.Due to the limited number of components and the use of mass production systems for manufacturing, it has very reliable controllability 4.Easy and convenient maintenance 5.Multiple types of functional units that can be used for various solutions

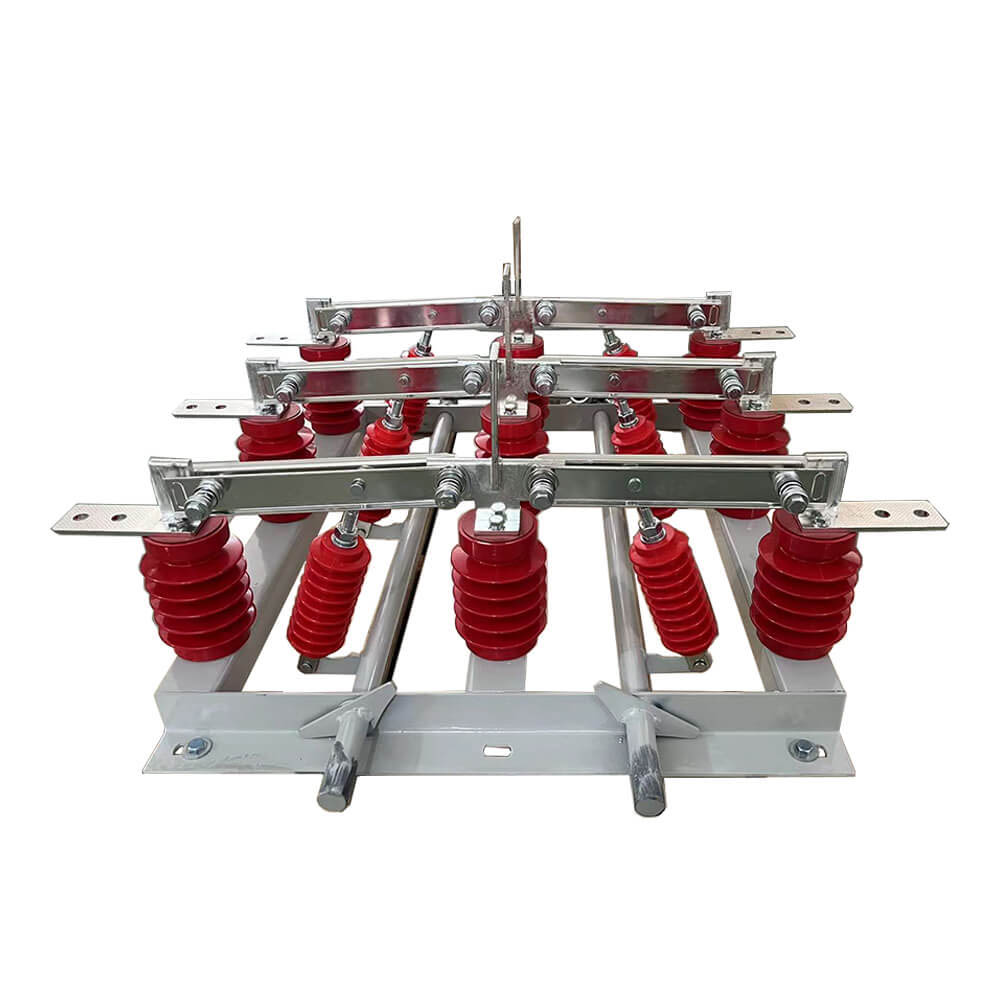

GN19-12(c) series indoor AC high voltage isolation switch is suitable for AC 50hz，rated working voltage of 12kv, 10kv, rated working current of 400A, 630A, 1250A power system, as a voltage and no load under the condition of breaking, closed circuit indoor switchgear.rated voltage 12kv and below power system, equipped with manual operation mechanism, used for switching electrical appliances under the condition of voltage but no load, There are also dispatched to produce anti-fouling type, plateau type and live display devices that can be installed. GN19-12 series indoor high voltage isolating switch is an indoor device with rated voltage of 12kv and three-phase AC 50hz.

GN19-12(c) series indoor AC high voltage isolation switch is suitable for AC 50hz, rated voltage 12kv and below power system,It is equipped with CS6-1 manual-operating mechanism and is used to break and make circuit under no-load. There are additional pollution type, high-altitude type and power indicating type. It is made as per IEC 62271-102. used for switching electrical appliances under the condition of voltage but no load, There are also dispatched to produce anti-fouling type, plateau type and live display devices that can be installed. GN19-12 series indoor high voltage isolating switch is an indoor device with rated voltage of 12kv and three-phase AC 50hz.

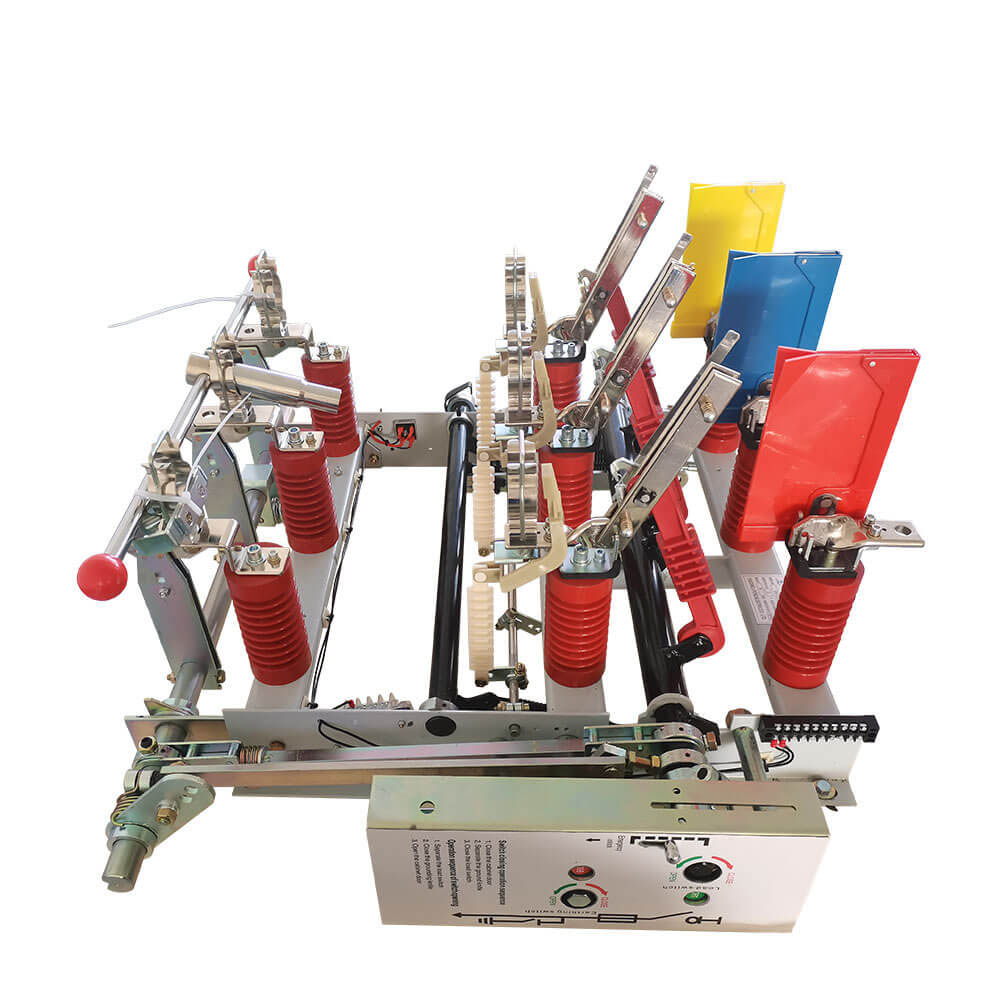

FKN12-12D/630-20 indoor AC high-voltage load switch is a three-phase high-voltage switchgear with a rated voltage of 12KV and a rated frequency of 50HZ. It is used for switching load current, closed-loop current, no-load transformer and cable charging current, off combined short-circuit current. The load switch equipped with the grounding switch can withstand short-circuit current.and m-ainly used in power distribution substation and industrial electrical equipment where three phase closed loop circuit or bottom power supply system for control and protection.

We are committed to developing Load Switch, Outdoor High Voltage Auto Recloser, Indoor Voltage Vacuum Breaker that are closer to the needs of consumers and provide consumers with better products. We always take rewarding society as a blessing and take the prosperity and revitalization of the motherland as our own responsibility. Our company takes our enterprise reputation and staff quality ahead of enterprise development as our development guarantee. We insist on the idea of science and technology is the first productive force. With our technical skils, efficient management and high-quality products, we have won praise from our customers with our cost-effective goods. LYL-12 series, suitable for three-phase AC 50Hz, with a rated voltage of 12kV, It features a rugged design, excellent arc extinguishing performance, and reliable operation under harsh grid conditions. LYL-12T load switch complies with the relevant requirements of GB3804-2004 "3.6kV~40.5kV high voltage AC load switch" and GB16926-1997 "AC high voltage load switch-fuse combination appliance". Main circuit: 630A-20kA (4s), 25kA (3s); Mechanical life: 5000 times; Grounding circuit: 20kA (2s); Mechanical life: 2000 times.

We are committed to developing Load Switch, Outdoor High Voltage Auto Recloser, Indoor Voltage Vacuum Breaker that are closer to the needs of consumers and provide consumers with better products. We always take rewarding society as a blessing and take the prosperity and revitalization of the motherland as our own responsibility. Our company takes our enterprise reputation and staff quality ahead of enterprise development as our development guarantee. We insist on the idea of science and technology is the first productive force. With our technical skils, efficient management and high-quality products, we have won praise from our customers with our cost-effective goods. FKRN-24D when load break switch equip with high voltage current limited fuse(with striker), it comes into being load break switch and fuse combination apparatus,acting as protecting and control apparatus for transformers, cable and overhead wiring. When a phase or multiphase fuse fusing, load break switch automatic brake three-phase. These series load break switch are especially applicable in rural,urban terminal substation and prefabricated substations, as well as ring network power supply.

FN7 series Load break switch, generally comes with the spring mechanism for switching oN & oFF the supply, however, option with vacuum circuit breaker is also available. Of course, option with Vacuum circuit breaker is costlier. Choice between these two totally depends on the customer. Load break switch with vacuum circuit breaker is more reliable option.FN7 36kv load break switch with fuse combination AC high voltage 。 The FN7-12DR type indoor AC high voltage load switch is is suitable for AC 50Hz, rated voltage 12kv three-phase AC power system as breaking any load current and short circuit current use, breaking up can be a combination of electrical short-circuit current , can be used as protection purposes.Richge is a leading manufacturer specializing in electrical switchgear components, with a focus on providing high-quality Switchgear Lower Hinges. Our products are crafted using premium materials and advanced manufacturing processes, ensuring exceptional durability and reliability in various industrial environments. With years of experience and technological innovation, our Switchgear Lower Hinges meet international standards, offering safe and stable support for customers worldwide. We are committed to continuously enhancing product performance, meeting diverse customer needs, and delivering exceptional service and solutions.

FN18 load switches and load switch-fuse combinations are high-voltage, high-performance load switches combining compressed-air arc extinguishing and gas-produced arc extinguishing. The combination of load switch and fuse combines the advantages of the load switch with those of the fuse to switch any load current up to the rated breaking current of the load switch, and to switch any overcurrent up to the rated short-circuit breaking current of the combination by means of the operation of the fuse and its impinger. It is used in three-phase power distributions of AC 50Hz rated voltage 12kv and rated current 630A Esp For power ring network in city net work construction improvement high-rise buildings and public facilities as an ideal product to protect package substation and transformer It has the features of advanced design simple operation impact structure smart appearance light weight complete function fast on-and off speed and high reliability.

FN18-D is a general purpose, three-pole, load break switch that offers switchgear owners and assemblers the advantages of an advanced interrupting technology and proven, dependable performance in a compact design. The switch is available to switchgear assemblers as a building block for metal-enclosed and pad-mounted switchgear applications in ratings from 12-40.5 kV. The standard FN18 switch includes a heavy-duty steel frame with stand-off insulators, a unique puffer-type arc extinguishing system, an operating mechanism and current-carrying components, including blade-type interrupters with cast hinges and jaw connectors. Optional accessories and features include a variety of operating handles, a motor operator, auxiliary switches, a shunt trip device, fuse bases, mechanical fuse tripping, grounding switches, mechanical door interlocking and key interlocking. FN18 series indoor high-voltage load switch has the advantages of easy design, operation, compact structure, small volume, full function, light weight, fast breaking and closing speed and high reliability. It is suitable for AC 50Hz, rated voltage 12kV, 24kV, rated current 630A and three-phase distribution system, especially for city network construction and renovation projects, high-rise buildings, ring network power supply of public facilities, and is an ideal product for box-type substation and transformer protection.
