Product Details and Application of Switchgear Secondary Plug-In The Switchgear Secondary Plug-In is a crucial component designed to facilitate secure, reliable, and easy electrical connections within switchgear assemblies. Made from high-quality, durable materials such as copper, aluminum, and thermoplastic insulating compounds, this plug-in is engineered to meet stringent safety standards and provide excellent electrical conductivity. It is primarily used in low to medium voltage switchgear systems, providing a secure interface for secondary electrical circuits, control circuits, and auxiliary functions.

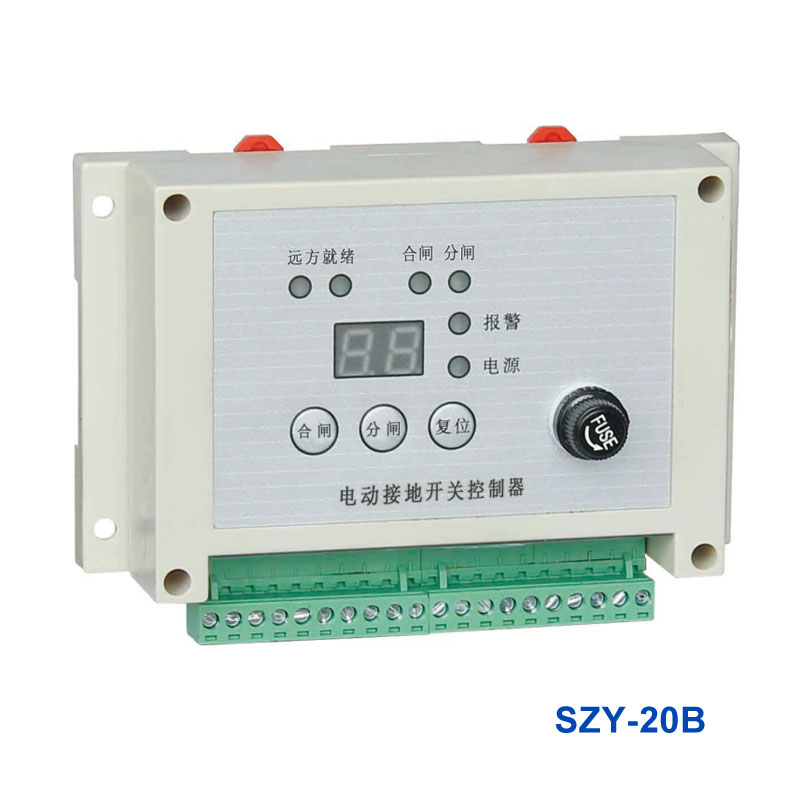

The switchgear ground knife controller is a vital device used in electrical systems to operate ground knife switches, which are essential for safely grounding equipment during maintenance and servicing. This controller provides reliable and precise control over the opening and closing of ground knife switches, ensuring effective isolation and protection of electrical circuits.

Switchgear roller parts are essential components designed to facilitate the smooth movement and operation of various switchgear elements. Made from high-quality materials like stainless steel or engineered polymers, these rollers provide robust support and reliable performance in high-voltage environments. Their precision engineering ensures minimal friction, reducing wear and tear on associated switchgear components, which extends the equipment's overall lifespan. Switchgear rollers are often equipped with sealed bearings to protect against dust and moisture, enhancing their durability and reducing maintenance needs.

SOLH CXS high-rigidity thin twin rod cylinder is fully interchangeable with original SMC CXS series. Constructed with integrated coaxial dual pistons and dual guide rods for synchronous actuation, it delivers nearly doubled thrust versus single-piston cylinders of identical bore size with stable anti-rotation accuracy of ±0.1°. Its integrated guiding structure provides strong resistance to lateral and eccentric loads without external auxiliary guides. Four core sub-models are available: CXSM with metal slide bearing boasts outstanding wear resistance, dustproof performance and superior side load capacity for low-speed positioning, pressing and dusty environments; CXSL ball bearing type features ultra-low friction and smooth movement with maximum speed up to 400 mm/s for high-frequency high-speed pick-and-place; CXSWM/CXSWL double through rod versions allow fixture installation on both rod ends for bilateral synchronous lifting and centering transfer. Dual-end rubber buffers are standard; AZ air buffer is optional for φ20/25/32 large bores to absorb violent high-speed impact. Suffix Z denotes built-in magnetic rings for direct installation of D-M9B, D-A93 and other position sensors; non-magnetic variants are available for magnetic-sensitive working conditions. Optional extension lock P and retraction lock R can lock the piston at designated positions. Three-side mounting (bottom, top, side) supports diverse compact mechanical layouts, widely deployed in precision picking, material transfer, positioning and light pressing processes for 3C electronics and general automation production lines.

SOLH CP96S tie rod profile cylinder complies with ISO15552 and VDMA24562 standards, fully interchangeable with original CP96S series. Designed with dual buffer system combining adjustable air cushion and rubber pad, it achieves low noise and mild impact under high-speed & high-frequency reciprocation at 50~1000mm/s. The built-in tie-rod aluminum barrel is 15% lighter than conventional tie rod cylinders with high rigidity and excellent offset load resistance. Variants include single rod standard type and CP96SD anti-torsion double rod model. Built-in magnetic ring optional for M9B/A93 sensors; high temperature and stainless steel piston rod versions available. Bore φ32~125mm, customized stroke up to 2000mm. Widely used on machine tools and heavy-duty packaging automation for global equipment replacement.

Switchgear Inter-Phase Barrier: Product Details and Applications The Switchgear Inter-Phase Barrier is a critical component designed to enhance safety and performance in electrical switchgear systems. This barrier effectively separates electrical phases within a switchgear assembly, preventing unintentional short circuits and ensuring reliable operation. Constructed from high-quality insulating materials, the inter-phase barrier is capable of withstanding high voltage and thermal stress, making it suitable for various demanding environments.
