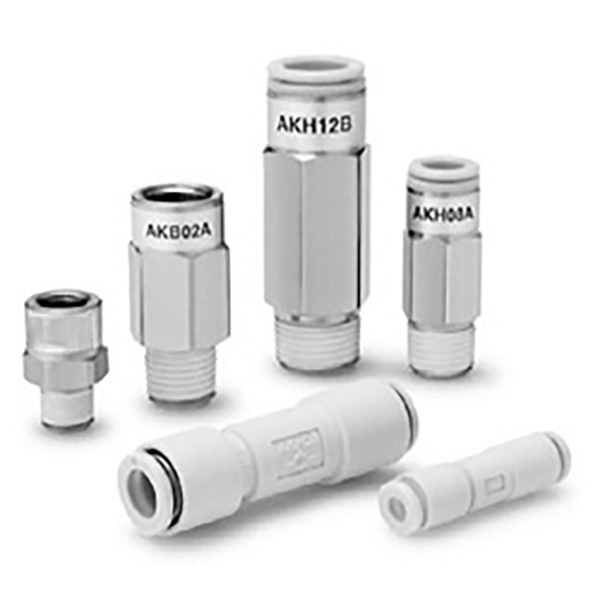

AKH / AKB Series Quick-Connect Check Valve

SOLH AKH / AKB Series Quick-Connect Check Valve (Sleeve Type)

Brand: SOLH by Richge Technology | Integrated One-Way Valve + Push-in Fitting

1. Product Overview

  AKH / AKB series is an integrated component combining check valve + quick push-in fitting, designed for backflow prevention, pressure holding and vacuum cut-off in pneumatic circuits. Compact size, fast installation and ultra-low cracking pressure.

  Core Difference Between AKH & AKB

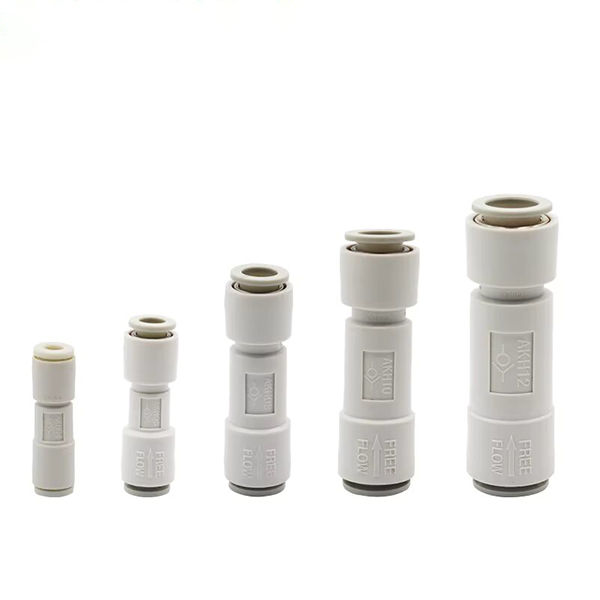

   AKH: Dual push-in port straight sleeve type, both sides for air tubing (Φ4 ~ Φ12).

   AKB: One male thread + one female thread sleeve type, for anti-backflow between threaded ports

• AKB‑A: Flow direction → Male thread → Female thread

• AKB‑B: Flow direction → Female thread → Male thread

2. Core Features

  1. Ultra-low cracking pressure: 0.005 MPa (5 kPa), suitable for vacuum systems (-100 kPa ~ 1 MPa)

  2. High flow rate: Large effective cross-sectional area with low flow resistance

  3. Push-in quick fitting: Compatible with PU / PA nylon / soft nylon tube; audible “click” once tubing locks in place

     • Material: Valve body PBT / zinc alloy; fitting nickel-plated brass; gripping jaws SUS304 stainless steel

     • Max working pressure: 1.5 MPa

     • Operating temperature: -5℃ ~ +60℃ (no icing condition)

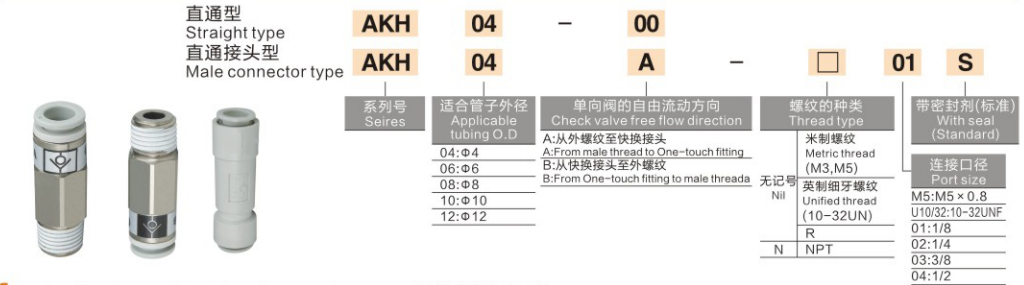

3. Model Code Definition & Examples

  1. AKH (Dual Push-in Type)

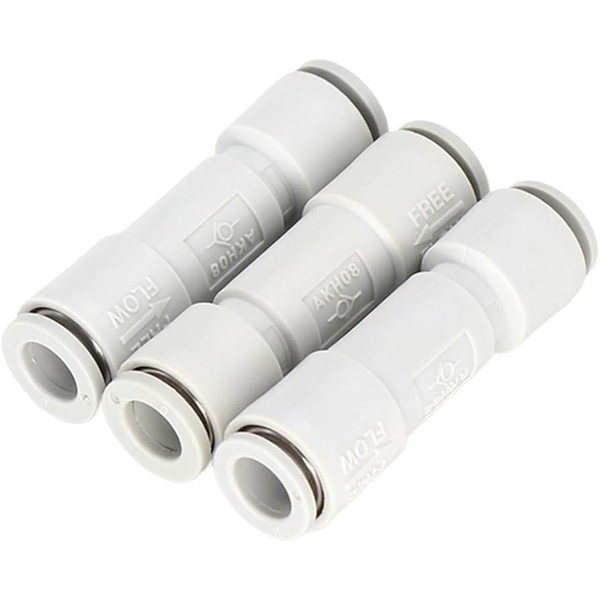

      • AKH06‑00: AKH series, Φ6 tube, dual push-in ports (-00 = no thread)

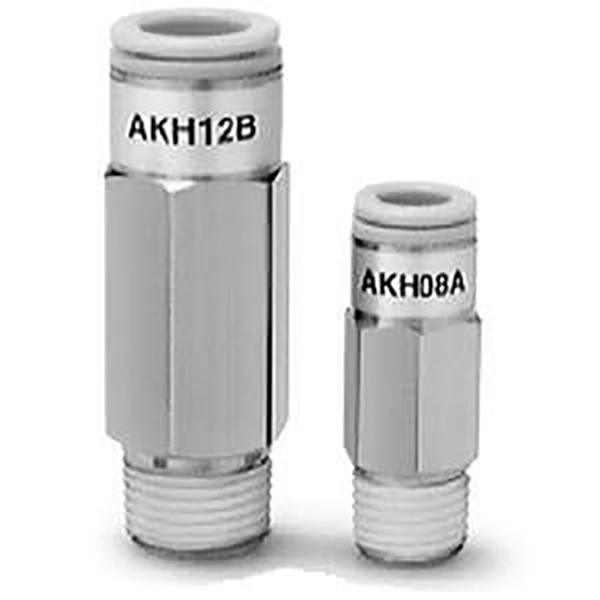

      • AKH08A‑02S: AKH series, Φ8 tube, R1/4 male thread, pre-applied thread sealant S

  2. AKB (Threaded Sleeve Type)

     • AKB02A‑02S: AKB series, R1/4 thread, Type A flow direction (male → female), pre-coating sealant S

4. Standard Specifications

  1. AKH – Dual Push-in Check Valve

  2. AKB – Threaded Sleeve Check Valve

5. Typical Applications

     • Cylinder pressure holding: Prevent load sinking or drifting

     •. Vacuum circuit: Avoid vacuum leakage (ideal for low cracking pressure)

     •. Dual pump interlock: Protect low-pressure pump from high-pressure reverse flow

     • Branch circuit anti-backflow: Independent pressure retention for multiple actuators

6. Comparison with Other Check Valves

     • AKH / AKB: Integrated quick push-in / sleeve design, compact & fast mounting, direct tubing connection

     • AK2000 / AK4000: Thread pipe type, higher flow capacity, without push-in ports

     • AKP: With residual pressure relief, dedicated for safety pneumatic circuits
