SDA Series Ultra-Thin Compact Pneumatic Cylinder

Brand: SOLH by Richge Technology

Product Overview

     SOLH SDA series square ultra-thin compact cylinder, classic economical compact actuator. Body length only 1/2~1/3 of standard tie rod cylinder. Mounting dimension interchangeable with Airtac ACQ and SMC CQ2 series. Suitable for short-stroke pushing, clamping and positioning under limited installation space, widely used in 3C automation, packaging machinery and fixture equipment.

Structure & Main Features

     -- Ultra-thin square aluminum body, support embedded installation to save space;

     -- Hard anodized barrel, chrome plated piston rod, wear-resistant & anti-corrosion;

     -- Full variants: double acting, single spring return, twin rod, adjustable stroke, magnet equipped version;

     -- Built-in rubber bumpers on both ends for shock absorption & noise reduction;

     -- Low friction bidirectional seal with grease storage, oil-free long service life;

     -- Surrounding sensor grooves for flexible magnetic auto switch installation.

Model Coding Rule

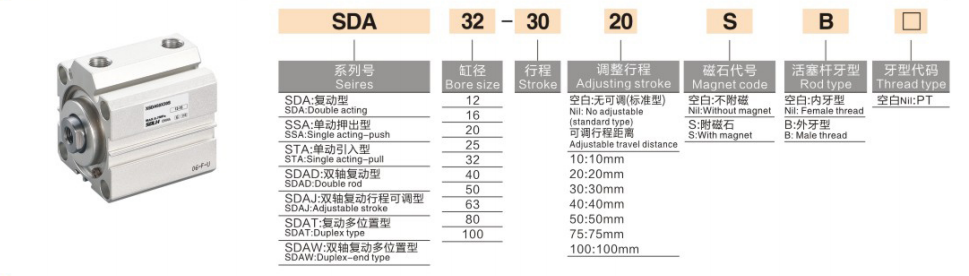

   1. Example: SDA20-50-S-B

     -- SDA: Series name; SSA=spring extend; STA=spring retract; SDAD=twin rod; SDAJ=adjustable stroke

     -- 20: Bore size:12/16/20/25/32/40/50/63/80/100 mm

     -- 50: Stroke length 5~200mm

     -- -S: Built-in magnet ring

     -- -B: External thread piston rod; blank=internal thread

Technical Specifications

Theoretical Thrust & Pull Force @0.5MPa (Single Rod)

One Sentence Summary

     SOLH SDA economical ultra-thin compact pneumatic cylinder with abundant variants, interchangeable with ACQ & CQ2, ideal low-cost short-stroke actuator for space-saving automatic clamping and pushing applications.
