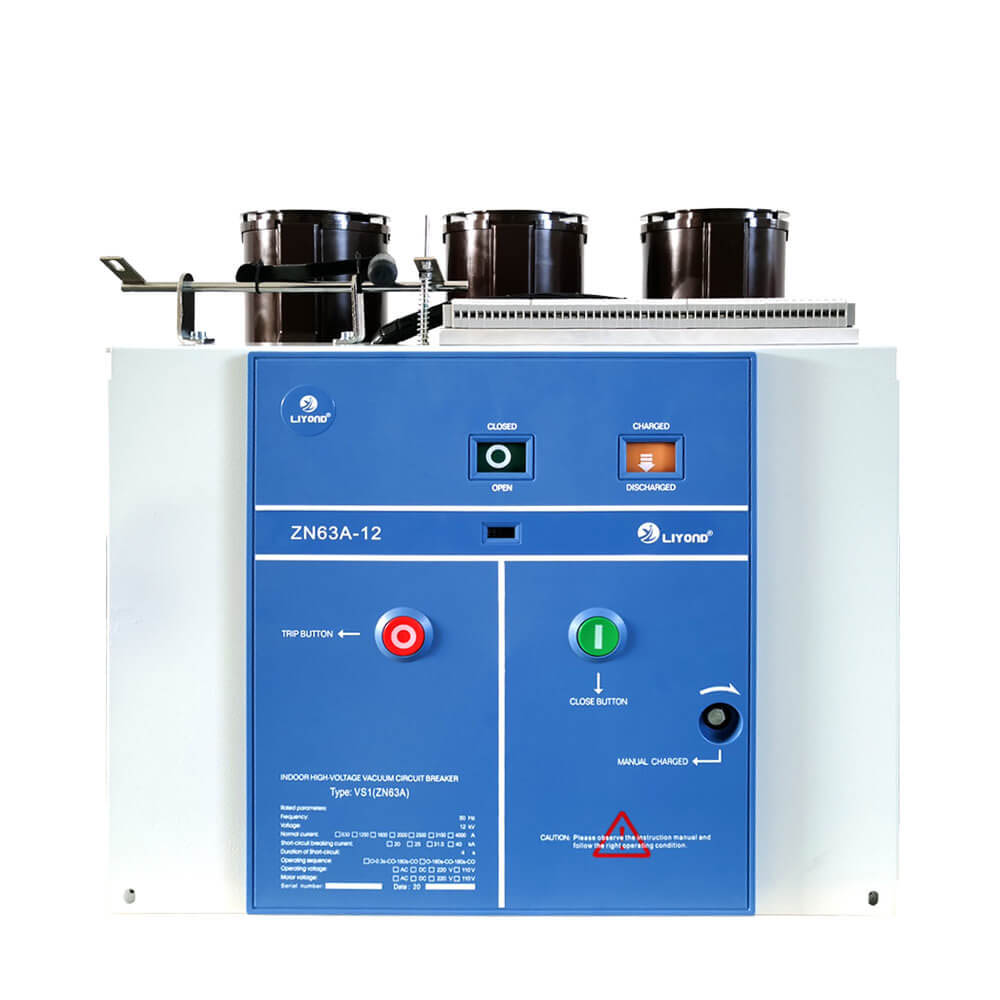

VS1(ZN63A)-12 Model indoor high voltage epoxy resin vacuum interrupter poles applies to power system of rated voltage 12kv as a protective and control unit for power grid equipment and industrial power equipment It can equip with KYN28(GZS1), XGN, GG-1A and other types of switchgear panels. Related products: isolated handcart, fuse handcart and voltage transformer handcart
VS1(ZN63A)-12series of indoor vacuum breaker with common insulated cylinder is three-phrase A.C. 50 Hz indoor power distribution equipment with the rated voltage of 12KV. It’ s used for protecting controlling the electrical equipment in the fields of industry and mining enterprise, power plants and substation.This type vacuum circuit breaker conforms to national standards and the stipulation of IEC standard, the capability reaches grade of M2-E2-C2.
The product adopts composite insulation way,spring charged operation and rod push mechanism,with the characteristics of small volume, compact design and reliable operation. It can easily match with the switchgear and meet the “Five Preventions” demands.
This kind of vacuum circuit breaker can be used for many kinds of switchgear like KYN28(GZS1). This series of products include:VCB truck isolation truck and Fuse truck, etc.
Structural Features
1.This series of VCB is used Integrated design for operating mechanism and VCB body with reasonable, beautiful and compact arrangement.
2.This series of VCB adapted vertical insulation house against Impact due to different weather, it can effectively prevent VIS against damage by exterior factors.

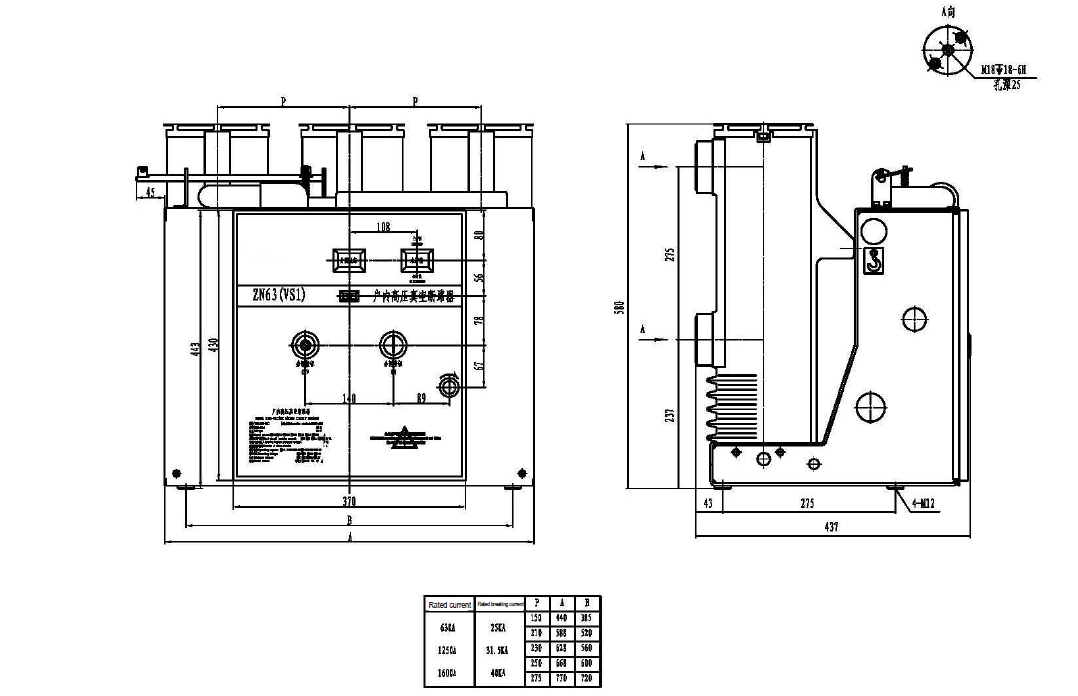

3.The two different installation unit of Fixed type and withdrawable type can meet the different requirements for different switchgear.
4.The arc extinguishing chamber and operating mechanism of the circuit breaker are arranged in a front-to-back configuration and connected as a whole through a transmission mechanism.
5.The insulating cylinder is formed using the APG (Automatic Pressure Gelation) new process.
6.Inner skirts and reinforcing ribs are added to the insulating cylinder, which enhances the insulation level and the ability to withstand dynamicstable currents.

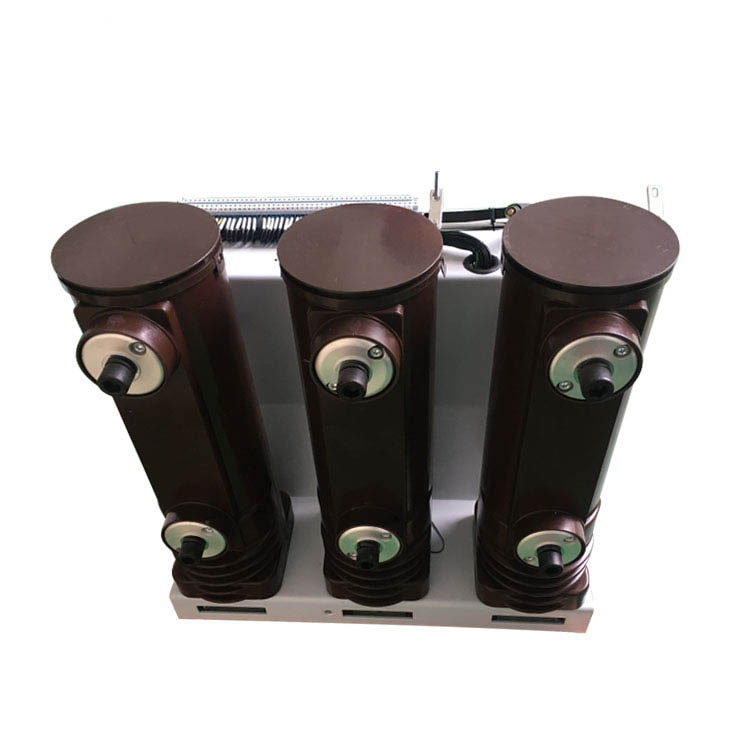

7.The vacuum arc extinguishing chamber is installed inside the insulating cylinder, effectively preventing damage and surface contamination caused by foreign objects, while reducing the overall size of the circuit breaker.

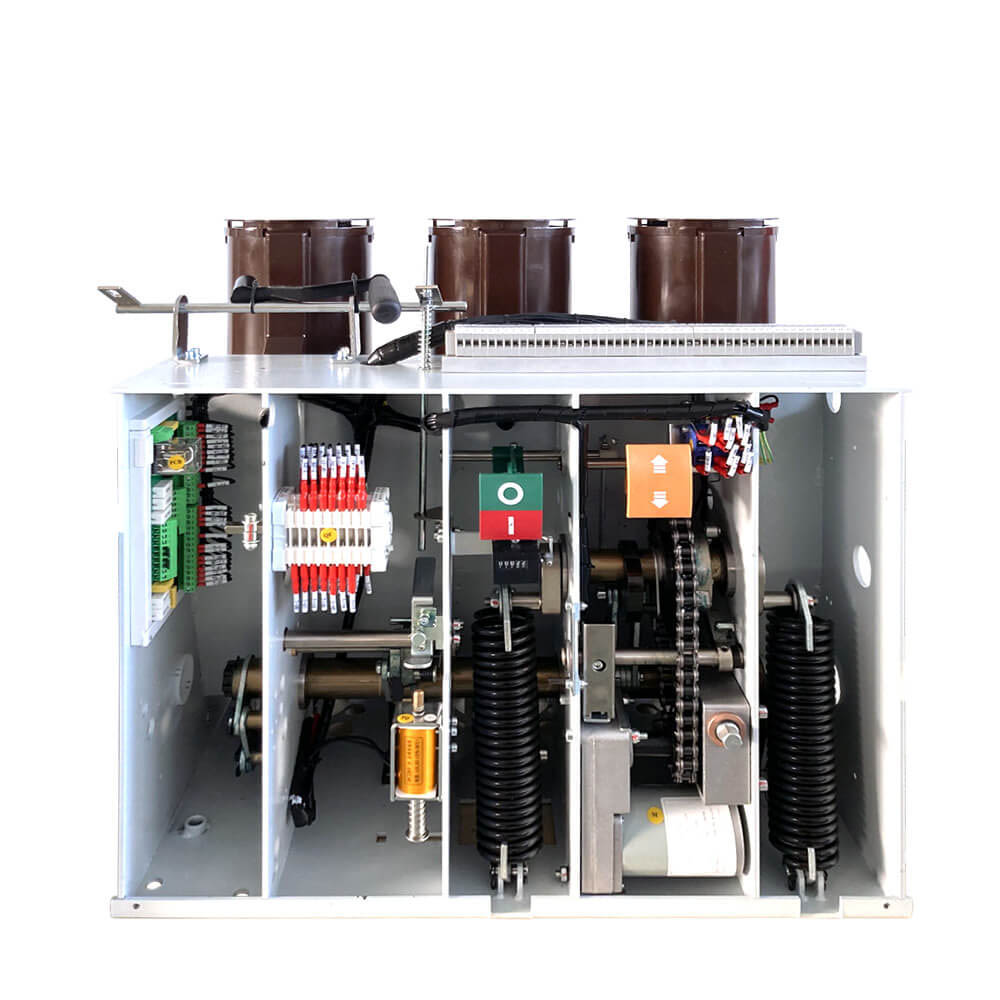

8.The operating mechanism adopts a spring-stored energy design, providing both electric and manual energy storage functions.
9.An advanced and rational buffer device ensures that there is no rebound during disconnection, reducing disconnection impact and vibration.
10No adjustment needed and has minimal maintenance or maintenance-free operation.
11.The mechanical lifespan can reach up to 20,000 operations
 |
 |
 |
1. Ambient temperature: -10℃–+40℃
2. Ambient humidity: the average humidity of a day should be no more than 95%; the average humidity of a month should be no more than 90%;
3. Earthquake intensity: not exceed 8 degrees
4. Saturated vapor pressure: average pressure of a day should be no more than2. 2kPa,the average pressure of a month should be no more than 1.8kPa;
5.The height above sea level: less than 1000m;(not including special requirements)
6.1t should be installed in the places without fire, explosion, serious filth, chemical corrosion and violent VS1 ration.
Q: Could I have prices of your products?
A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.
Q: What is your Trade Terms?
A: We accept EXW, FOB, CIF, FCA, etc.
Q: What is your payment method?
A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
