C-type Self-locking Quick Coupler

C-type Self-locking Quick Coupler | Pneumatic C Style Quick Connect Fitting

Brand: SOLH by Richge Technology | Universal Pneumatic C Type Quick Coupler, Interchangeable with SMC & AirTAC

1. Product Overview

     C-type self-locking quick coupler is standard steel-ball self-locking fitting widely used in pneumatic industry. Built-in spring and steel ball realize automatic locking upon insertion, and release by sliding sleeve backward. No tools required, single-hand operation. It consists of female coupler (with sliding sleeve) and male plug for paired assembly. Widely applied in compressed air pipelines, pneumatic tools and automated air supply circuits, also matched with vacuum generators and full pneumatic piping systems.

2. Core Features

     • Steel-ball self-locking structure: Audible "click" when male plug fully inserted and locked; cannot separate under pressure. Pull back sliding sleeve for unlocking and disconnection.

     • Dual-layer NBR seal rings: Excellent air tightness, resistant to compressed air and minor lubricating oil, low air leakage rate.

     • Body Material: Nickel-plated steel (metal standard version) / high-toughness plastic (lightweight option). Anti-rust and wear-resistant for frequent plug & pull in workshop.

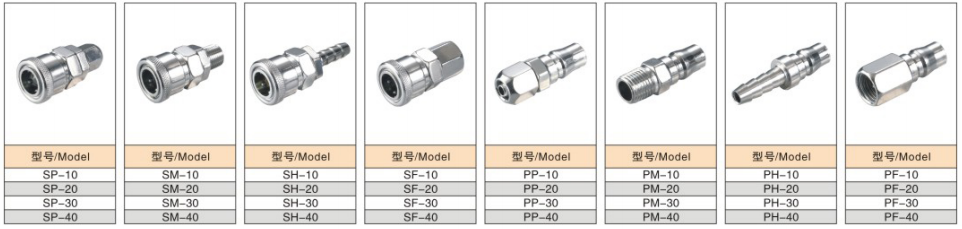

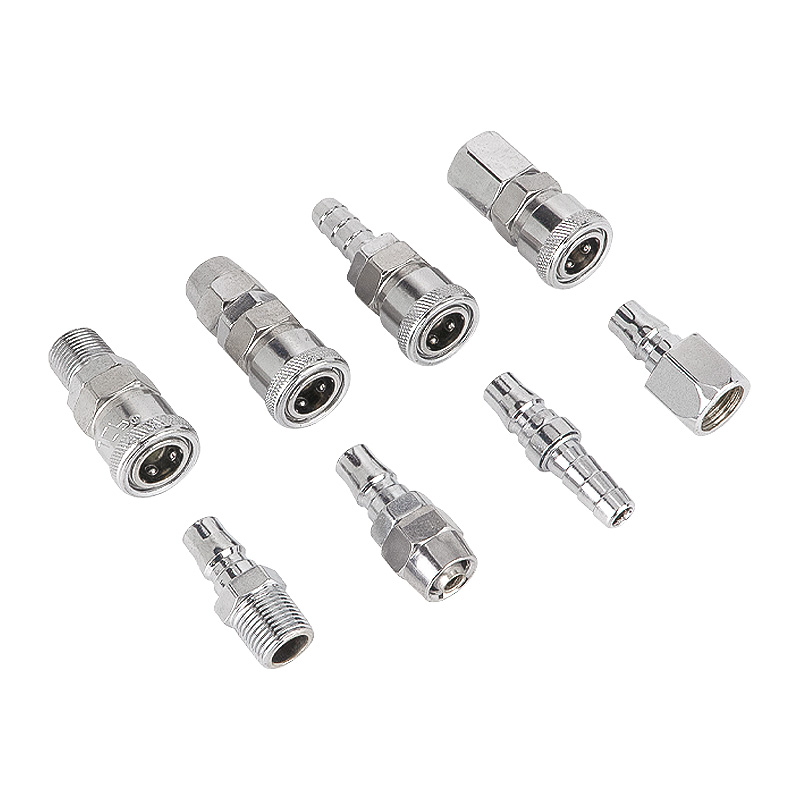

     • Full size range: PP (tube female), PF (female thread), PH (male thread); SP (tube male), SF (female thread), SM (male thread).

     • Smooth flow path, low pressure drop. Compatible with PU hose and nylon tube. Standard interface for universal cross-brand interchangeability.

3. Model Code Definition

  Example: PP20 = C-type self-locking female coupler for Φ5×8 PU tube; SM30 = C-type male plug with external thread for Φ6.5×10 pipeline.

4. Key Technical Specifications

5. Common Model Specification Table

6. Application Scenarios

     • Air compressor air pipelines, air blow guns, air screwdrivers, grinders and other pneumatic hand tools

     • Air source distribution on automated production lines, air piping connection matched with vacuum generators

     • Equipment maintenance, mobile pneumatic workstation, occasions requiring frequent pipeline assembly & disassembly

7. Operation Notes

  1. Only for compressed air. Not suitable for high-pressure hydraulic fluid or strong corrosive media.

  2. Depressurize before plugging/unplugging. Forcible disconnection under pressure may damage steel balls and sealing rings.

  3. Regularly inspect O-ring wear; replace seals immediately if air leakage occurs.

  4. PTFE tape is recommended for threaded installation. Do not over-tighten to avoid thread stripping.
