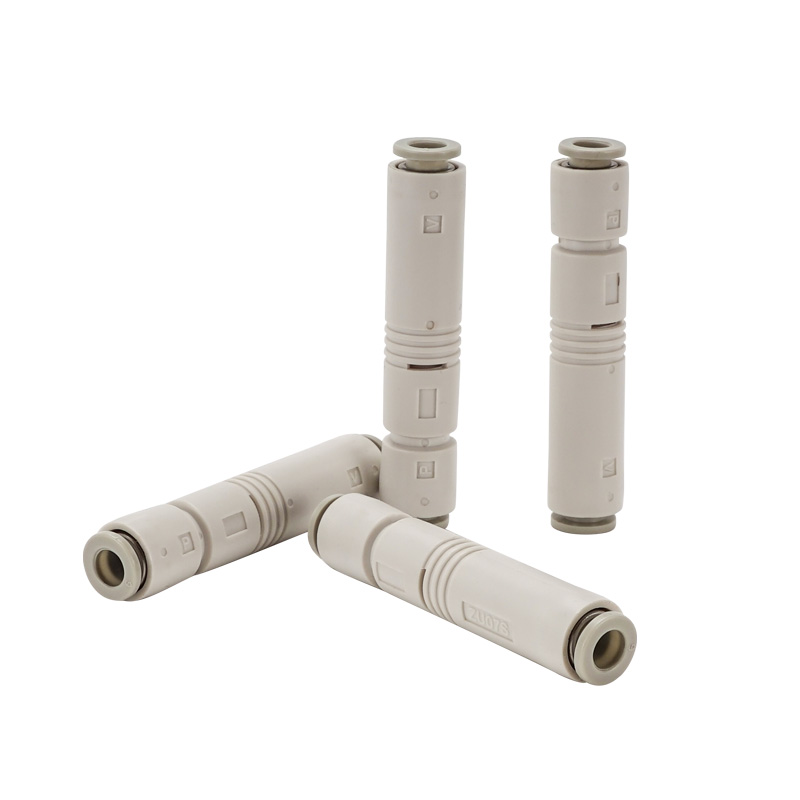

ZU Series Inline Straight Vacuum Ejector

ZU Series Inline Straight Vacuum Ejector | SOLH Straight Tube Insert Type Vacuum Generator

Brand: SOLH by Richge Technology | SMC Standard Interchangeable Inline Vacuum Ejector

1. Product Overview

     ZU series is inline straight tube vacuum ejector. The vacuum port and air supply port are arranged coaxially in straight line. It features smallest size, ultra-light weight and space-saving installation. Suitable for distributed suction cups, moving components and narrow confined space.

2. Core Structure & Working Principle

     • Structure: SUP supply port → nozzle → diffuser section → VAC vacuum port → EXH exhaust port, integrally molded resin body.

     • Principle: High-speed jet of compressed air through nozzle creates negative pressure at vacuum port for vacuum adsorption; exhaust with built-in silencing structure.

     • Material: Main body: engineering PBT resin; one-touch fitting: POM. Copper-free & fluorine-free, RoHS compliant.

     • Weight: ZU05 ≈6.5g, ZU07≈7.0g; New ZU□A improved version only 3.9g.

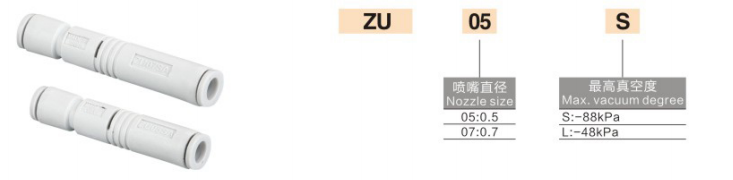

3. Model Coding Rule (SMC Standard)

  Old Version (ZU05 / ZU07)

  Format: ZU + nozzle bore + type(S/L)

     • ZU05S: Φ0.5 nozzle, high vacuum type (-84kPa)

     • ZU05L: Φ0.5 nozzle, high flow type (-48kPa)

     • ZU07S: Φ0.7 nozzle, high vacuum type

     • ZU07L: Φ0.7 nozzle, high flow type

  New Improved Version (ZU□A, shorter & lighter)

  Format: ZU + 03/04/05/07 + S/L + A

     • 03=Φ0.3, 04=Φ0.4, 05=Φ0.5, 07=Φ0.7

     • S = High vacuum (-87~-90kPa); L = High flow (-48kPa)

     • A = upgraded version: length shortened by 11%, weight reduced by 40%

4. Key Parameter Table @0.45MPa Standard Supply Pressure

5. S High Vacuum VS L High Flow

     • S High Vacuum Type: Ultimate vacuum -84~-90kPa. For small suction cups, thin, well-sealed workpieces requiring strong adsorption force, such as electronic components and thin films.

     • L High Flow Type: Ultimate vacuum -48kPa with larger suction flow. Suitable for porous/rough surface workpieces, large suction cups, high leakage and fast response demand, e.g. carton and wood board.

6. Installation & Piping Guide

  1. Installation: Mountable in any orientation, no fixing bracket required; can be directly inserted in the middle of air pipeline.

  2. Piping

￮ SUP supply port: connect Φ6 air tube (standard)

￮ VAC vacuum port: connect suction cup / vacuum pipeline

￮ EXH exhaust port: open to atmosphere, do not block

  3. Pressure: Standard 0.45MPa, working range 0.1~0.6MPa

  4. Temperature: 5~50℃ (no icing in air source)

7. Typical Application Scenarios

     • 3C electronics, semiconductor, distributed adsorption with small suction cups

     • Automation production line, moving parts / robot end effector

     • Narrow installation space, lightweight & high-speed response applications

     • Handling thin paper, thin film, tiny parts and electronic chips

8. Selection Comparison: ZU vs ZB vs ZL
