ZL212 Series Multi‑Stage Vacuum Ejector

SOLIH ZL212 multi stage vacuum ejector, drop in upgrade for ZL112 with SMC compatible mounting dimension. Higher vacuum 90~-95 kPa and +30% suction flow, 40% energy saving via multi venturi design. Modular options: silencer/port exhaust, mechanical gauge or digital vacuum pressure switch (NPN/PNP), supply+release valve. Ideal for glass, sheet metal, porous material and high leakage large suction cup robot handling.

Send Inquiry

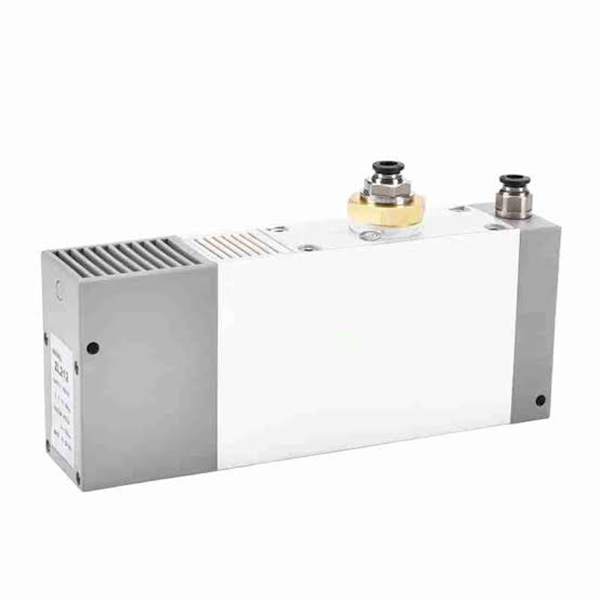

Product Description

ZL212 Series Multi‑Stage Vacuum Ejector | High‑Flow High‑Vacuum Generator Upgrade Model for ZL112

Brand: SOLH by Richge Technology | Drop‑in Replacement Compatible with SMC ZL212 Installation Dimension

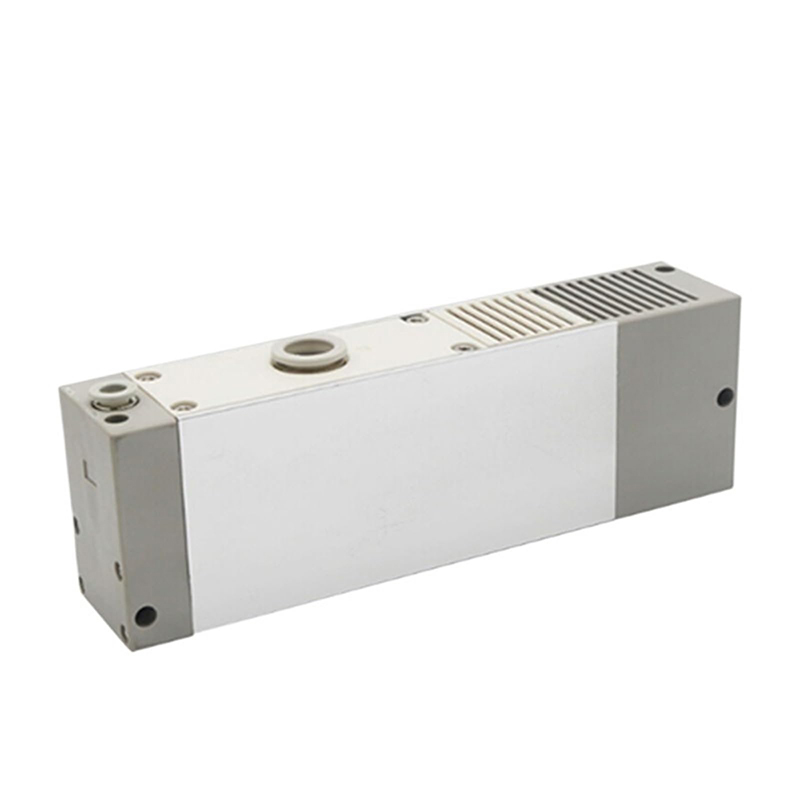

1. Product Overview & General Specifications

ZL212 series is upgraded large‑flow multi‑stage vacuum ejector derived from ZL112 series. Equipped with larger nozzle orifice, it delivers higher vacuum level and enhanced suction flow. Specially designed for large suction cups, porous workpieces and high‑leakage working conditions. Widely adopted as main vacuum unit for robotic manipulators, sheet metal and glass material handling applications.

Parameter Item	Specification
Product Position	Advanced upgraded model of ZL112, larger nozzle for higher vacuum & higher flow
Applicable Fluid	Compressed Air
Supply Air Pressure	0.3~0.7 MPa, optimal operating range: 0.45~0.5 MPa
Vacuum Degree	-90 ~ -95 kPa
Suction Flow	More than 30% higher than ZL112, suitable for porous workpieces & large suction cups
Air Consumption	Multi‑stage diffuser design, over 40% energy saving versus single‑stage vacuum ejector
Ambient Temperature Range	-5℃ ~ 60℃
Port Connection	Standard one‑touch fitting / thread port, fully interchangeable with SMC ZL212 mounting dimension

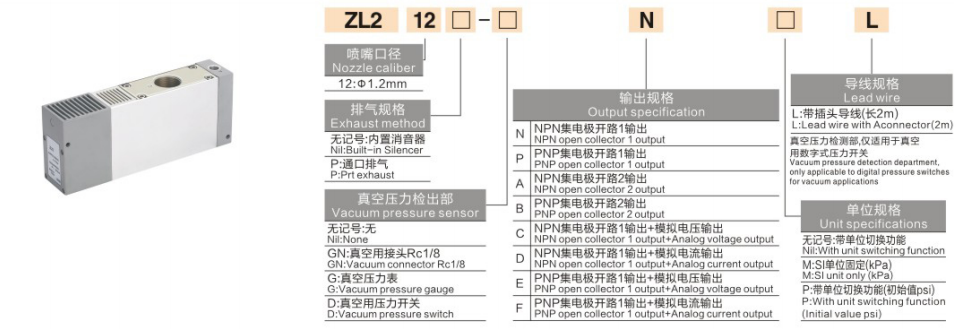

2. Model Naming Rule

Basic format: ZL212‑□‑□‑□‑□

With‑valve extended format: ZL212‑□‑K1/K2 5 M Z‑□‑DDNL

Position	Code	Definition & Detailed Description
1‑4	ZL212	Series code for multi‑stage vacuum ejector, larger nozzle bore compared with ZL112
5th	No mark	Silencer exhaust, standard noise reduction for general workshop
	P	Port exhaust, for high‑flow or centralized exhaust installation
6th Vacuum detection unit	No mark	Without vacuum detection module
	GN	Rc1/8 vacuum detecting port for external pressure gauge connection
	G	Built‑in Y40Z mechanical vacuum pressure gauge
	D	Built‑in digital vacuum pressure switch
7th Output specification	N	NPN open‑collector 1‑channel output
	P	PNP open‑collector 1‑channel output
	A/B/C/D/E/F	Multi‑channel output / analog signal output and other extended functions
8th Unit & cable	L	2‑meter pre‑assembled plug‑type cable
	M / P	Fixed unit / switchable unit (kPa / psi optional)

3. Basic Model Configuration Explanation

Model	Core Configuration	Typical Application
ZL212	Standard base unit, no gauge, no built‑in valve	General high‑flow application, external solenoid valve required
ZL212‑GN	Rc1/8 external vacuum gauge interface	Applications requiring externally connected vacuum gauge for reading
ZL212‑D	Built‑in digital vacuum pressure switch	Digital vacuum reading & electric signal feedback for PLC control
ZL212‑P	Port‑type exhaust version without built‑in silencer	High‑flow centralized exhaust scenarios, noise‑insensitive environment
ZL212‑G	Equipped with Y40Z mechanical vacuum gauge	Cost‑effective local mechanical vacuum‑level indication

4. ZL112 VS ZL212 Key Selection Comparison

Comparison Item	ZL112	ZL212
Nozzle Bore	Φ1.2 mm	Larger‑size nozzle
Vacuum Degree	-88 ~ -92 kPa	-90 ~ -95 kPa, higher vacuum performance
Suction Flow	Medium flow rate	+30% higher suction flow
Suitable Working Condition	Common suction cups, small‑medium workpieces	Large suction cup, porous workpiece, sheet & glass, high‑leakage loops
Base‑model Price Reference	Starting from 245	Starting from 478, approx. 20% higher under identical configuration

5. Main Product Advantages

• Enhanced multi‑stage venturi performance: Promoted vacuum level and suction flow, excellent adaptability for high‑leakage pneumatic vacuum circuits.

• Fully integrated modular options: Solenoid supply / release valve, silencer, mechanical / digital vacuum gauge and pressure switch are available for one‑piece configuration, minimizing extra auxiliary parts.

• Low‑noise construction: Built‑in silencer, noise level ≤70 dB, friendly for ordinary factory workshop environment.

• Maintenance‑free stable operation: Zero moving mechanical components, long service life for 24‑hours continuous production.

• Compatible mounting footprint: Interchangeable installation dimension with ZL112, supports direct field upgrade replacement.

6. Quick Selection Guidance

• Small‑medium workpiece & single suction‑cup application: Choose ZL112 for better cost‑performance.

• Large suction cup, porous material, sheet glass or high‑leakage vacuum loop: Adopt ZL212 for sufficient vacuum and flow capacity.

• Automatic cycle control: Select K1 dual‑valve version (supply + release valve), match with vacuum pressure switch for closed‑loop signal feedback.

• On‑site visual monitoring & commissioning: Pick D digital pressure‑switch variant for direct digital vacuum‑value reading.

7. Typical Application Scenarios

• Robotic handling for glass, sheet metal, wood board and large‑size plate components

• Porous workpiece adsorption: carton, foam, textile and permeable material picking

• High‑leakage vacuum circuit for large‑area multi‑suction‑cup fixture

• Automation assembly line, injection‑molding robot demolding and material transfer

• Logistics equipment large‑size goods vacuum grabbing station
