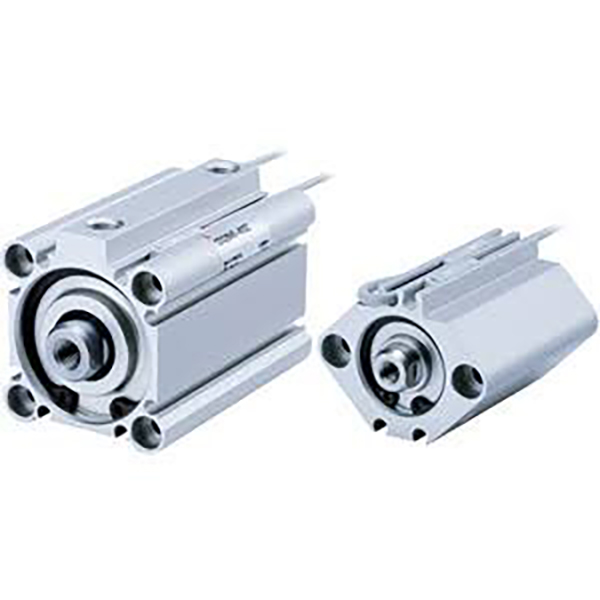

CQ2 Series Compact Thin Pneumatic Cylinder

Brand: SOLH by Richge Technology

Product Overview

     SOLH CQ2 series square compact thin cylinder, fully interchangeable with original CQ2 standard. Ultra-short body, length reduced by 50% vs standard tie rod cylinder. Complete bore range φ4~200mm, widely used for clamping, pushing and positioning in packaging, automotive, electronics and general automation.

Structure & Main Features

     -- Square ultra-thin aluminum body, hard anodized surface, high rigidity;

     -- Chrome plated piston rod, lightweight and durable;

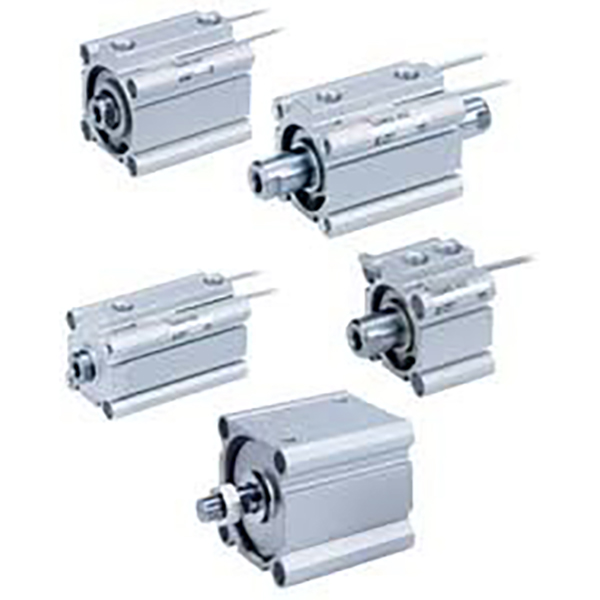

     -- Multiple variants: single rod, twin rod, non-rotating rod, air cushion, ultra-short stroke version;

     -- CDQ2 built-in magnet for position detection; multi-side sensor grooves, switches do not protrude;

     -- Standard rubber bumper, optional air cushion for high speed operation;

     -- Low friction seal with oil reservoir, oil-free operation, service life ≥5 million cycles.

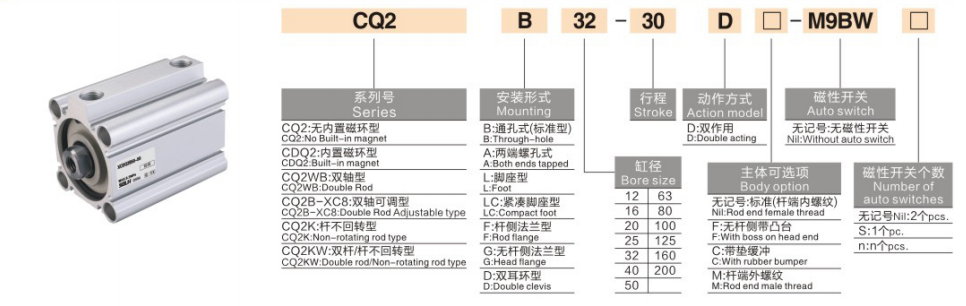

Model Coding Rule

   1. Example: CDQ2B25-50Z-M9B

     -- C: Built-in magnet (CDQ2); no C = non-magnetic CQ2

     -- DQ2: Series name

     -- B=single rod; W=twin rod; K=non-rotating rod; KW=twin anti-rotation rod

     -- 25: Bore size 4~200 mm

     -- 50: Stroke length

     -- Z: New lightweight standard structure

     -- -C: Air cushion option

     -- M9B: Magnetic switch

Technical Specifications

Theoretical Thrust & Pull Force @0.5MPa (Single Rod)

One Sentence Summary

     SOLH CQ2 universal compact thin pneumatic cylinder covers full bore φ4~200mm, rich structural variants with optional air cushion and anti-rotation rod, the most widely used short-stroke actuator for space-saving automation equipment.
