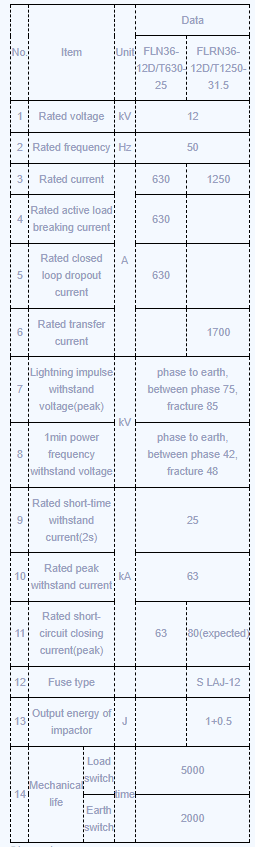

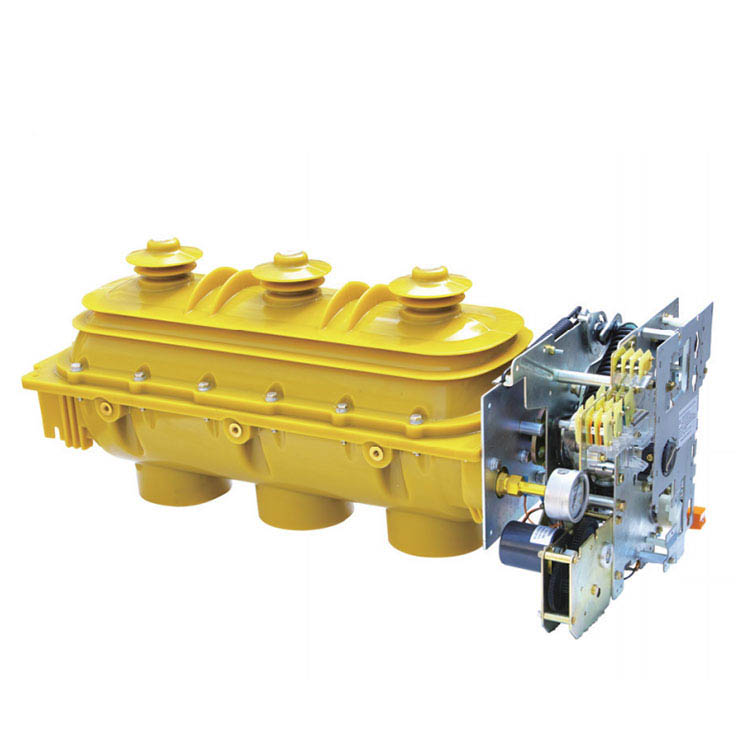

FLN36-12D/T630-20 load switch uses SF6 gas as insulation and arc extinguishing medium; has three positions: closing, opening, and grounding; dynamic and static contacts have double-break isolation, higher reliability; extended electrical life (E3 level, rated current 100 times); extended mechanical life (M2 level, 5000 times); rated thermal stability current (4s) 20KA; closing and opening positions are electric or manual operation, and the grounding position is manual operation; the electric operation power supply is available in AC220V, AC110V, DC220V. DC110V, DC48V, DC24V; has electric and manual operation interlocking, and operation power supply polarity reverse connection protection function;
Its performance indicators fully comply with IEC420, 694, 129 and national standards GB3804-2004 “3.6kV-40.5kV high-voltage AC load switch”, GB1985-2004 “High-voltage AC disconnector and earthing switch”, GB/T11022-1999 “Common technical requirements for high-voltage switchgear and control equipment standards”, and are the main switch components of ring network cabinets.
1：FL(R)N36 indoor MV SF6 load switch is an indoor switchgear with rated voltage of 12kV, 24kV and 40.5kV, using SF6 gas as arc extinguishing and insulating medium, including three stations of closing, opening and grounding. It has the characteristics of small size, convenient installation and use, and strong applicability to the environment.
2：Combine FL(R)N36 indoor high-voltage SF6 load switch with other electrical components to realize control and protection functions. It can be used for the control and protection of industrial and mining enterprises, civil power supply and electrical equipment in secondary substations. Among them, the load switch-fuse combined electrical appliance matches the protection characteristics of the transformer, and is especially suitable for the ring network power supply unit.
3: Standard: IEC 60265-1,IEC 62271-105.
 |
1/Air temperature Maximum temperature: +40℃; Minimum temperature:-35℃
2/Humidity Monthly average humidity 95%; Daily average humidity 90% .
3/Altitude above sea level Maximum installation altitude: 2500m
4.Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
No frequent violent shake
Q1: Are you a manufacturer or a trader?
A1: We are a leading professional manufacturer.
Q2: How long is your delivery cycle?
A2: It depends on your product requirements and quantity. Generally, 5 to 10 working days are required for delivery
Q3: What is your after-sales service?
A3: We can answer users' questions solve their problems 24 hours a day, and provide comprehensive technical support for all our products promptly.
Q4: How do you solve quality problems?
A4: Please provide detailed photos of the quality problems. Our technical and quality inspection departments will analyze them. We will give a satisfactory solution within 2 days.
Q5: Do you accept customized services?
A5: We provide OEM/ODM services and can print your logo on the products. Our professional technical and quotation team can provide satisfactory projects according to your drawings and parameters.
