Sulfur hexafluoride circuit breaker is a new type of high voltage circuit breaker using SF6 gas as insulation medium and arc extinguishing medium. The pure SF6 gas is colorless, non-olfactory, non-flammable and non-toxic inert gas. It has good insulation and arc extinguishing performance. Sulphur hexafluoride circuit breakers use high pressure SF6 gases, forming high pressure airflow between the vents and contacts in the arc extinguishing chamber to blow out the arc, the pressure of SF6 gases blowing arc up to 1-1.5 MPa. Sulfur hexafluoride circuit breaker is small in size, has high insulation strength, good arc extinguishing performance, long maintenance period and can form a closed combination appliance.
Sulfur hexafluoride circuit breaker is a circuit breaker which uses sulphur hexafluoride(SF6) gas as an arc extinguishing medium and insulation medium. SF6 circuit breaker. The use of sulphur hexafluoride as an arc extinguishing medium in circuit breakers began in the early 1950s. Because of the excellent properties of this gas, the single breaker is significantly higher in voltage and current parameters than the compressed air circuit breaker and the low-fuel circuit breaker, and does not require high pressure and a considerable number of serial breaks. In the 1960s and 1970s, SF6 circuit breakers were widely used in ultra-high voltage power systems. In the early 1980s, 363KV single fault, 550 kV double fault and rated open current of 80, 100 kA SF6 circuit breaker have been developed

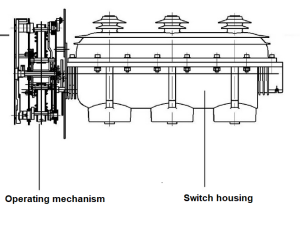

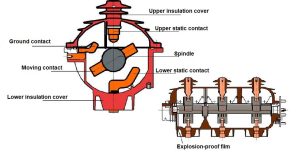

1.Load breaker switch adapts double fracture, rotary movable contact structure, with the following three kinds of operating states: Closing,opening,earthing.
2.Using SF6 gas as an arc extinguishing and insulating medium, the main circuit seals by the upper and lower housing pouring epoxy resin, the conductive function is unaffected by external influences.
3.Good safety performance. If internal arcing occurs, the housing has an internal structure weak point, it will be rushed to open, followed by the cabinet above the shutter release arc red open air overpressure stream-oriented outside the cabinet, ensure that the switch cabinet security checks.
4.Load breaker switch sets gates, opening, earthing switch three at one, filled with SF6 gas encapsulated in epoxy resin housing, three-position interlock,compact structure,high security and reliability.
5.Small size, light weight, maintenance-free, easy and safe to operate.
 |
 |
 |
 |
1. Altitude: ≤1000m
2. Ambient temperature at -30ºC to +40ºC, the daily average temperature should not more than 30ºC.
3. The daily average of relative humidity is less than 95%, the average monthly is less than 90%.
4. Working environment should be without steam, gas, chemical corrosive deposition, salt fog, dust, dirt and other dangerous explosive media, which will severely impact on insulation and conductivity of products.
5. Working environment should not be regular vibration or serious bumps.
Q1: Are you a manufacturer or a trader?
A1: We are a leading professional manufacturer.
Q2: How long is your delivery cycle?
A2: It depends on your product requirements and quantity. Generally, 5 to 10 working days are required for delivery
Q3: What is your after-sales service?
A3: We can answer users' questions solve their problems 24 hours a day, and provide comprehensive technical support for all our products promptly.
Q4: How do you solve quality problems?
A4: Please provide detailed photos of the quality problems. Our technical and quality inspection departments will analyze them. We will give a satisfactory solution within 2 days.
Q5: Do you accept customized services?
A5: We provide OEM/ODM services and can print your logo on the products. Our professional technical and quotation team can provide satisfactory projects according to your drawings and parameters.
