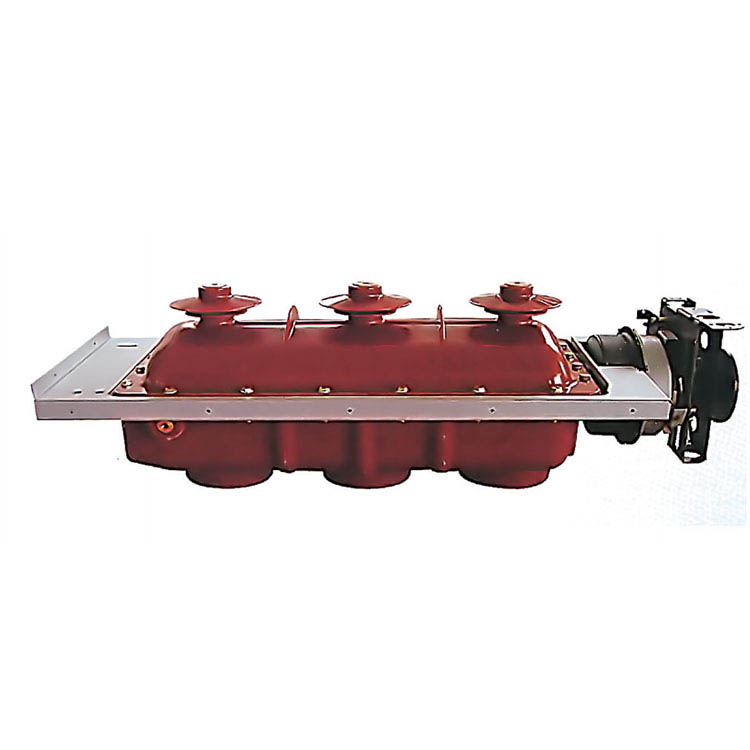

FLN48-12 load break switch use SF6 gas as arc extinguishing and insulating medium. There are three work stations: opening, closing and grounding in the switch. It has small volume, installing easy-to -use, strong environmental adaptabiliy and other characterist.. It is also for the control and protection of substation and equipments; making and breaking short-circuit current under various operating status of electric network
and its performance indicators meet the national standard GB/T3804-2017 "3.6kV-40.5kV high-voltage AC load switch", which is the main switching element of the ring main unit.
To broaden the future, Vacuum Interrupter 2500A, Lightning Arrester, Vacuum Circuit Breaker Vcb will never forget our original aspiration, and we will strive unremittingly, and move towards new stage! Our employees have a say in the operation of the enterprise, which makes them motivated to work harder, and the communication between employees and management is also very convenient. Our company through the implementation of appropriate customer retention strategy, constantly strengthen customer relationship, continuous willingness, and ultimately establish customer loyalty, so as to achieve long-term stable customer repeat purchase. We always insist on co-innovating products, and jointly developing markets with various brand enterprises. We adhere to the development concept of 'technology-based, quality first', and will provide customers with better products and services through continuous improvement, innovation and absorption of new technologies.
Our exquisite craftsmanship is the guarantee of providing high quality and high technology Fln48-12 Type High Voltage Sf6 Load Break Switch of Gis Switchgear Indoor to our customers. The courage to challenge, tolerant and open corporate culture is implemented in all aspects of our business operations and passed on to our customers, which injects energy into us to truly become a good company. Through more than 8 years of business, we have accumulated rich experience and advanced technologies in the production of our products.
The load switch is a collection of brake, opening, grounding as one of the multi-functional medium voltage switchgear, in a fully sealed, with a reinforced structure of epoxy resin shell filled with 0.05MPa SF6 gas, with the least parts to achieve the above three functions, to ensure the quality of the product, improve the reliability. It is maintenance-free and can operate safely for more than 20 years under normal conditions.

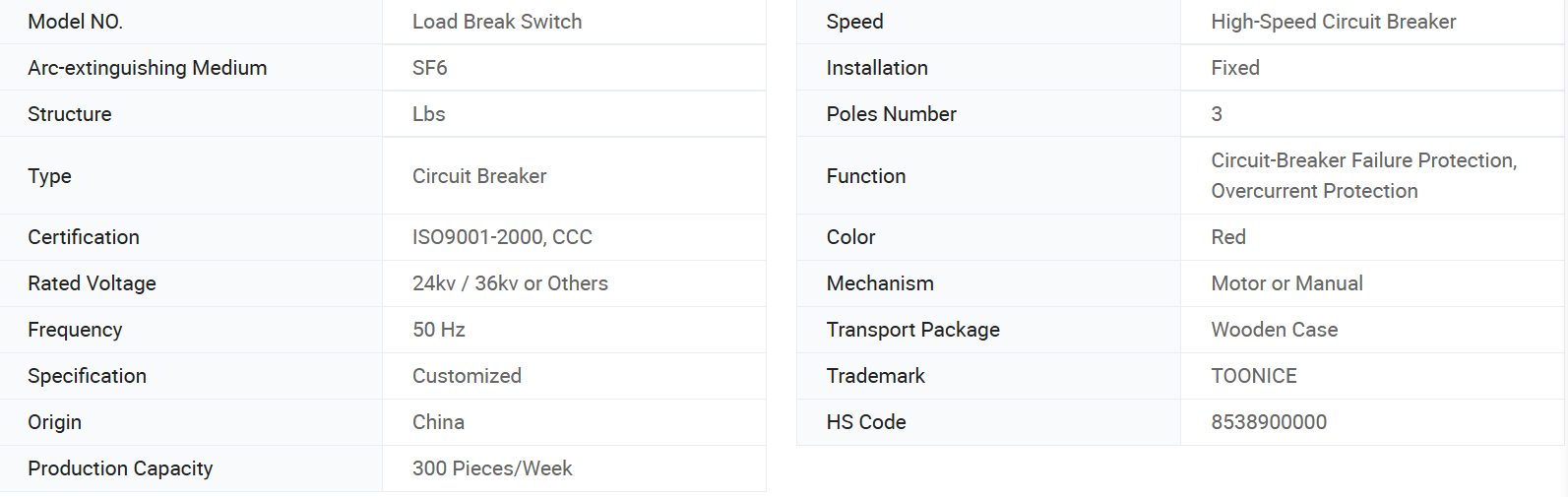

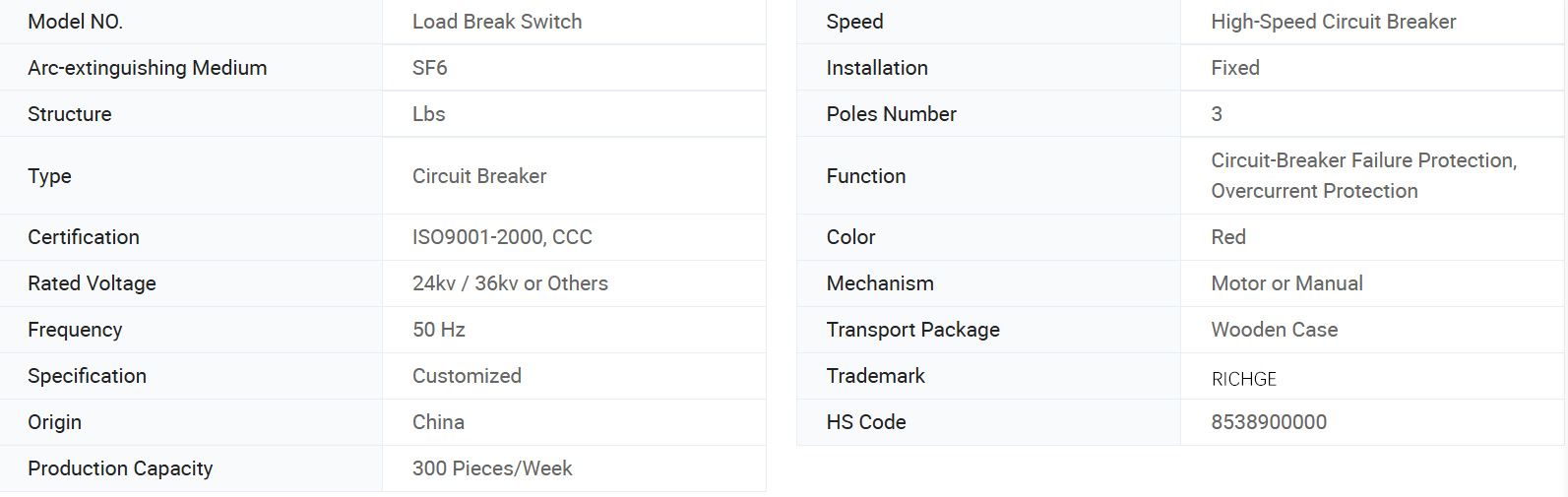

Basic Info.
Technical Parameters of FLN48-12D Type Indoor HV SF6 Load Break
Switch
Rated voltage: 12kV.
Rated current: 630A .
Rated frequence:AC50HZ.
1.Easy operation and installation
2.Connection combination is simple and convenient
3.Insulation and sealed structure,
4.Reliable interlock, compact design SF6 G

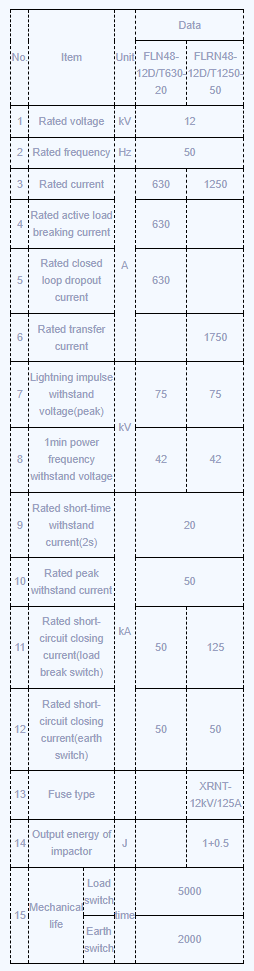

Technical Parameters

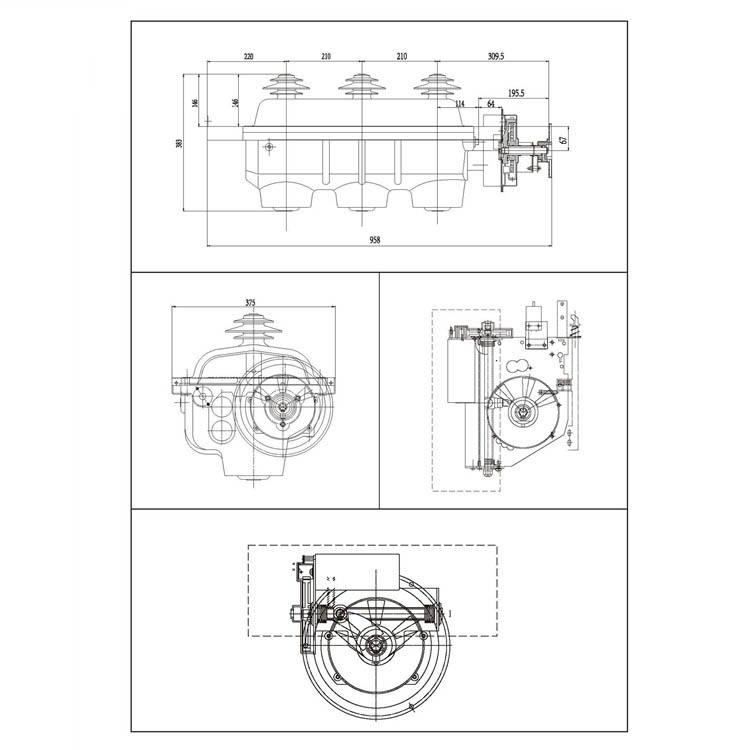

Drawing
FEATURES
1 Ambient air temperature: -25°C~ +40°C
2 Altitude: ≤1000m
3 No operation in such places as subject to dust, smog, corrosive/flammable gas, vapor and salt pollution.
4 Relative humidity: Daily average ≤ 95%
Monthly average ≤ 90%
5 Water vapor pressure: Daily average ≤2.2kPa
Monthly average ≤1.8kPa
6 The external shocking and earthquake from the switchgear and control equipment could be neglected.
7 The amplitude of electromagnetic interference in the second system ≤1.6kV
Note: Customized products for other special working conditions are available on your requirements.
FAQ
Q1: Is OEM/ODM available?
A1: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q2: What's your MOQ?
A2: One Set.
Q3: How is the delivery time?
A3: It depends your order quantity and it normally takes about 15-20 days.
Q4: How do you control the quality?
A4: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.
For inquiries about low voltage switchgear, high voltage insulators, high voltage earthing switch or price list, please leave your email to us and we will be in touch within 24 hours.
