FLN36-40.5KV Indoor HV SF6 Load Break Switch/LBS sf6
  • FLN36-40.5KV Indoor HV SF6 Load Break Switch/LBS sf6FLN36-40.5KV Indoor HV SF6 Load Break Switch/LBS sf6
  • FLN36-40.5KV Indoor HV SF6 Load Break Switch/LBS sf6FLN36-40.5KV Indoor HV SF6 Load Break Switch/LBS sf6

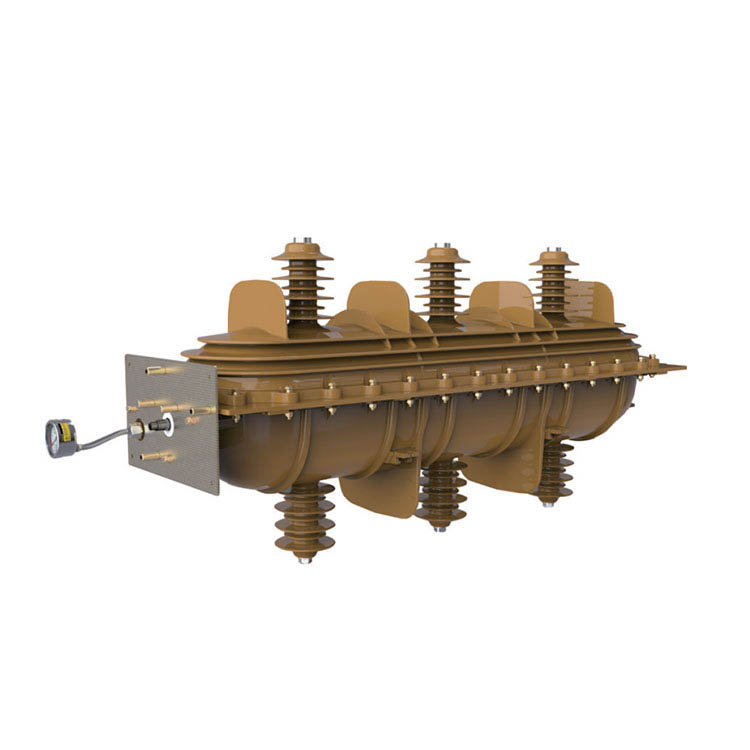

FLN36-40.5KV Indoor HV SF6 Load Break Switch/LBS sf6

Model:FLN36-40.5
FLN36-40.5D/T630 indoor sulfur hexafluoride (SF6) load switch and FLN36-40.5DR/125 load switch fuse combination are suitable for power stations and industrial electrical equipment with three-phase AC 50/60Hz ring network or terminal power supply. They are used as load control line protection for power systems. The load switch divides and closes load current, closed-loop current, no-load transformer and cable charging current; Combination electrical appliances can break any current under rated short-circuit current and are suitable for electrical complete sets of equipment such as ring main units and box type substations. FLN36-40.5 load break switch and FLN -40.5D load break switch plus fuse combination, can be used to protect  and control the electric equipments for power supply and transformer substations, which is especially suitable  for ring net cabinet, cable branch cabinet and distribution switching substation.

The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations, high-voltage switches, and medium and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, informatization, and mechanization. Twith 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, HZEC products are sold to the Middle East, North America, South America, Europe, Southeast Asia, Africa, and other regions, covering more than 40 countries.Description

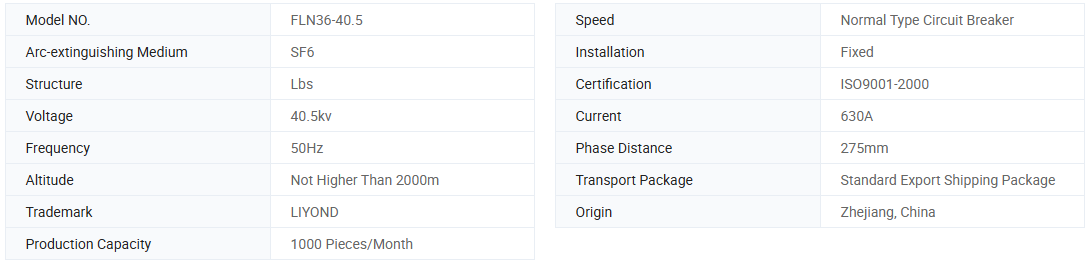

Basic Info.

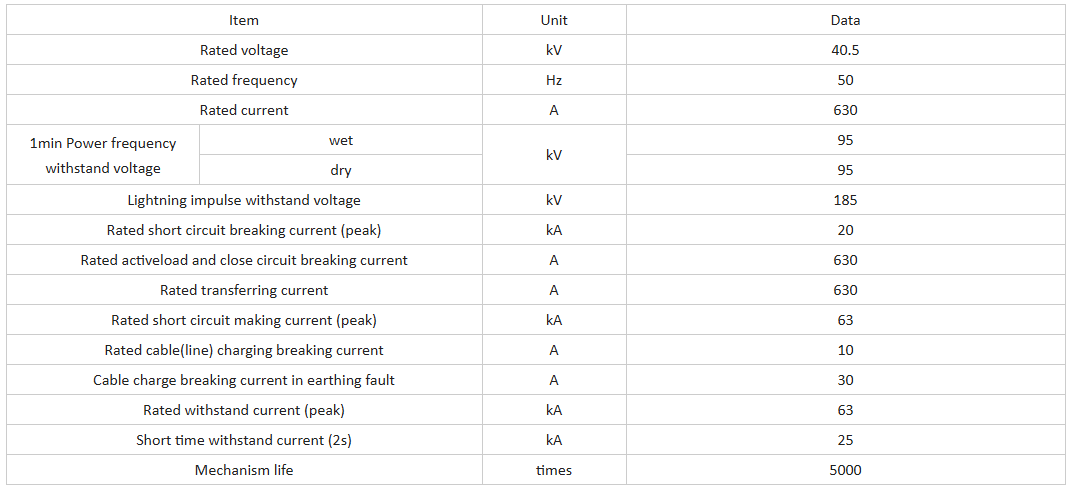

Technical Parameters

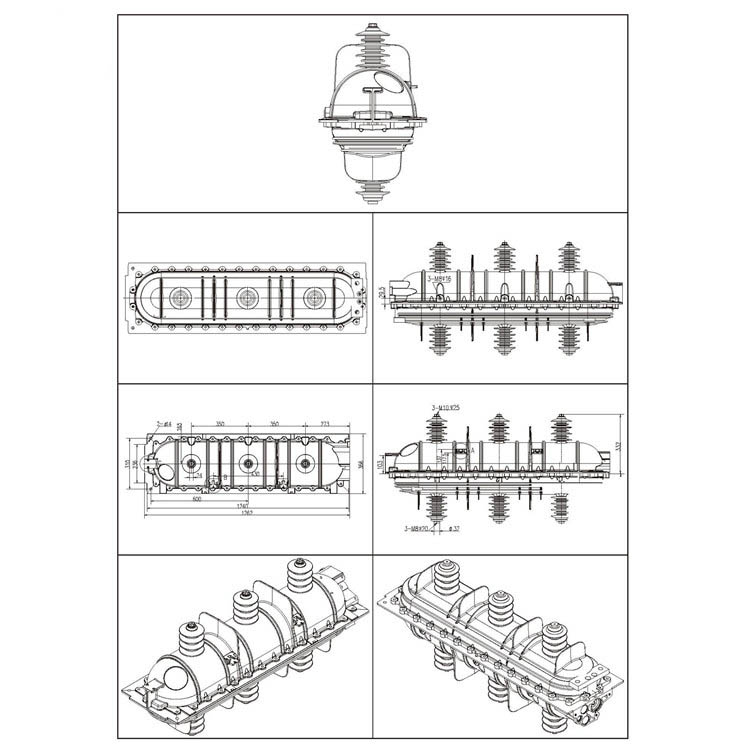

Drawing




Environmental Conditions

1. Ambient temperature: not higher than +40 ºC, not less than -15 ºC (at -30  ºC to allow storage and transportation).

2. Altitude: not exceed 1000m.

3. Earthquake intensity: not more than 8 degree.

4. Wind pressure:≤700pa

5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration




FAQ

Q: Could I have prices of your products?

A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.

Q: Can we print our logo/ company name on products?

A: Yes, of course, we accept OEM, then need you to provide brand authorization to us.

Q:Do you accept product customization?

A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation.

Q: What is the lead time?

A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.

Q: What is your Trade Terms?

A: We accept EXW, FOB, CIF, FCA, etc.

Q: Do you inspect the finished products?

A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment

Q: How to solve the quality problems after sales?

A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.



Factory


Certificate




Hot Tags: FLN36-40.5KV Indoor HV SF6 Load Break Switch/LBS sf6, China, Manufacturer, Supplier, Factory, Low Price, Quality, Latest Selling, Advanced
