KQ2F Series Straight Push-In Fitting

KQ2F Series Straight Push-In Fitting | SOLIH KQ2 Female Thread Pneumatic One-Touch Connector

Brand: SOLH by Richge Technology | SMC Interchangeable KQ2F One-Touch Fitting, Female Thread Straight Connector

1. Product Overview

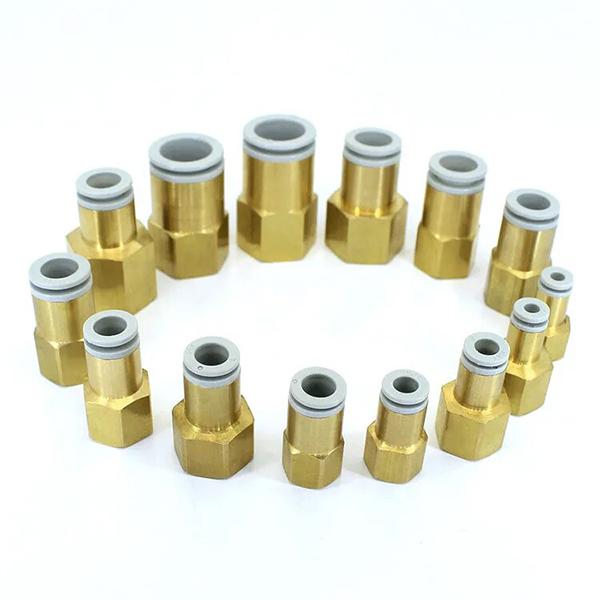

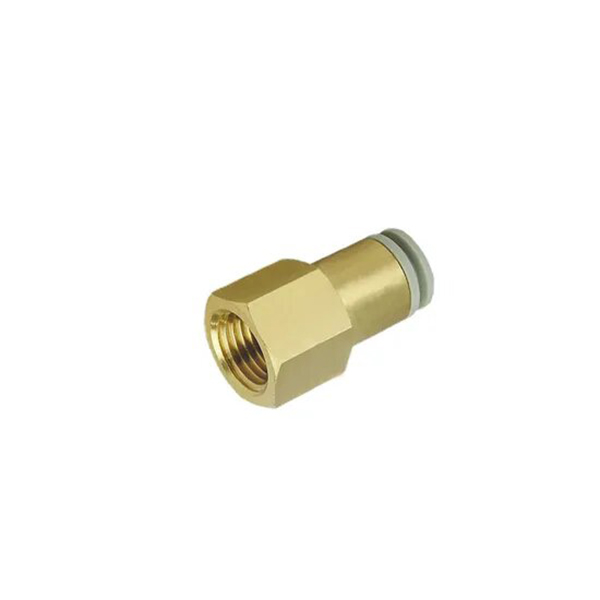

     KQ2F is a female-thread straight one-touch push-in fitting within SOLIH KQ2 series. One end for quick insertion of PU/PA tubing and the other end with internal female thread, designed for straight connection in pneumatic pipelines. Specially built for pneumatic components, cylinders and solenoid valves with female threaded ports. Fully compatible with SMC equivalent KQ2F fittings, featuring compact size and easy installation for automation air circuits.

2. General Technical Specifications

     • Applicable Fluid: Compressed air, also compatible with vacuum, stable from -100kPa up to 1MPa

     • Operating Pressure: -0.1 ~ 1.0MPa, dual use for vacuum and positive pressure

     • Ambient Temperature: -5℃ ~ 60℃; for water medium: 0～40℃, freezing condition prohibited

     • Compatible Tubing: PU / PA nylon hose, metric outer diameter φ3.2～φ16mm optional

     • Body Material: Nickel-plated brass for anti-corrosion & wear resistance; stainless steel optional for selected models

     • Seal Material: NBR Nitrile Rubber, reliable sealing and low airflow resistance

     • Connection Type: Push-in tube + female thread straight fitting. The main body and threaded part can rotate for positioning, convenient for piping in tight spaces

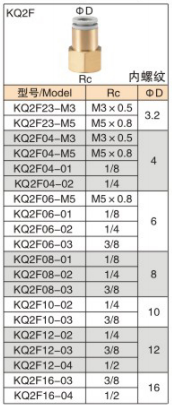

3. Model Specification Table (SOLH Standard)

4. Product Features

     • One-touch insert & release: Tool-free assembly. Insert tube for locking, press sleeve to release tube. Tube pulling force reduced by 20%, improving assembly efficiency while preventing jaws from over-clamping tubing.

     • Female thread design: Directly match pneumatic components with female ports such as pressure gauges, solenoid valves and cylinders. No extra adapters required for more compact installation.

     • Straight flow path: Optimized internal channel reduces air resistance and pressure drop to maintain stable flow rate.

     • Robust double sealing structure: Special-shaped sealing elements deliver stable sealing performance with zero leakage during long-term operation, suitable for full range from vacuum to positive pressure.

     • Miniature & lightweight: 23% smaller in volume and 57% lighter than traditional fittings, saving installation space for confined area piping.

     • Wide compatibility: Nickel-plated brass body for rust and corrosion resistance. Direct drop-in replacement for SMC KQ2F fittings. Compatible with PU, PA, FEP, PFA tubing materials.

5. Model Code Explanation (Take KQ2F08-02 as example)

     • KQ2: Series code for one-touch fitting, SOLIH KQ2 standard, interchangeable with SMC KQ2 series

     • F: Structure type: female thread straight fitting, push-in tube + female thread connection

     • 08: Compatible tube outer diameter: φ8 mm

     • 02: Female thread specification: Rc1/4

6. Installation & Operation Guidelines

     • Cut tubing vertically with flat and burr-free end. Fully insert tubing all the way to lock securely and avoid air leakage.

     • Press release sleeve and pull tubing out smoothly for disassembly. Do not yank forcibly to protect tubing and fitting jaws.

     • Some models come with pre-applied sealant; PTFE tape is not required. For models without sealant, wrap a small amount of PTFE tape to prevent thread leakage.

     • Not applicable for oil, corrosive fluids or other non-air media except dedicated special versions, which may damage seals and fitting body.

     • Avoid radial or axial external force on fitting to prevent deformation and seal failure.

7. Typical Application Scenarios

     • Tube connection for female-threaded components: pressure gauges, solenoid valves, air cylinders

     • Pneumatic circuit connection for automation machines, machine tools, robotic arms and production lines

     • Piping in narrow spaces and pneumatic circuits requiring frequent tube disassembly

     • Vacuum adsorption circuits and medium-low pressure pneumatic systems

8. Difference Between KQ2F and KQ2H Series

     • KQ2F: Female thread straight fitting, matches components with female threaded ports, no adapter needed, more compact dimension.

     • KQ2H: Male thread straight fitting, matches components with male threaded ports, general-purpose straight connector.
