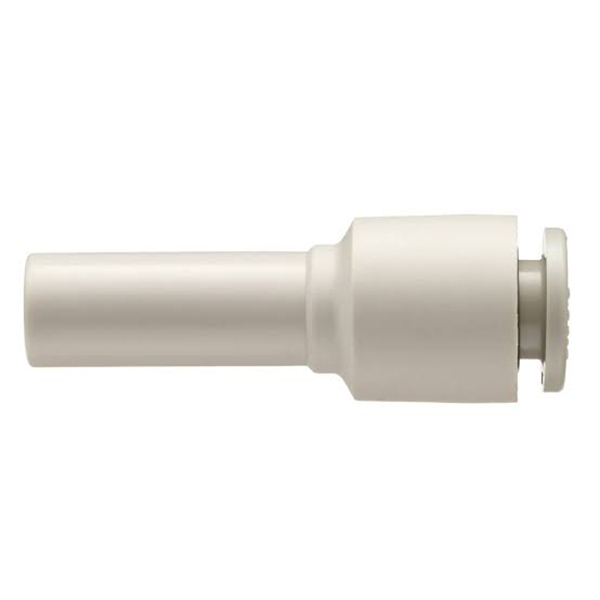

KQ2R Push Fit Female End Cap Plastic

SOLH KQ2R Series Reducer Straight Push-In Fitting | Different Diameter Tube Coupler

Brand: SOLH by Richge Technology | SMC KQ2R Equivalent Reducing Straight One-Touch Pneumatic Fitting

1. Product Overview

     KQ2R is a reducing straight push-in fitting within KQ2 series, also known as different-diameter tube coupler. It is specially designed for inline connection of two air tubes with different outer diameters, one of the most commonly used reducing accessories in pneumatic systems.

2. Model & Structure Explanation

  Model example: KQ2R06-08
     KQ2: SMC 2nd generation one-touch fitting series
     R: Reducer, reducing straight structure
     06: Tube outer diameter of port ① (mm, Φ6mm)
     08: Tube outer diameter of port ② (mm, Φ8mm)

  Structural Features

     • Both ends adopt standard KQ2 one-touch ports; one end for small OD tube and the other for large OD tube with straight internal flow channel, realizing inline connection for different-diameter tubing.

     • Smooth tapered transition inside channel, lower pressure drop compared with split assembly (straight fitting + separate reducer). Ideal for flow & pressure drop sensitive pneumatic circuits.

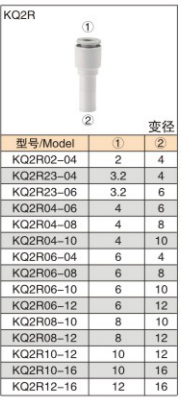

3. Full Specification Table

4. General Technical Specifications (Consistent with full KQ2 series)

5. Selection & Operation Guidelines

   Selection rule: Choose KQ2R for inline connection of two different OD tubes, no extra combined fittings required.

     • Tube end must be cut flat and burr-free. Insert tubing fully until "click" sound heard to avoid air leakage.

     • For removal: press the release collar on port and pull tubing outward; do not pull by brute force.

     • Pressure drop increases with larger diameter difference. Prefer models with small diameter difference under high-flow conditions.

6. Typical Application Scenarios

     • Tube diameter transition: Convert main Φ8 tube to Φ6 tube via KQ2R06-08 to match cylinders of different sizes without extra adapters.

     • Machine retrofitting: Connect Φ6 tubing of old equipment with Φ8 tubing of new machine for compatibility, no full tube replacement needed.

     • Vacuum circuit connection: Couple vacuum lines with different diameters. Low-leakage design maintains stable vacuum level.
