MXP Series Ultra-High Precision Compact Pneumatic Slide Table

MXP Series Ultra-High Precision Compact Pneumatic Slide Table

Brand: SOLH by Richge Technology

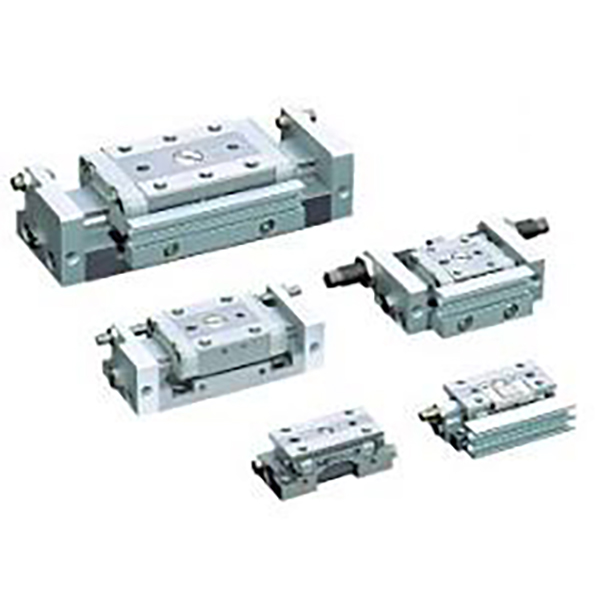

Product Overview

     The SOLH MXP series is a high-end ultra-high precision compact pneumatic slide table engineered for rigorous micro-positioning scenarios. Adopting a built-in cylinder guide rail structure and integrated stainless steel body, it delivers micron-level parallelism, ultra-low rotational error and exceptional rigidity. Supporting dual-direction piping and high-frequency stable cycling, it is perfectly suited for 3C precision assembly, optical detection, and high-accuracy micro component positioning, serving as the premium model for sophisticated miniature linear driving applications.

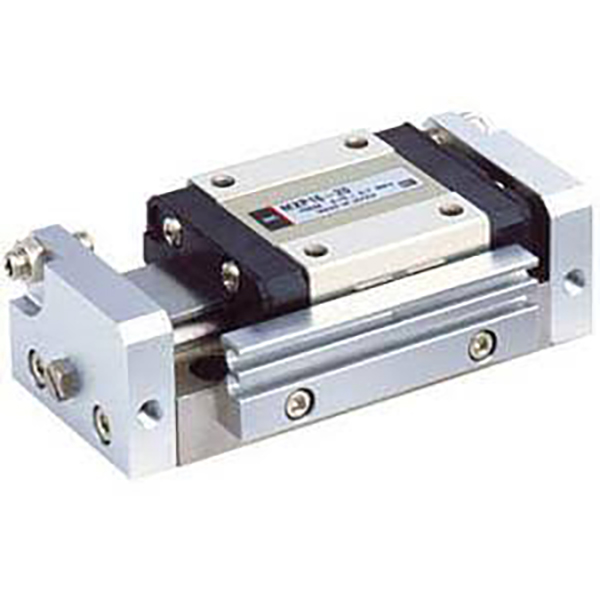

Core Structure & Design Features

     --  Drive Mode: Double-acting bidirectional operation, bore sizes φ6/8/10/12/16mm, covering light load range of 10~120N.

     -- Integrated Premium Structure: Features built-in cylinder linear guide rail and one-piece martensitic stainless steel body. The load-bearing mechanism is completely isolated from piston rod sealing movement, achieving extreme rigidity and minimal friction.

     -- Ultra-High Precision Grade: Travel parallelism 0.004mm, mounting parallelism 0.02mm, rotational accuracy ±0.03° (φ6/8/10) / ±0.04° (φ12/16), providing industry-leading ultra-stable precision positioning performance.

     -- Ultra-Compact Narrow Body: Body height only 17~23mm, 10%~20% narrower than MXJ equivalent models, enabling ultra-dense layout for extremely confined working spaces.

     -- Dual-Direction Piping Flexibility: Supports both lateral and axial piping with on-site switchable layout, adapting to diverse on-site pipeline routing requirements.

     -- Universal Sensor Compatibility: Standard dual magnetic switch grooves allow installation of 2 M9B magnetic switches for reliable bidirectional position monitoring.

     -- Multi-Level Buffering & Limiting: Standard dual-end rubber buffers for noise and impact reduction; optional single/dual-end metal stroke limiters, plus hydraulic buffer option for φ8 and above models, with an adjustable stroke range of 0~5mm for ultra-precise positioning control.

Complete Model Coding Rule

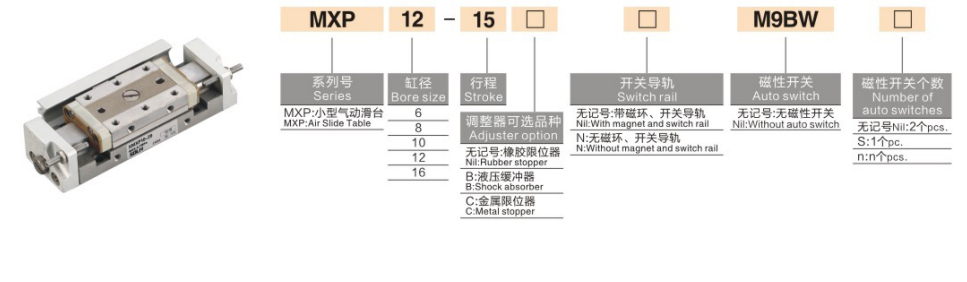

   1. Model Example: MXP8-15-B-M9BW

   2. Standard Order Reference Examples

     --  MXP6-5: Standard type, no magnetic switch, bore 6mm, stroke 5mm, double acting

     --  MXP10-20-B-2M9B: Bore 10mm, stroke 20mm, dual-end metal limit, 2pcs M9B magnetic switches

     -- MXP12-25-D: Bore 12mm, stroke 25mm, extend-end metal limit, axial piping compatible

Core Technical Specifications (@0.5MPa, Double Acting)

Core Competitive Advantages

   1. Ultra-High Micron-Level Precision & Stability
     -- Boasts ultra-low travel parallelism of 0.004mm and rotational accuracy as low as ±0.03°, paired with ±0.01mm repeat positioning accuracy. It eliminates micro-shaking and position deviation, fully meeting strict precision demands for optical detection, micro component lamination and high-precision testing processes.

   2. Built-In Cylinder Structure & Ultra-Narrow Compact Body
     -- The cylinder is embedded inside the guide rail structure, reducing body width by 10%~20% compared with MXJ models. Innovative dual-direction lateral/axial piping design allows flexible on-site switching, solving pipeline layout restrictions in ultra-narrow dense stations.

   3. High Rigidity & Long Service Life
     -- One-piece martensitic stainless steel body and integrated guide rail structure deliver excellent deformation resistance and structural rigidity. Adopts oil-free low-friction sealing design, compatible with clean workshops and light industrial environments, achieving a maintenance-free service life of over 5 million cycles.

   4. High-Frequency Smooth Operation
     -- Premium low-friction sealing and high-precision ball guide rail ensure ultra-smooth movement. Operating speed ranges from 50 to 500mm/s, supporting stable high-frequency cycling above 350cpm without stuttering or jitter, ideal for long-term short-stroke repetitive positioning tasks.

   5. Flexible Multi-Scene Installation Adaptation
     -- Supports top, bottom and side three-sided mounting with precision positioning pin holes. Symmetric air port structure enables left/right piping interchangeability on site, completely breaking directional limitations and adapting to diverse equipment structural designs.

Mounting Forms & Typical Applications

   1. Mounting Methods

     -- Top Mounting: Fixed via through holes with precision positioning pin holes, suitable for workpiece top installation and high-precision positioning scenarios requiring zero displacement.

     --  Bottom Mounting: Fixed via bottom threaded holes with stable and reliable structure, applicable for standard equipment surface assembly and fixed linear driving.

     --  Side Mounting: Fixed via side threaded holes, perfect for equipment with limited vertical space and dense parallel arrangement of multiple slide units.

   2. Typical Application Scenarios

     --  3C Electronics: Chip mounting and bonding, lens module focusing, micro component ultra-precision positioning, probe cycle testing

     --  Optical Equipment: CCD camera precision movement, optical lens fine calibration, laser positioning, high-precision detection platform driving

     --  Micro Precision Assembly: Miniature automatic screw locking, terminal crimping, precision component insertion, high-precision jig driving

     -- Medical Equipment: Micro pump precision control, miniature valve precise switching, small instrument telescopic positioning

Slide Table Selection Comparison: MXP vs MXJ vs MXQ

3-Step Fast Selection Guide

   1. Bore Selection by Load
     -- φ6 ≤1kg / φ8=1~2kg / φ10=2~4kg / φ12=4~6kg / φ16=6~10kg. Reserve no less than 50% load safety margin to ensure stable precision operation.

   2. Stroke Confirmation Standard stroke range: 5~30mm. Prioritize short strokes (5~20mm) for high-frequency working conditions to maintain higher positioning accuracy and operational stability.

   3. Configuration Matching

      --  Position Monitoring: Equip 2 M9B magnetic switches for real-time bidirectional stroke position feedback.

     -- Precision Limiting & Buffering: Select dual-end metal limit (B) for 0~5mm adjustable precise positioning; choose hydraulic buffer for φ8 and above models to reduce high-frequency impact.

     --  Piping Adaptation: Adopt axial piping for ultra-narrow space layout, and lateral piping for conventional standard installation scenarios.

One Sentence Summary

     SOLH MXP series ultra-high precision pneumatic slide table features 0.004mm ultra-low parallelism, minimal rotational error, built-in integrated guide rail, dual-direction switchable piping and optional hydraulic buffer, serving as the premium high-rigidity micro linear stage for optical detection, ultra-precision 3C assembly and high-end medical automation equipment.
