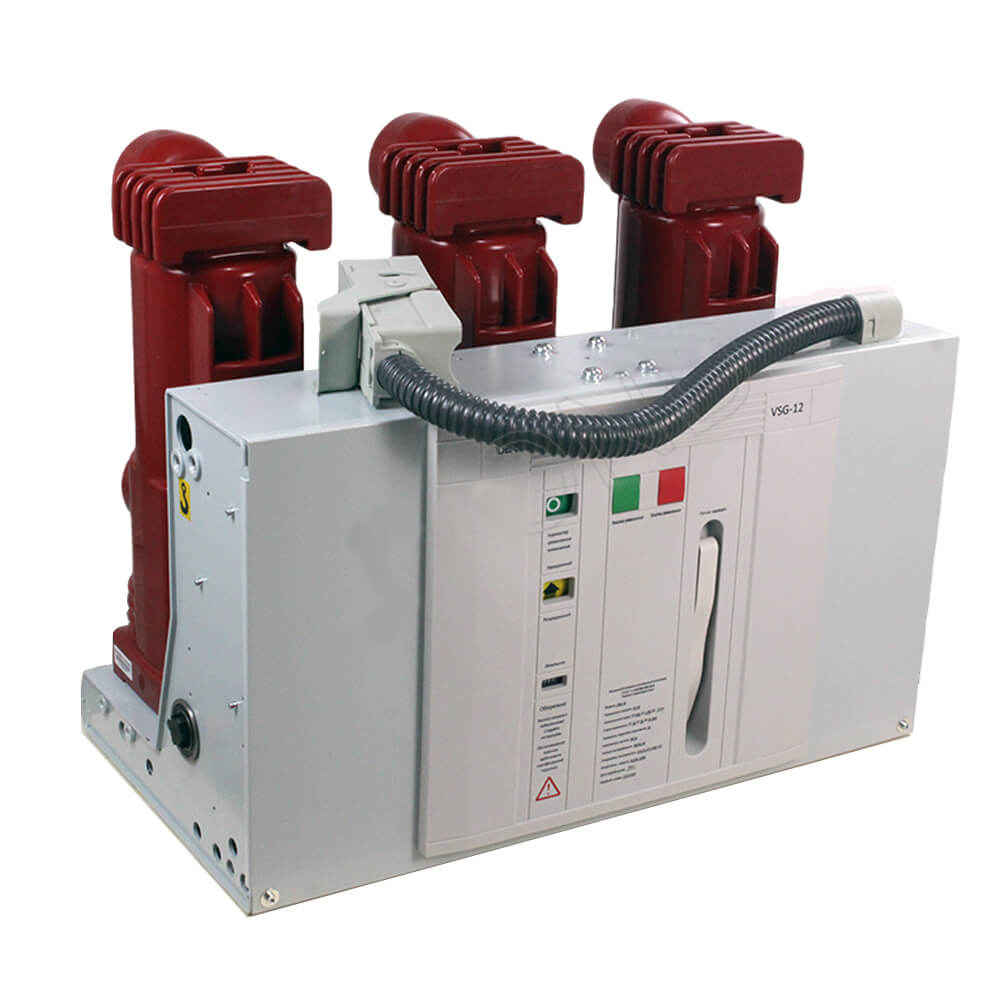

VSG-12 type Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker Welcome to our selection of high-quality circuit breakers, featuring the VSG-12 1600A Medium Voltage Fixed Type Vacuum Breaker 12kV. This medium voltage circuit breaker is designed for reliable performance in a range of applications, offering superior protection for your electrical systems. The VSG-12 vacuum circuit breaker combines advanced technology with durable construction to ensure long-lasting operation and peace of mind. With a focus on safety and efficiency, this medium voltage breaker is an essential component of any switchgear system. Whether you are looking to upgrade your existing electrical infrastructure or are in need of a dependable solution for a new project, the VSG-12 vacuum circuit breaker delivers exceptional performance at a competitive price. Trust in the quality and reliability of our circuit breakers to safeguard your electrical equipment and ensure uninterrupted power supply..

VSG-12 type Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker VSG type indoor high-voltage vacuum circuit breaker is suitable for switching various loads of different natures and frequent operations in power systems with three-phase AC 50Hz and rated voltage of 7.2kV-40.5kV. It can be used in industries, mining, enterprises, and power plants. And for the protection and control of electrical equipment in substations. It can be equipped with KYN28A and other mid-mounted handcart switch cabinets, and can also be equipped with XGN fixed switch cabinets. The VSG indoor high-voltage vacuum circuit breaker complies with the national standards GB1984 “AC High-voltage Circuit Breaker”, JB/T3855 “3.6~40.5kV Indoor AC High-voltage Vacuum Circuit Breaker” and IEC60056 “High-Voltage AC Circuit Breaker” standards.

The indoor withdrawable vacuum circuit breakers are suitable for three-phase AC power systems with rated voltages up to 12~24kV and frequency 50/60Hz. They are widely used in power plants, substations, petrochemicals, metallurgy, manufacturing and other industries, airports, residential areas,... VSG-12 Indoor High Voltage Vacuum Circuit Breaker(abbr.: circuit breaker) is three-phrase A.C. 50Hz indoor of power supply distribution equipped with the rated voltage 12 KV. This product is in accordance with GB1984-2003( high voltage A.C. circuit breaker),JB3855-1996 (3.6-4.5KV indoor A.C. high voltage circuit breaker), DL403-2000(technical conditions for ordering of 12-40.5KV high voltage vacuum circuit breaker) and IEC standard 62271-100:2001( high volage A.C. Circuit breaker). It can be used for protecting and controlling equipment in the grid equipment and the dynamic design of industrial and mining enterprise .It is suitable for switching load and frequent operation with different property and with the capability of many times operations of breaking short-circuit current.

VSG-24 Series of Indoor high Voltage Vacuum circuit breaker with embedded poles is three phase A.C 50Hz indoor power distribution equipments with the rated voltage of 24kV. It’s used for protecting and controlling the electrical equipment in the fields of industry&ming enterprise , power plants and substation. The main conductive circuit of this type vacuum circuit breaker uses embedded pole, matched with Modular organization and Integrated energy storage handle. The overall layout is reasonable, perfectly with brevity and really realize the free-maintenance and longer mechanical &electrical life. The indoor withdrawable vacuum circuit breakers are suitable for three-phase AC power systems with rated voltages up to 24kV and frequency 50/60Hz. They are widely used in power plants, substations, petrochemicals, metallurgy, manufacturing and other industries, airports, residential areas,.

The 24kV side-mounted vacuum circuit breaker (with VGS spring operating mechanism) is a highly efficient and safe power protection device designed for medium to high-voltage networks, featuring excellent insulation properties and breaking capacity. VSG-24C series side mounted vacuum circuit breaker is fixedly installed and is mainly used for fixed switchgear.The circuit breaker can be used alone or for ring network power supply,box type or various non-standard powersupply systems. Main advantagesVsG indoor high voltage vacuum circuit breaker is used for 24kV power system indoor switching eguipment, as power grid eguipment, industrial and mining enterprises power design protection and control unit

VSG-40.5 series vacuum circuit breaker is a new type of three-phase50Hz according to the unique design concept and combined with the market demand and development, the rated voltage of indoor switchgear40.5kV, it can be provided to industrial and mining enterprises, powerplant and substation as the control and protection of electrical equipment,and is suitable for frequent operation. 40.5kV Isolated High Voltage Handcart is an electrical device specially designed for high voltage power systems, used in three-phase AC 50Hz power systems as a switch, isolation or protection element. It has high insulation performance and reliable operation, and can be safely operated in high voltage environments.

VSG indoor high voltage vacuum circuit breaker  is used for 24KV power system indoor switching equipment, as power grid equipment, industrial and mining enterprises power design protection and control unit VSG-24C type Side installation Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker

VSG-C/12 type Side installation Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker. VSG-12C indoor high-voltage side-mounted vacuum circuit breaker is an indoor and outdoor switchgear for 12kV power system. Loads of different natures, frequent operations, and occasions where short-circuit current is broken multiple times. The product adopts a new type of circuit breaker operating mechanism, and the primary part of VSG-12 can use international brand solid-sealed poles to seal the vacuum interrupter and the main conductive circuit parts into a whole to protect the interrupter from collision, dust and condensation. It has strong environmental adaptability, greatly reduces operation and maintenance costs, and truly realizes the maintenance-free one-time part of the product and less maintenance of the operating mechanism. Perform frequent operations or break short-circuit current multiple times; the mechanical life can be up to 30,000 times, and the full-capacity short-circuit current breaking times can reach 50 times

VSG-40.5C type Side installation Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker VSG-40.5C series vacuum circuit breaker is a new type of three-phase 50Hz according to the unique design concept and combined with the market demand and development, the rated voltage of indoor switchgear 40.5kV, it can be provided to industrial and mining enterprises, power plant and substation as the control and protection of electrical equipment, and is suitable for frequent operation.
