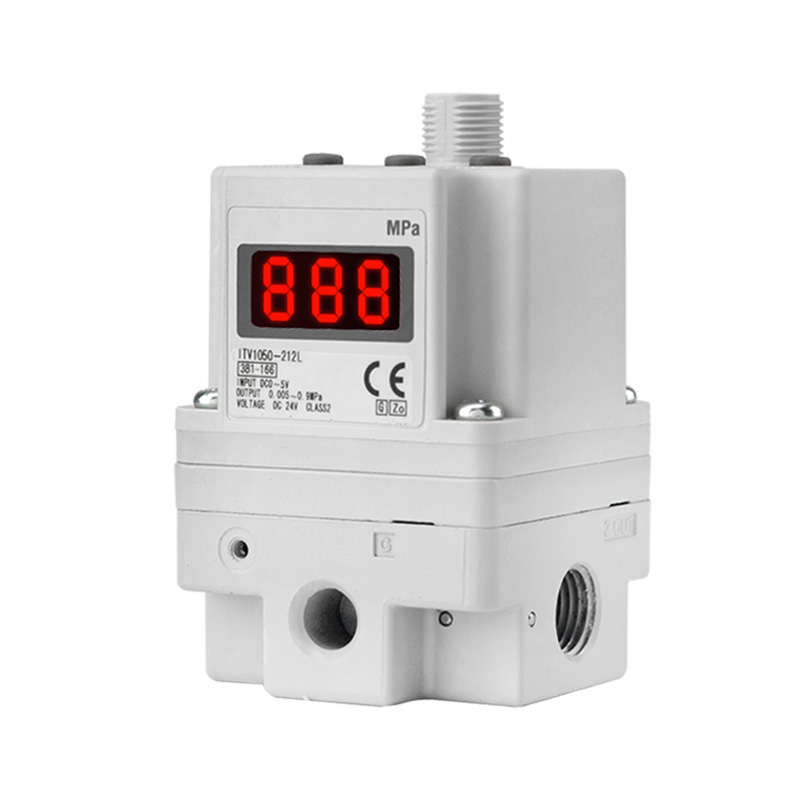

ITV Series High Flow Electro-Pneumatic Proportional Valve

Brand: SOLH by Richge Technology

Product Positioning & Working Principle

   1. Product Positioning

     SOLH ITV series high flow electro-pneumatic proportional valve is an SMC-interchangeable electric-to-pneumatic conversion component. It realizes stepless continuous air pressure adjustment via electrical control signals, fully replacing manual pressure reducing valves to achieve automatic, high-precision remote pressure regulation, and is specially optimized for heavy-duty large-flow air supply circuits.

   2. Core Function & Principle

     -- Core Function: Convert electric control signal to stepless adjustable air pressure for automatic & remote pressure regulation

     -- Working Principle: Closed-loop electro-pneumatic proportional feedback system. Built-in pressure sensor monitors output pressure in real time and automatically corrects deviation, delivering outstanding control accuracy and fast response speed

     -- Environmental Protection Grade: IP65 dustproof & splash-proof, stable operation in harsh industrial workshop conditions

High Flow Series Model Quick Reference Table

Universal General Technical Specifications

     -- Applicable Fluid: Dry compressed air

     -- Max Inlet Supply Pressure: 1.0 MPa

     -- Ambient & Medium Temperature: -5 ~ +60℃

     -- Power Supply: DC24V ±10% (partial versions support DC12–15V)

     -- Power Consumption: ≤4W (communication equipped models)

     -- Monitor Output Signal: Analog DC1–5V linear with actual output pressure

     -- Port Thread Options: Rc / NPT / G parallel thread, quick push-in fittings optional

Input Signal Types & Model Suffix Definition

  1. Available Control Signals

     -- Analog input (mainstream): DC0–10V voltage signal, 4–20mA current signal

     -- Multi-stage preset: 4-point / 16-point I/O fixed pressure preset function

     -- Fieldbus communication: RS-232C, CC-Link, DeviceNet, PROFINET, EtherNet/IP (requires dedicated communication board accessory)

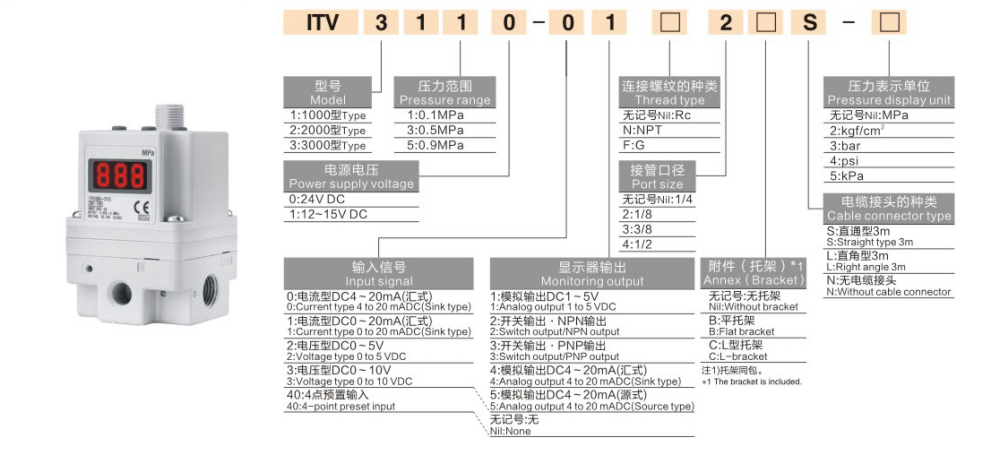

  2. Model Code Example：ITV2050-31F2BN3

     -- ITV2050: ITV2000 medium flow series

     -- 31: G1/4 port thread

     -- F: Flat mounting bracket

     -- 2: DC0–10V analog voltage input

Core Product Advantages

  1. Greatly upgraded high flow performance

     -- Max flow capacity increased by around 5 times compared with standard small-flow ITV series, perfectly satisfying fast reciprocating motion requirements of large-bore cylinders and multi-cylinder synchronous equipment.

  2. Excellent high precision & long-term stability

     -- Control accuracy within ±1% F.S., ultra-fast response speed and tiny pressure fluctuation, ideal for precision assembly, semiconductor processing, automatic coating and other high-standard production lines.

  3. Compact lightweight optimized outline

     -- ITV2100 model weight reduced by 19% vs previous generation, flexible bracket & base mounting to fit limited installation space.

  4. User-friendly intelligent operation

     -- Built-in high-brightness LED digital display for real-time pressure value visualization; equipped with self-diagnosis algorithm and fault alarm output to simplify on-site troubleshooting & maintenance.

Typical Industrial Application Scenarios

     -- Pressure control for large-flow cylinders & pneumatic actuators: Packaging machines, automatic dispensing & gluing equipment

     -- Multi-stage automatic pressure switching: Welding equipment, riveting stations, film & wire tension control systems

     -- Ultra-precision pneumatic process loops: Semiconductor manufacturing, optical testing, medical precision automation equipment

     -- Centralized remote pressure adjustment on automated production lines: Replace multiple sets of manual regulators for one-stop digital pressure control

Model Selection Guidelines

     -- Select series by required flow rate: ITV1100 for micro small flow, ITV2100 for universal medium flow, ITV3100 for high-flow heavy-duty equipment

     -- Confirm adjustable pressure range to fully cover all process working pressure requirements (0.005–0.9 MPa full range optional)

     -- Match control signal type: DC0–10V analog voltage as standard choice; select dedicated communication board if fieldbus digital control is needed

     -- Confirm mounting form: Base mount / side mount / bracket mount to match on-site air pipeline layout

One Sentence Summary

     SOLH ITV high flow electro-pneumatic proportional valve realizes stepless digital pressure adjustment via electric control signals, equipped with ultra-large flow capacity, IP65 industrial protection and multi-type analog/fieldbus signal interfaces, serving as the core control component for remote, high-precision, high-volume air pressure regulation in all automated pneumatic systems.
