IRV10 / IRV20 Series Precision Vacuum Regulator | SOLH by Richge Technology

Brand: SOLH by Richge Technology (睿其格科技)

Short Summary: IRV10 & IRV20 precision vacuum regulators deliver stable negative pressure control with high resolution, large flow capacity and diverse mounting options, standard control parts for all automated vacuum gripping systems.

Product Overview

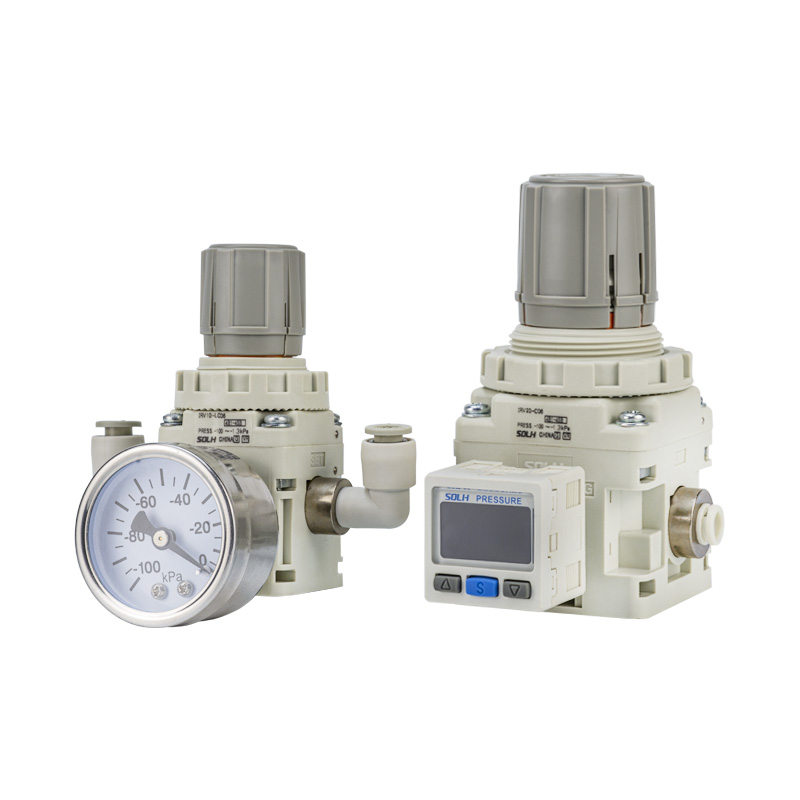

     SOLH IRV10 and IRV20 series are dedicated precision vacuum regulators tailored for negative-pressure pneumatic circuits. They deliver consistent, accurate vacuum adjustment to stabilize suction force for automatic workpiece picking, transferring and positioning. Compact, lightweight and user-friendly, this series fits electronic assembly, automotive processing, leak testing and packaging vacuum equipment perfectly.

Core Key Features

     1. High-precision vacuum stabilization Adjustable vacuum range covers -100kPa ~ -1.3kPa with ultra-fine resolution ≤0.13kPa. The self-locking adjustment knob effectively avoids pressure drift caused by vibration.

     2. Large flow & lightweight design Throughput is over twice that of ordinary vacuum regulators, while overall weight is cut down by 20% for easier equipment integration.

     3. Flexible multi-mode installation Two body styles optional: standard dual-side port version and Type A single rear side port version. Supports direct mounting, bracket installation and panel flush mounting.

     4. Stable and easy operation Equipped with integrated push-in tube connectors; withstands 100kPa positive pressure, working temperature range from 5℃ to 60℃ for long continuous operation.

Technical Specifications

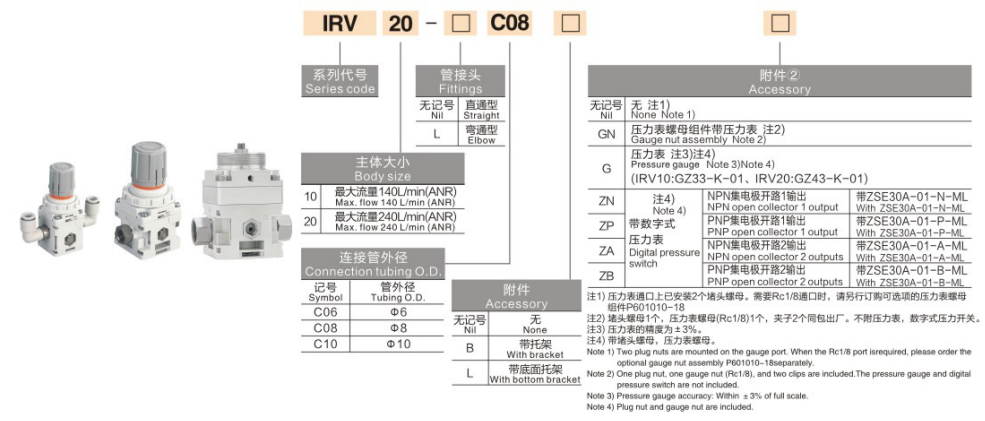

Model Coding Rules

     · IRV10 / IRV20: Standard model with dual-side piping ports

     · IRV10A / IRV20A: Single rear side port compact version

     · Suffix -N07: Built-in one-touch push-in fittings

     · Suffix -G: Optional digital vacuum pressure switch

Application Scenarios

     Precision vacuum pick-and-place for electronic components and auto spare parts, robotic arm suction cup systems, vacuum jig positioning, air leak testing and negative-pressure lab experiments, packaging machinery and film conveying positioning equipment.
