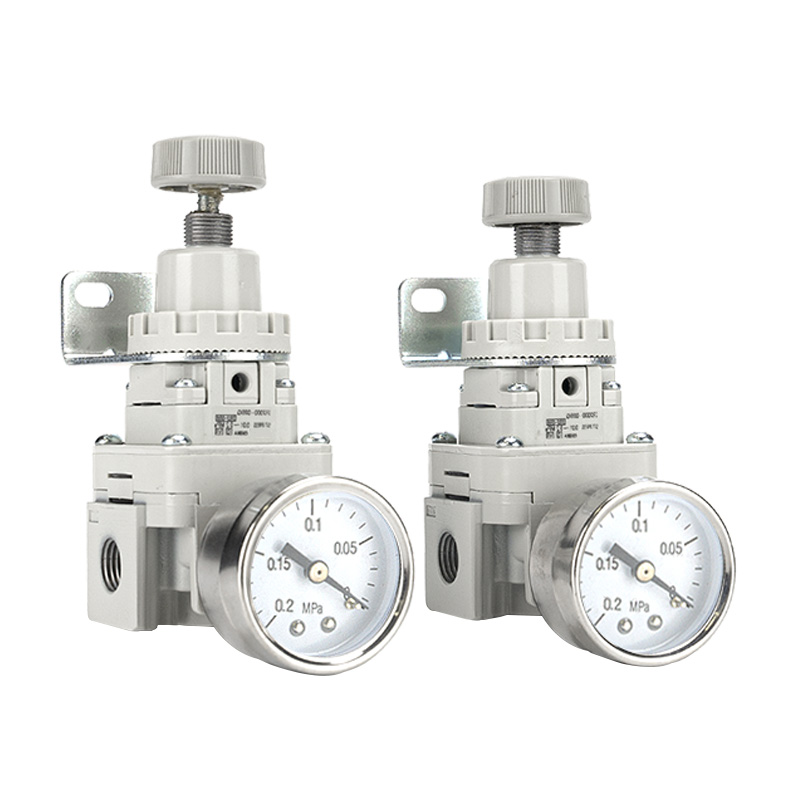

IR Series Precision Pilot Regulator | SOLH by Richge Technology

Brand: SOLH by Richge Technology (睿其格科技)

Short Summary: IR series internal pilot precision regulators deliver 0.2% ultra-high accuracy, high flow rate, fast response and ultra-low air consumption, providing micron-level stable pressure control for high-end precision automation.

Product Overview

     SOLH IR series precision pilot regulators adopt advanced internal pilot and nozzle-flapper control structure, dedicated for ultra-stable pneumatic pressure regulation. Different from standard mechanical regulators, this series features outstanding precision, repeatability and anti-interference performance, maintaining constant output pressure despite fluctuating inlet pressure, flow rate and ambient temperature. With energy-saving design, compact structure and flexible installation, it is the preferred solution for semiconductor, electronic testing, medical equipment and high-precision tension control systems.

Core Features

1. Ultra-High Precision Control

     Achieves sensitivity ≤0.2% F.S. and repeatability ±0.5% F.S. Maintains extremely stable output pressure, eliminating pressure drift caused by air source fluctuation and load changes.

2. High Flow & Fast Response

     Optimized nozzle-flapper pilot structure realizes rapid pressure adjustment. The maximum flow reaches 6,000 L/min, and relief capacity is 5 times higher than conventional regulators, supporting high-cycle dynamic working conditions.

3. Ultra-Low Energy Consumption

     Steady-state air consumption is only 1–3 L/min, saving up to 90% air volume compared with ordinary regulators, greatly reducing long-term operating costs.

4. Compact & Flexible Structure

     Independent pilot and main exhaust design supports reversible installation. Lightweight structure reduces 27% volume weight, with built-in safety relief function for overpressure protection.

5. Manual & Pneumatic Dual Control

     Supports manual knob adjustment and air-pilot remote control, compatible with automatic linkage and remote precision pressure regulation.

Technical Specifications

     • Working Medium: Clean filtered compressed air

     • Max Inlet Pressure: 1.0MPa

     • Pressure Adjustment Range: 0.005–0.2MPa / 0.01–0.4MPa / 0.01–0.8MPa

     • Operating Temperature: -5℃～+60℃

     • Port Size: Rc 1/8, 1/4, 3/8, 1/2

     • Control Type: Manual adjustment / Air pilot remote control

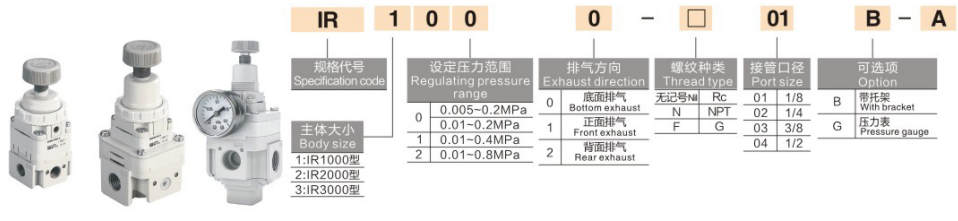

Product Series Classification

     • IR1000: Mini type with 1/8” port for micro precision control

     • IR2000: Standard 1/4” port for general precision automation

     • IR3000: Large flow 3/8”–1/2” port for high-volume equipment

     • IR□100 Series: Air pilot remote control model for automatic system linkage

Application Industries

     Precision pressure measurement and air leakage testing, semiconductor and electronic die bonding equipment, film and textile tension control, printing pressure calibration, robotic precision positioning and gripping, medical laboratory instruments, automotive precision spraying and clamping systems.
