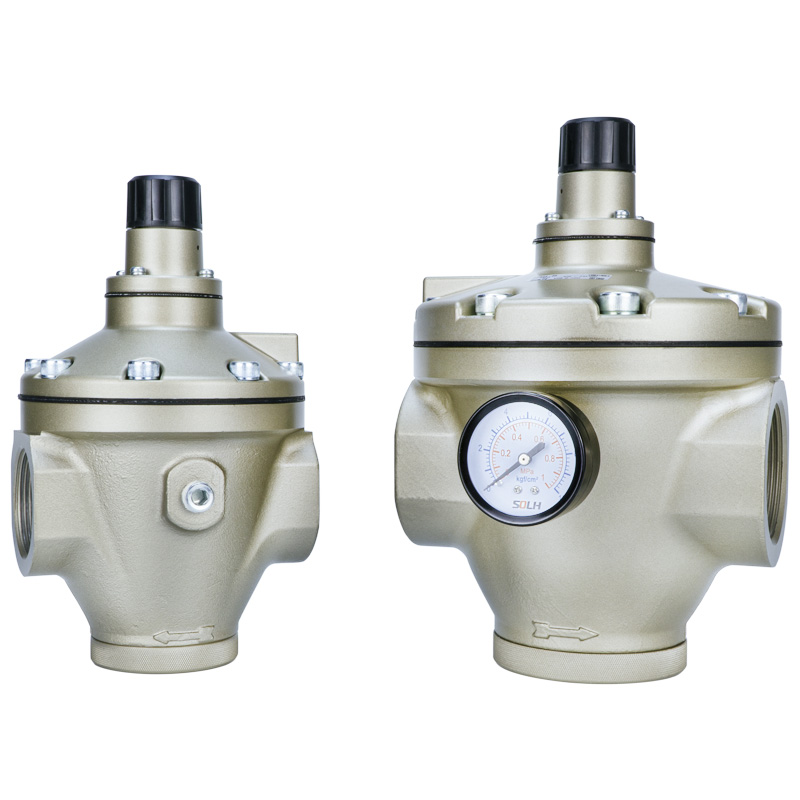

AR Series Pilot Operated Pressure Regulator (SOLH by Richge Technology)

Brand: SOLH by Richge Technology (睿其格科技)

Product Positioning

     SOLH AR pilot operated regulators cover full models AR425/435/625/635/825/835/925/935. Adopting internal pilot relief structure, this series targets medium-high pressure, large flow, long-distance and high-precision main air pipelines. Compared with standard direct-acting regulators, it delivers superior regulating accuracy, bigger throughput and stronger anti-pressure-fluctuation performance.

Structure & Working Principle

     Structure: Internal pilot relief type with constant bleed pilot air

     1 .Inlet compressed air splits into main flow channel and independent pilot control circuit.

     2. Pilot air pressure pushes the diaphragm to adjust the opening of main spool for stable output pressure.

     3. Built-in relief function automatically exhausts excess secondary pressure to maintain constant outlet pressure.

     4. Constant bleed air flow at around 5 L/min ensures ultra-fast response and outstanding regulating precision.

Key Product Features

     1. Large flow & high pressure rating

     Max working pressure reaches 1.0 MPa with 1.5 MPa proof pressure. Port sizes range from 1/4" up to 2", perfectly matching factory main trunk lines and centralized air supply systems.

     2. Ultra-high regulating precision

     Hysteresis ≤0.02 MPa and repeatability ≤0.01 MPa. Output pressure remains steady even under sharp changes of inlet pressure or instantaneous flow surge.

     3. Dual pressure range within one identical body

     3.1 Suffix 25 model: 0.05–0.83 MPa for general high-pressure industrial applications

     3.2 Suffix 35 model: 0.02–0.20 MPa for low-pressure precision control scenarios

     4.Integrated automatic overpressure relief

     No extra external relief valve required. The built-in relief structure stabilizes pressure output and prevents pressure impact on downstream pneumatic components.

     5.Stable, maintenance-friendly construction

     Operating temperature ranges from -5℃ to +60℃. Die-cast aluminum alloy body supports lubrication-free operation and arbitrary mounting orientation.

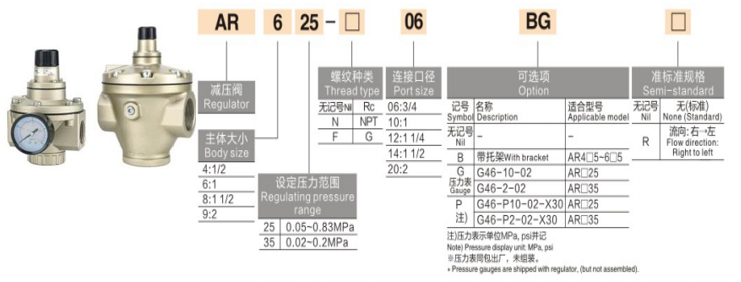

Model & Specification Table

General Technical Parameters

     1. Applicable medium: Dry or lubricated compressed air

     2. Maximum inlet pressure: 1.0 MPa

     3. Constant bleed consumption: Approx. 5 L/min (ANR)

     4. Standard gauge port: 1/4" thread

     5. Structure type: Internal pilot, relief design with constant bleed

Typical Applications

     1. Factory main air pipelines and centralized air supply stations

     2. Large-flow equipment equipped with big-bore cylinders, air motors, air blowing and drying devices

     3. Precision pneumatic control: testing fixtures, positioning equipment, tension control and hydraulic presses

     4. Pipelines with severe pressure fluctuation and long-distance air transmission

     5.Two-stage pressure reduction systems from high-pressure air tanks to medium-pressure production equipment

Core Summary

     AR pilot series integrates internal relief pilot structure, large flow capacity, high precision, dual selectable pressure ranges and constant auto bleed function. It serves as the optimal pressure regulating solution for main air trunks, high-flow equipment and high-precision high-pressure pneumatic circuits.

Selection Comparison: Direct AR / Pilot AR / VEX1

     1. Direct-acting AR (AR20~60): Small flow, economical cost, standard regulating accuracy for small branch circuits

     2. Pilot AR (AR425~935): Medium-to-large flow, high precision, dedicated for factory main air pipelines

     3. VEX1 Series: Ultra-large throughput, 3-port exhaust design, multi-stage pressure adjustment and ultra-fast relief performance
