Brand: SOLH by Richge Technology | Pneumatic Straight One-Touch Push Fitting for Compressed Air & Vacuum Lines
 |
 |
 |
 |
KQ2H is a standard straight push-in pneumatic fitting with push-to-connect design, compatible with PU and PA nylon tubing. It serves both compressed air and vacuum piping systems and is widely matched with ZH, BM, PBM, PBX series vacuum generators. As one of SOLH’s core push fitting series, it can directly replace imported SMC KQ2H fittings.
The KQ2H series includes three main sub-types:

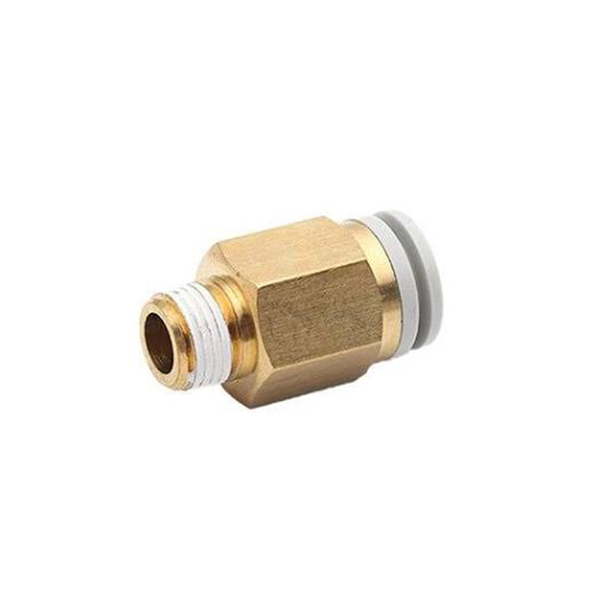

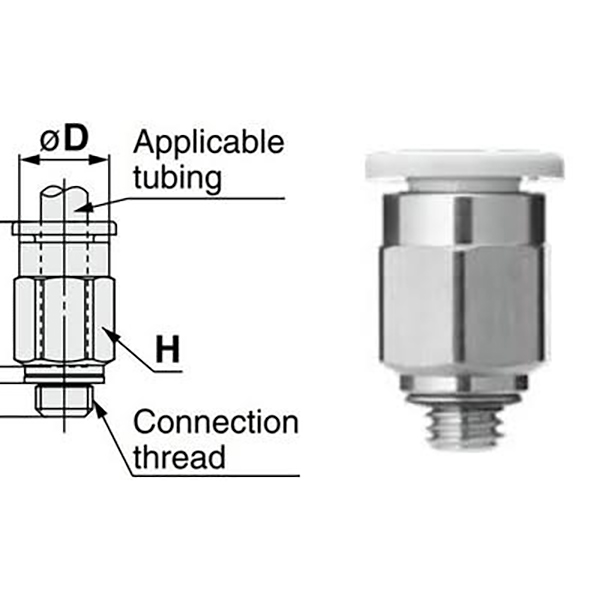

Male thread straight: One end male thread (micro M thread / R taper thread), one end tube insertion

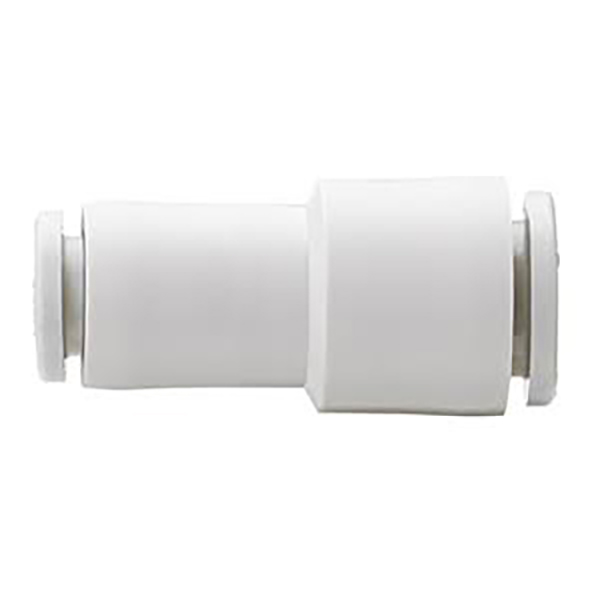

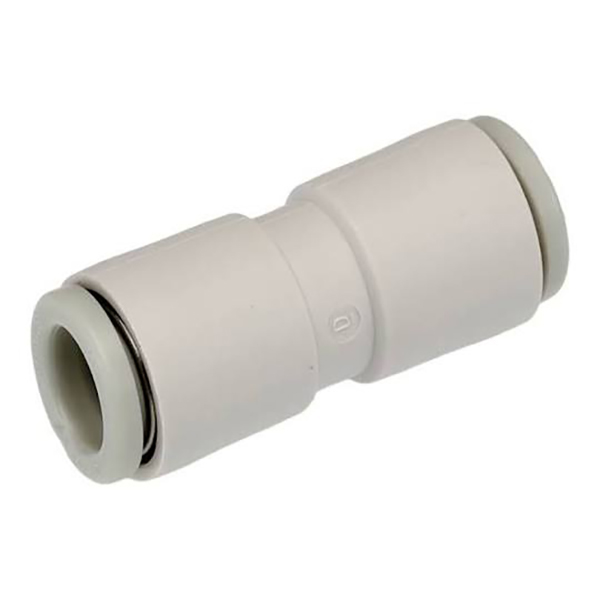

Equal diameter straight (-00 suffix): Both ends for same OD tubing butt joint
Reducing straight: Two ports for different tube outer diameters to realize pipe size transition
Single-hand assembly & disassembly: Insert tube for automatic locking; press blue release ring to pull out tubing, fully standardized dimensions.
• Spring jaw one-touch locking structure: Tube inserted and locked automatically. Press release collar to detach tube for convenient assembly.
• Material composition: Reinforced POM plastic body; nickel-plated brass threaded end for anti-rust and reliable sealing.
• NBR nitrile rubber seal works steadily for positive compressed air and negative vacuum circuits.
• Full size coverage: Tiny tubing Φ2/3.2/4, regular Φ6/8/10/12 and large size Φ16. Supports micro M threads (M3, M5, M6) and imperial R taper threads (1/8,1/4,3/8,1/2), suitable for vacuum generators and micro cylinders.
• Compact size, ideal for installation in narrow spaces of automated machinery.
Examples:
KQ2H04-M5: Male thread straight fitting for Φ4 tube, M5×0.8 male thread
KQ2H06-01S: Male thread straight fitting for Φ6 tube, R1/8 male taper thread
KQ2H08-00: Equal-diameter straight fitting, both ports for Φ8 tubing
KQ2H06-08: Reducing straight fitting, Φ6 on one side, Φ8 on the other side
|
Code Segment |
Description |
|
KQ2H |
Series code: straight push-in fitting |
|
02/23/04/06/08/10/12/16 |
Tube outer diameter ΦD: 2 /3.2 /4 /6 /8 /10 /12 /16 mm |
|
M3G/M5/M6 |
Metric micro male thread: M3×0.5 / M5×0.8 / M6×1.0 |
|
01S/02S/03S/04S |
Imperial R male taper thread: R1/8 / R1/4 / R3/8 / R1/2 |
|
-00 |
Equal diameter straight, same tube size on both ends |
|
Dual digits e.g. 06-08 |
Reducing straight: front tube diameter → rear tube diameter |
|
Item |
Parameter |
|
Applicable Medium |
Compressed air, vacuum negative pressure |
|
Operating Pressure |
0~1.0MPa; Max vacuum: -95kPa |
|
Operating Temperature |
-5℃ ~ +60℃ |
|
Body Material |
Reinforced POM; Thread: Nickel-plated brass |
|
Seal Material |
NBR Nitrile Rubber |
|
Compatible Tubing |
PU tube, PA nylon tube |
|
Operation Method |
Insert to lock; press release ring to detach tube |
5.1 Male Thread with Metric Micro Thread
|
Model |
Thread |
Tube ΦD |
|
KQ2H02-M3G |
M3×0.5 |
Φ2 |
|
KQ2H02-M5 |
M5×0.8 |
Φ2 |
|
KQ2H23-M3G |
M3×0.5 |
Φ3.2 |
|
KQ2H23-M5 |
M5×0.8 |
Φ3.2 |
|
KQ2H04-M3G |
M3×0.5 |
Φ4 |
|
KQ2H04-M5 |
M5×0.8 |
Φ4 |
|
KQ2H04-M6 |
M6×1.0 |
Φ4 |
|
KQ2H06-M5 |
M5×0.8 |
Φ6 |
|
KQ2H06-M6 |
M6×1.0 |
Φ6 |

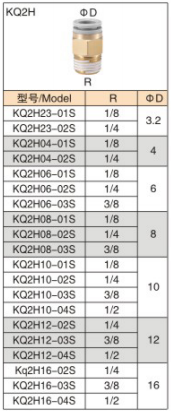

5.2 Male Thread with Imperial R Taper Thread
|
Model |
Thread |
Tube ΦD |
|
KQ2H23-01S |
R1/8 |
Φ3.2 |
|
KQ2H23-02S |
R1/4 |
Φ3.2 |
|
KQ2H04-01S |
R1/8 |
Φ4 |
|
KQ2H04-02S |
R1/4 |
Φ4 |
|
KQ2H06-01S |
R1/8 |
Φ6 |
|
KQ2H06-02S |
R1/4 |
Φ6 |
|
KQ2H06-03S |
R3/8 |
Φ6 |
|
KQ2H08-01S |
R1/8 |
Φ8 |
|
KQ2H08-02S |
R1/4 |
Φ8 |
|
KQ2H08-03S |
R3/8 |
Φ8 |
|
KQ2H10-01S |
R1/8 |
Φ10 |
|
KQ2H10-02S |
R1/4 |
Φ10 |
|
KQ2H10-03S |
R3/8 |
Φ10 |
|
KQ2H10-04S |
R1/2 |
Φ10 |
|
KQ2H12-02S |
R1/4 |
Φ12 |
|
KQ2H12-03S |
R3/8 |
Φ12 |
|
KQ2H12-04S |
R1/2 |
Φ12 |
|
KQ2H16-02S |
R1/4 |
Φ16 |
|
KQ2H16-03S |
R3/8 |
Φ16 |
|
KQ2H16-04S |
R1/2 |
Φ16 |
5.3 Equal Diameter Straight -00 Series
|
Model |
Tube ΦD |
|
KQ2H02-00 |
Φ2 |
|
KQ2H23-00 |
Φ3.2 |
|
KQ2H04-00 |
Φ4 |
|
KQ2H06-00 |
Φ6 |
|
KQ2H08-00 |
Φ8 |
|
KQ2H10-00 |
Φ10 |
|
KQ2H12-00 |
Φ12 |
|
KQ2H16-00 |
Φ16 |
5.4 Reducing Straight Series
|
Model |
Tube ① |
Tube ② |
|
KQ2H02-23 |
Φ2 |
Φ3.2 |
|
KQ2H02-04 |
Φ2 |
Φ4 |
|
KQ2H23-04 |
Φ3.2 |
Φ4 |
|
KQ2H23-06 |
Φ3.2 |
Φ6 |
|
KQ2H04-06 |
Φ4 |
Φ6 |
|
KQ2H06-08 |
Φ6 |
Φ8 |
|
KQ2H08-10 |
Φ8 |
Φ10 |
|
KQ2H10-12 |
Φ10 |
Φ12 |
|
KQ2H12-16 |
Φ12 |
Φ16 |
• Air supply and adsorption piping matching for ZH / BM / PBM / PBX vacuum generators
• Piping for micro cylinders and solenoid valves on automation equipment, installation in confined spaces
• Main air line branch, equal-diameter tube butt joint or pipe size transition
• Pneumatic test jigs, robotic pneumatic circuits
1. Cut tubing flat without burrs. Burrs will scratch sealing rings and cause air or vacuum leakage.
2. Fully insert tubing until seated to engage jaws. Always press release ring before pulling tube out; never yank forcibly.
3. Recommended for PU / PA rigid nylon tubing. Thin-wall PE soft hose is not suggested.
4. Confirm insertion depth under vacuum working conditions. For repeated negative pressure cycles, compare with BPS screw-on fittings for alternative selection.
