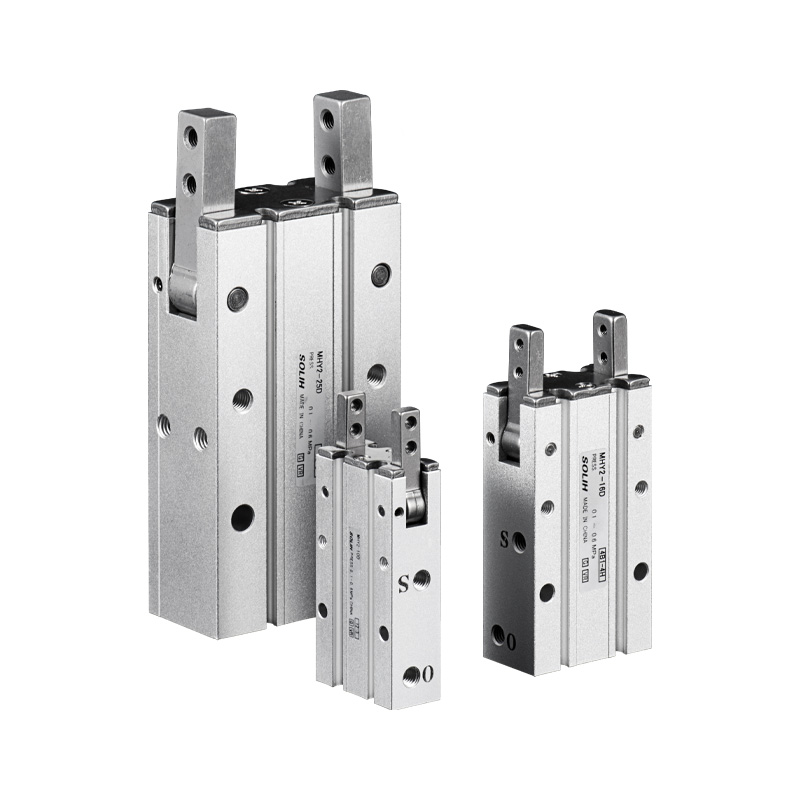

MHY2 Series 180° Cam-Driven Swing Pneumatic Gripper

Brand: SOLH by Richge Technology

Product Overview

     SOLH MHY2 series is standard 180° wide swing cam-driven 2-jaw pneumatic gripper. Core advantages: ultra-large opening angle, lightweight compact structure, anti-dust structure and stable repeat positioning. Ideal for round & irregular workpiece handling, automated loading/unloading, flipping and sorting. Simple motion trajectory enables straightforward pick & release without complex mechanical movement.

Core Structure & Operating Principle

     -- Transmission: Cam mechanism (not gear & rack). Dual pistons push cam assembly to drive two jaws synchronously. Max opening angle 180°, overclose position -3° for anti-loosening holding. Smooth synchronized swing without jaw deflection.

     -- Construction: Aluminum alloy body, stainless steel jaws as standard, built-in magnetic ring, four-side magnetic switch mounting slots. Mounting holes available on bottom and side faces. Narrow clearance design prevents dust and debris intrusion into internal mechanism.

     -- Operation Mode: Double Acting (D) only, no single acting NO/NC variants. Bidirectional air control with adjustable opening/closing speed.

     -- Positioning Accuracy: Repeat positioning accuracy ±0.02mm with consistent swing angle.

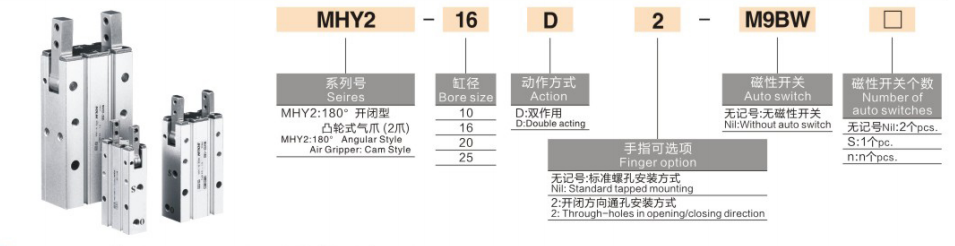

Complete Model Coding Rule

  1. Model Example：MHY2-16D-S-M9BW

  2. Standard Order Reference

     MHY2-20D-S-M9BW: Bore 20, double acting, built-in magnetic ring, M9B magnetic switch with 1m cable.

Universal Core Technical Specifications

Clamping Torque & Force Data (0.5MPa, Reference Clamp Distance L=35mm)

     Important Note: Effective clamping force decreases as clamping distance L extends. Load torque verification is mandatory during selection.

Preferred Application Scenarios

  ✅ Choose MHY2 if:

     -- Require ultra-wide 180° opening for cylindrical tubes, irregular shaped parts, loading/unloading & flipping stations

     -- Light payload compact robot end effector, lightweight design priority

     -- Workshop environment with dust and debris, demand anti-contamination internal structure

     -- Need alternative solution when MHZ2 parallel gripper cannot grip large-diameter irregular workpieces

  ❌ Not recommended, select alternative models:

     -- Need single acting normally open / normally closed power-off holding → Choose MHW2 gear swing gripper

     -- Require bore larger than 25mm and heavy clamping force → Choose MHW2 series (max bore up to 40)

     -- Pure parallel linear clamping with small opening travel → Choose MHZ2 parallel gripper

Key Selection Guidelines

     -- Select bore according to workpiece diameter & outer dimension: 10(small) →16 →20 →25(medium-large)

     -- Add suffix -S magnetic ring plus M9 series magnetic switches for PLC position feedback

     -- Mounting selection: blank for standard tapped hole; suffix -2 for through-hole installation suited for platform & bracket assembly

     -- Load check: Keep clamping distance L ≤35mm; maintain safety factor ≥1.5 for torque & clamping force

One Sentence Summary

     SOLH MHY2 cam-driven 180° wide swing pneumatic gripper adopts anti-dust cam transmission structure, double acting only, ±0.02mm repeat accuracy with optional magnetic switch and through-hole mount, lightweight compact solution for large-diameter round & irregular workpiece picking, flipping and sorting on miniature robot automation equipment.
