SCV Series Air Operated Paint Spray Valve

Brand: SOLH by Richge Technology

Product Positioning

     SCV series is a dedicated air-operated switching valve specially designed for automated paint spray production lines, split into two models: 2-way SCV12 and 3-way SCV13. Developed for switching and control of paint, thinner and purge air, it delivers fast multi-color switching, low solvent consumption during flushing and ultra-long service lifespan. As the core control component of automatic spraying and color change systems, it is widely adopted in mass coating workshops.

Core Product Advantages

1. Fast Multi-Color Switching to Boost Production Efficiency

     A single spray gun can switch between multiple paint colors without equipment replacement. One matched manifold base supports centralized control for up to 15 different colors, drastically shortening color change downtime and raising throughput of fully automatic coating lines.

2. Optimized Flow Path to Cut Thinner Consumption

     Streamlined internal fluid channel design requires minimal thinner volume to fully clean residual paint inside the valve and connected pipelines. It reduces daily solvent material cost while achieving cleaner color transition without cross-color contamination.

3. Corrosion-Resistant Composite Sealing for Paint & Solvent Media

     Internal wetted sealing structure adopts combined PTFE + FPM elastomer materials, featuring outstanding resistance to paints, thinners and industrial cleaning solvents. No swelling, aging or chemical erosion under long-term contact with aggressive coating fluids.

4. Isolated Diaphragm Construction Anti-Paint Adhesion & Extended Lifespan

     Special separating diaphragm structure completely isolates the driving actuator from paint media; the internal moving core never directly contacts coating liquid. Compatible with oil mist lubrication for pneumatic actuators, with a verified service life exceeding 5 million switching cycles.

5. Full Pneumatic Drive for Intrinsic Safety in Coating Zones

     100% air-operated actuation with zero electrical components, eliminating electric spark ignition risks in flammable paint and solvent workshops. Stable switching action with fast response for continuous round-the-clock coating operation.

6. Dual Mounting Design: Standalone & Manifold Stackable

     Supports two installation modes: independent single-valve mounting or dense stacked manifold assembly. Compact stacked layout saves workshop installation space and arranges piping neatly, perfectly matching standard modular color change control units.

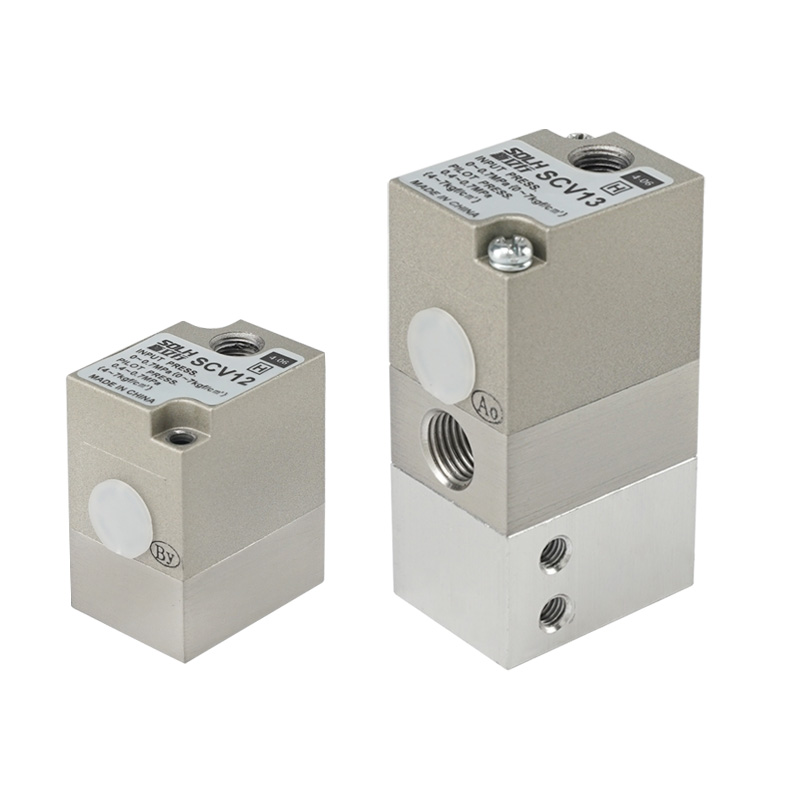

Model Classification & Functional Application

     --SCV12 (2/2 Way Air Operated Valve): For thinner supply, purge air control and pipeline solvent flushing circuits

     -- SCV13 (3/2 Way Air Operated Valve): For paint feeding, circulation loop and continuous coating material supply control

Full Technical Specifications

Typical Industrial Application Scenarios

     --Automatic coating production lines for automotive parts, home appliances, furniture and metal hardware

     -- Centralized paint supply & fast multi-color switching manifold systems for spray guns

     -- On-off switching control for paint circulation, thinner flushing and purge air circuits

     -- Coating machinery requiring solvent resistance, low solvent waste, long service life and explosion-safe pneumatic design

One Sentence Summary

     SOLH SCV dedicated air-operated spray coating valve enables ultra-fast multi-color switching, reduced thinner consumption, full solvent-resistant PTFE/FPM sealing, 5-million-cycle long lifespan and spark-free all-pneumatic operation, serving as the standard core component for automated paint line color change manifold systems.
