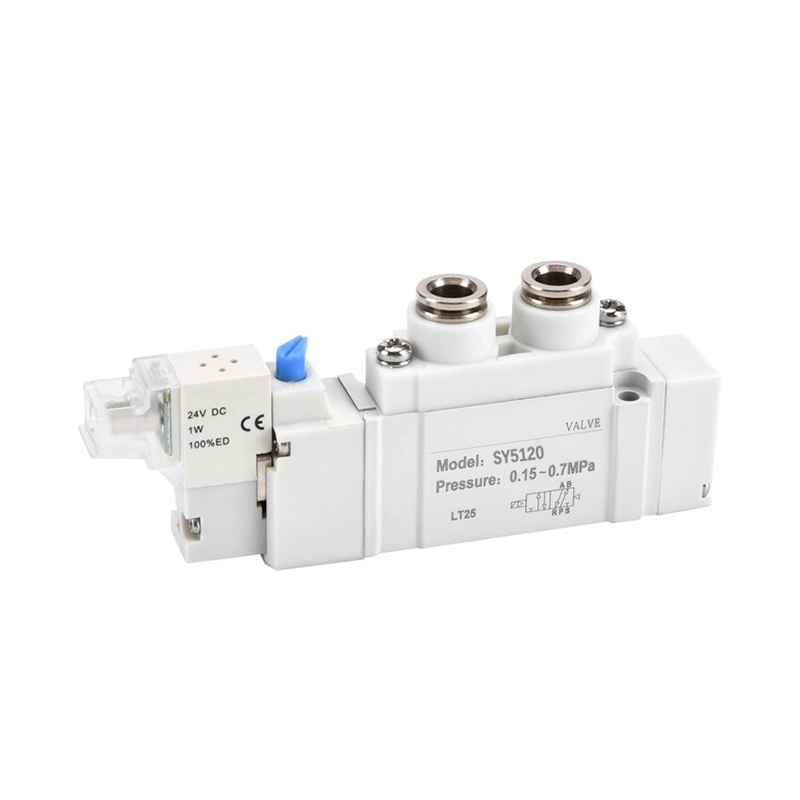

SY Series Pilot Operated 5-Port Solenoid Valve

Brand: SOLH by Richge Technology

Product Positioning

     SOLH SY series is mainstream pilot-operated 5-port solenoid valve, featuring ultra-compact body, ultra-low power consumption and greatly upgraded flow capacity. It serves as the core directional control component for cylinder reciprocation and pneumatic circuit switching on all automated production equipment, fully interchangeable with original SMC SY series.

Full Series Size Classification & Matching Scope

Universal Core Technical Specifications

  1. Circuit Types:

     -- 5/2-way (single spring return / double latching coil);

     -- 5/3-way (3 center functions: Center Closed / Center Exhaust / Center Pressure Supply)

  2. Operating Pressure Range

     -- Internal pilot: 0.1 ~ 0.7 MPa

     -- External pilot (vacuum compatible): -100 kPa ~ 0.7 MPa

  3. Operating Temperature: -10 ~ 50℃ (no icing in air source)

  4. Coil Power Consumption: Standard coil 0.35W; energy-saving low-power coil only 0.1W

  5. Protection Grade: Plug connector IP65; manifold mounting base IP67

  6. Service Lifespan: Gap sealing spool up to 200 million cycles; elastic seal up to 70 million cycles

  7. Standard Voltage Options: DC12V / DC24V (mass mainstream); AC110V / AC220V

Structural & Core Performance Advantages

  1. Quick Plug-In Manifold Mount Structure

     -- Directly snap onto SS5Y series manifold base, fast assembly and disassembly, easy single-valve maintenance without dismantling the whole valve island.

  2. Ultra-Low Energy-Saving Coil

     -- Optional 0.1W low-power coil, low heat generation, perfectly suitable for long-term continuous energized working conditions, greatly cutting factory compressed air & power cost.

  3. Greatly Optimized High Flow Runner

     -- Internal streamline optimized design, flow capacity increased by about 80% compared with old-generation solenoid valves, realizing faster cylinder extension/retraction speed without pressure loss.

  4. Built-In Pilot Filter Screen

     -- Integrated tiny filter mesh on pilot valve inlet to block dust and impurities, effectively reducing spool jamming failure rate and extending service life.

  5. Multi-Directional Flexible Port Layout

     -- Air ports available on side / top / bottom three directions, freely adjust tubing routing to avoid mechanical interference inside compact equipment frames.

  6. Modular Valve Island Integration

     -- Perfectly matched with SS5Y3 / SS5Y5 / SS5Y7 / SS5Y9 series multi-station manifold bases, realize centralized unified air supply & exhaust, tidy wiring layout and save cabinet installation space.

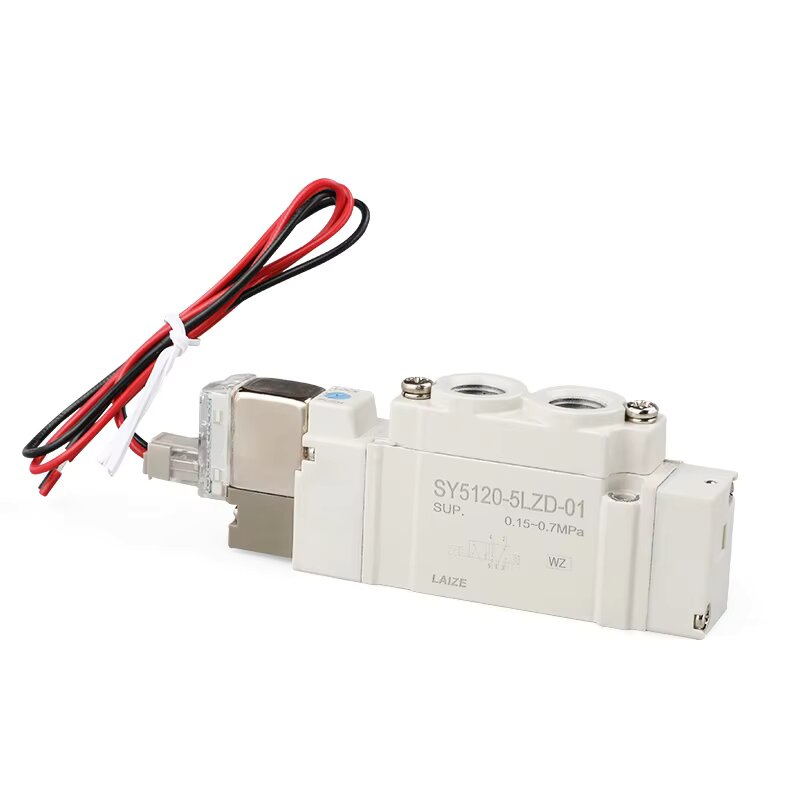

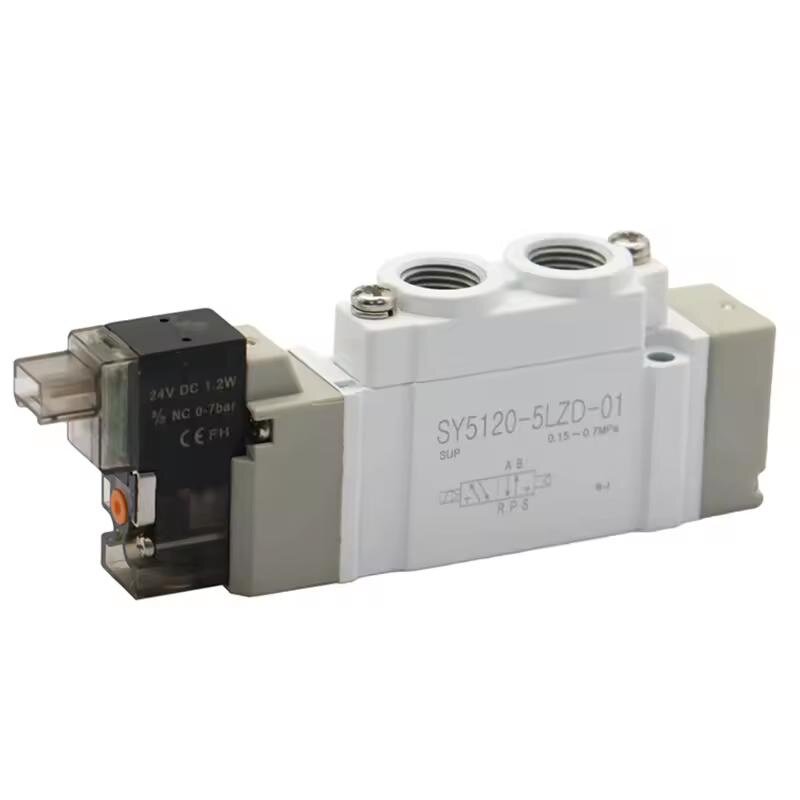

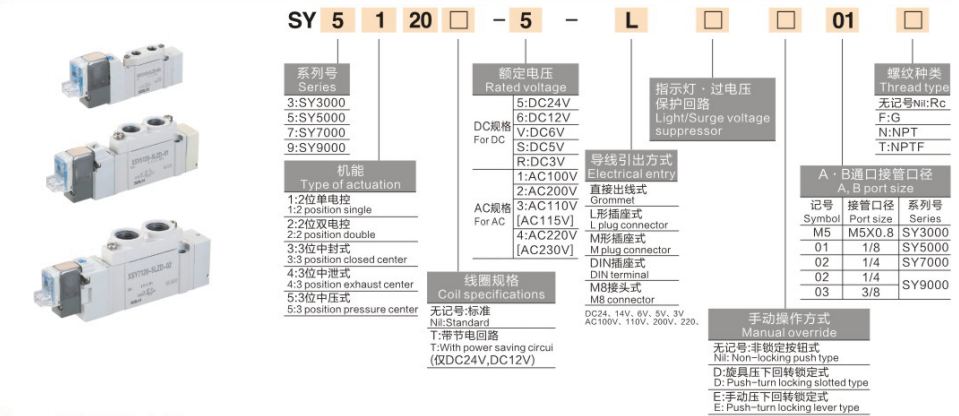

Complete Model Coding Rule (Example: SY5120-5LZD-01)

  1. SY: Series code of pilot operated 5-port solenoid valve

  2. 5: Size series number (5 = SY5000 medium series)

  3. 1: Circuit function code

     1 = 5/2 single coil spring return;

     2 = 5/2 double latching coil;

     3 = 5/3 three-position valve

  4. 2: Internal structural base code

  5. 0: Standard base mounting type

  6. 5: Coil voltage code (5 = DC24V, mainstream)

  7. LZ: Socket & protection configuration

     L = L-shaped plug socket; Z = built-in LED indicator + overvoltage protection circuit

  8. D: Manual override code (push-turn locking screwdriver operation)

  9. 01: Port thread size (01 = Rc1/8")

Typical Industrial Application Scenarios

     -- Automated assembly production lines, semiconductor precision equipment, packaging machinery

     -- Automotive stamping & welding production lines, medical testing instruments

     -- Pneumatic robotic grippers, linear slide cylinders, rotary indexing actuators

     -- Cylinder forward/retreat switching, pneumatic circuit on-off and speed regulating control

One Sentence

     SummarySOLH SY series pilot-operated 5-port solenoid valve covers SY3000/SY5000/SY7000/SY9000 full size range with 0.1W energy-saving coil, IP65/IP67 dustproof & waterproof grade, 80% higher flow than old models and plug-in SS5Y manifold compatibility, the universal compact directional control valve for cylinder automation in electronics, automotive, packaging and medical equipment.
