VM1 (VM100) Series Mini 2/3 Port Mechanical Poppet Valve

Brand: SOLH by Richge Technology

 Product Positioning

     VM1 (VM100) series is a miniature 2/3 port mechanical poppet valve fully interchangeable with SMC original models. It adopts reliable poppet sealing structure with ultra-compact lightweight outline, wide operating pressure range covering vacuum and positive pressure, and abundant interchangeable actuator heads. Widely used for equipment position detection, stroke limit sensing, manual jog operation and small air circuit switching on compact automated machinery.

Core Technical Specifications (VM100 / VM1 Series)

  1 Basic Parameters

     -- Circuit Types: 2-port (NC / NO), 3-port (N.C. / N.O.)

     -- Structure: Direct acting poppet type with tight sealing performance

     -- Applicable Fluid: Compressed air, inert gas

     -- Operating Pressure Range: -100kPa ~ 1.0MPa (vacuum compatible)

     -- Ambient & Medium Temperature: -5 ~ +60℃ (no internal icing)

     -- Port Thread Sizes: M5, Rc1/8 (NPT1/8 & G1/8 optional)

     -- Flow Capacity: Cv=0.11, effective sectional area 2.5mm²

     -- Net Weight: Side port version 60g, bottom port version 67g (ultra-lightweight)

     -- Piping Layout Options: Side port, bottom port

     -- Lubrication Requirement: Lubrication-free operation

  2. Overall Dimensions

     -- Side port model: 11 × 36 × 16 mm

     -- Bottom port model: 11 × 28 × 25 mm

 Circuit Definition & Working Logic (3-port / 2-port)

   1. 3-port Type (VM13x, Most Popular)· Port 1(P): Air supply inlet

     -- Port 2(A): Control output

     -- Port 3(R): Exhaust port

     -- Normally Closed NC: Unactuated → P cut off from A, A connected to R

     -- Normally Open NO: Unactuated → P connected to A, A cut off from R

   2. 2-port Type (VM12x)

     -- Port 1(P): Fluid input

     -- Port 2(A): Control output

     -- Normally Closed logic: Air passage opens when pressed, cuts off after release

Full Range of Interchangeable Actuator Heads

  1. Basic Straight Plunger Type

     -- VM130 / VM120: Standard 4.8mm stroke plunger

     -- VM130U / VM120U: Short 2.5mm stroke plunger

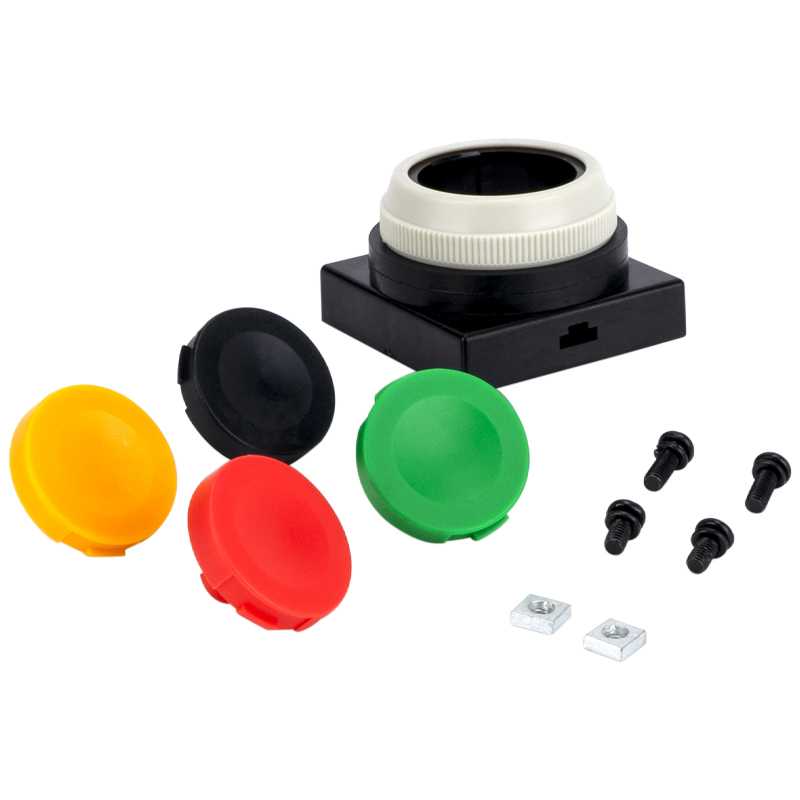

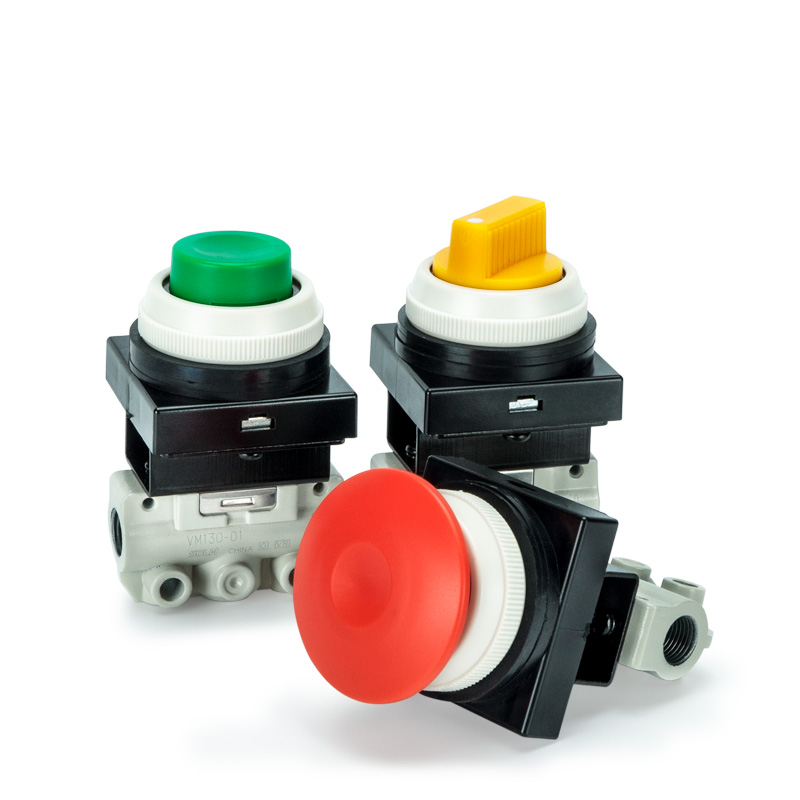

  2. Pushbutton Type (Manual Jog Operation)

     -- VM132 / VM122: Flat standard pushbutton

     -- VM132Y / VM122Y: Yellow mushroom head for emergency stop & high visibility

     -- VM132G / VM122G: Green indicator pushbutton

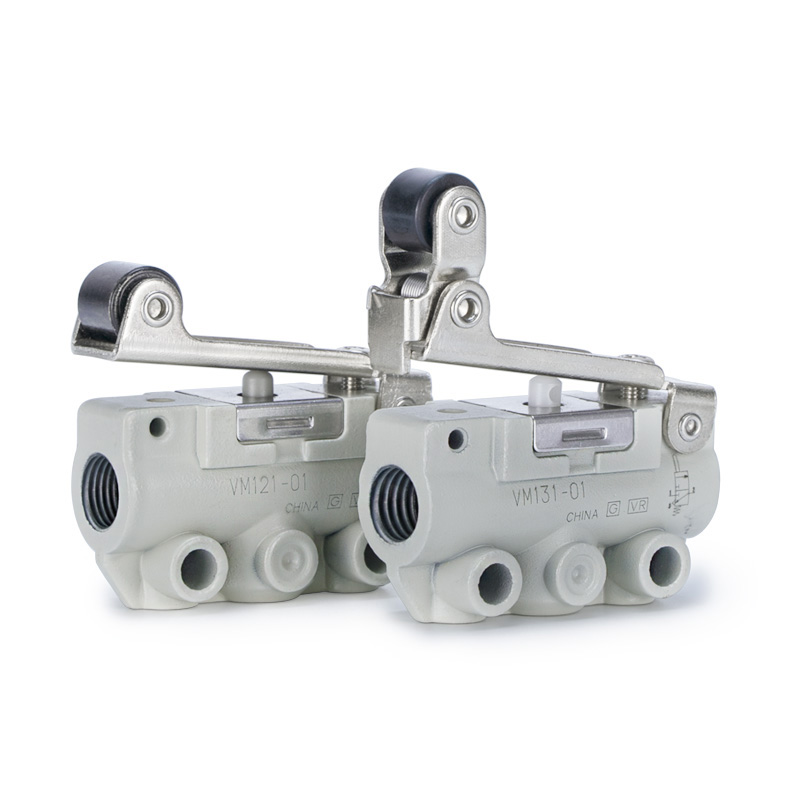

  3. Roller Lever Type (Stroke & Limit Detection)

     -- VM131 / VM121: Standard straight roller lever

     -- VM131U / VM121U: Short travel roller lever

     -- VM133 / VM123: One-way anti-rebound roller lever

  4. Optional Extra Actuators

     Hinge lever, toggle lever, lockable rotary knob and more customized trigger heads

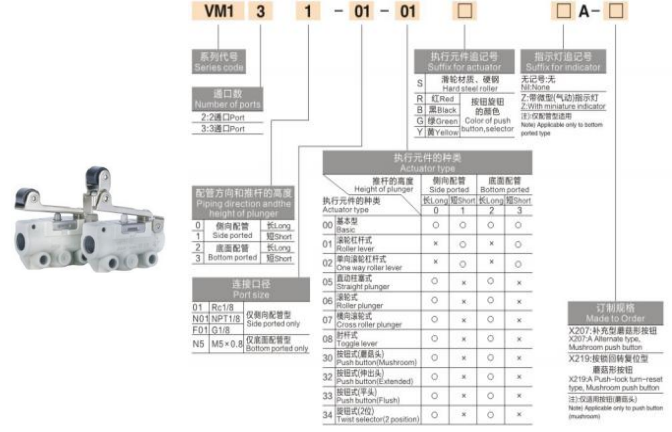

 Model Code Explanation

  1.  (Example: VM131-01-01A)

     -- VM131: 3-port circuit + roller lever actuator

     -- 01: Port thread code (M5=M5; Rc1/8=01; NPT1/8=N01; G1/8=F01)

     -- 01: Side port layout (02 = bottom port layout)

     -- Suffix code: A=standard; Y=yellow mushroom; G=green button; U=short stroke

  2. Common Standard Models

     -- VM131-01-01A: 3-port roller lever, Rc1/8, side port (most widely used)

     -- VM132-M5-00A: 3-port flat pushbutton, M5 thread, bottom port

     -- VM130U-01-N01Y: 3-port short plunger, NPT1/8, yellow mushroom emergency head

Core Product Advantages

     -- Ultra-small & ultra-light: Only 60g with 11mm narrow width, perfect for internal machine embedding and dense panel stacking installation

     -- Wide universal pressure range: Compatible with full vacuum up to 1.0MPa positive pressure for multi-purpose circuit control

     -- Durable poppet sealing structure: Excellent air tightness, long service life and strong dust contamination resistance

     -- Flexible piping & mounting: Side / bottom port options, side mounting, bottom mounting, optional bracket base (VM1-B)

     -- Lubrication-free design: Low maintenance cost and clean air loop operation

     -- Complete actuator portfolio: Matches manual jog, stroke limit, safety emergency stop and all mechanical trigger working scenarios

Typical Application Scenarios

     -- Machine stroke limit switches: Cylinder full-stroke position feedback detection

     -- Manual jog & equipment commissioning: Panel pushbutton manual test air circuits

     -- Safety interlock & emergency stop loops: Yellow mushroom head actuator for machine safety

     -- Mini jigs & clamping fixtures: Clamp / unclamp pneumatic switching

     -- Vacuum control circuits: Stable switching under -100kPa vacuum condition

     -- General automation equipment: Mechanical trigger air signal & position feedback circuits

One Sentence Summary

     SOLH VM1 miniature mechanical poppet valve features ultra-light 60g compact body, reliable poppet sealing, full vacuum ~ 1.0MPa operating range, dual side/bottom port layout and complete interchangeable actuator heads, serving as the preferred mechanical trigger air control valve for all small automated equipment.
