VM2 (VM200) Series Medium 2/3 Port Mechanical Poppet Valve

Brand: SOLH by Richge Technology

Product Positioning

     VM2 (VM200) series is a medium-size 2/3 port mechanical poppet valve fully interchangeable with SMC standard models. Adopting reliable poppet sealing construction, it features remarkable high flow capacity (Cv≈0.87), universal Rc1/4 standard port, robust industrial build and complete interchangeable actuator heads. It is the mainstream mechanical control valve for stroke limit detection, manual operation and air circuit switching on all kinds of automated machinery.

Core Technical Specifications

  1 Basic Parameters

     -- Series Code: VM200 (short name VM2)

     -- Circuit Types: 2-port (VM22x), 3-port (VM23x, normally closed NC as standard)

     -- Structure: Direct acting poppet type with excellent sealing and long service life

     -- Applicable Fluid: Compressed air, inert gas

     -- Operating Pressure Range: 0 ~ 1.0 MPa (vacuum incompatible)

     -- Ambient & Medium Temperature: -5 ~ +60℃ (no icing allowed)

     -- Port Thread: Rc1/4 (02); optional NPT1/4 (N02), G1/4 (F02)

     -- Flow Performance: Effective sectional area 19 mm², Cv = 0.87

     -- Net Weight: Standard model 90 g

     -- Piping Layout: Side port (01), bottom port (00)

     -- Lubrication Requirement: Lubrication-free; ISO VG32 turbine oil lubrication optional

  2. Overall Outer Dimensions (mm)

     -- Side port version: 17 × 44 × 25

     -- Bottom port version: 17 × 44 × 30

Circuit Definition & Working Logic (3-port / 2-port)

  1. 3-port Model (VM23x, Most Widely Used)

     -- Port 1(P): Main air supply inlet

     -- Port 2(A): Control signal output

     -- Port 3(R): Exhaust port

     -- NC Normally Closed Logic: Unactuated → P cut off from A, A connected to R; After actuation → P connects to A, A cuts off exhaust R

  2. 2-port Model (VM22x)

     -- Port 1(P): Fluid input

     -- Port 2(A): Control output

     -- Normally Closed: Air channel opens when pressed, cuts off immediately after release

Full Interchangeable Actuator Head Portfolio

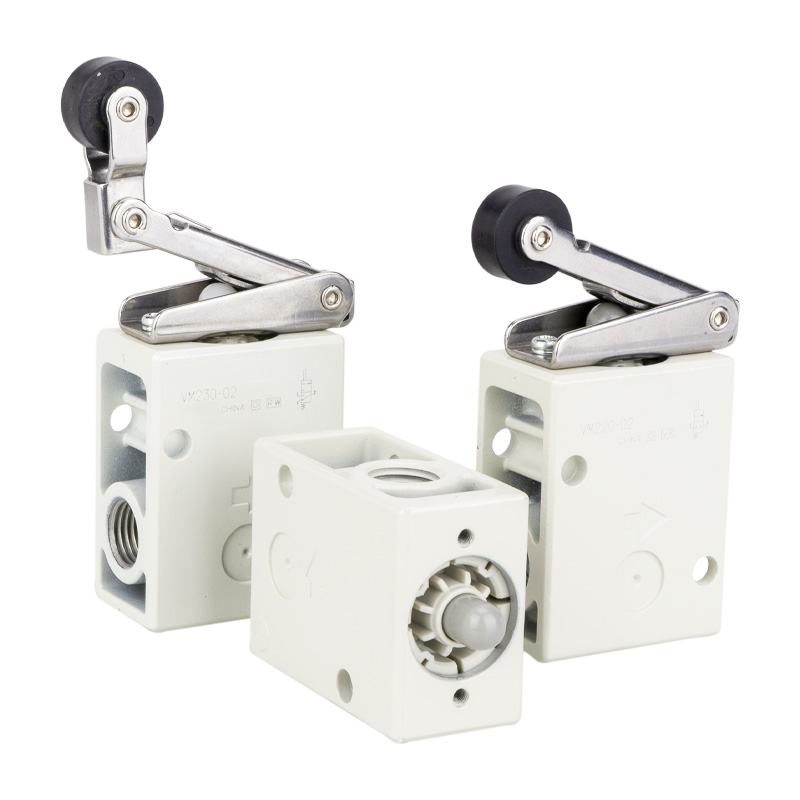

  1. Roller Lever Type (For Stroke Limit Detection, Most Popular)

     -- VM231/221: Standard POM plastic roller lever

     -- VM231S/221S: Hardened steel roller for heavy-duty abrasion-resistant working conditions

     -- VM233/223: One-way anti-rebound roller lever

  2. Straight Plunger Type

     VM230/220: Standard straight push plunger

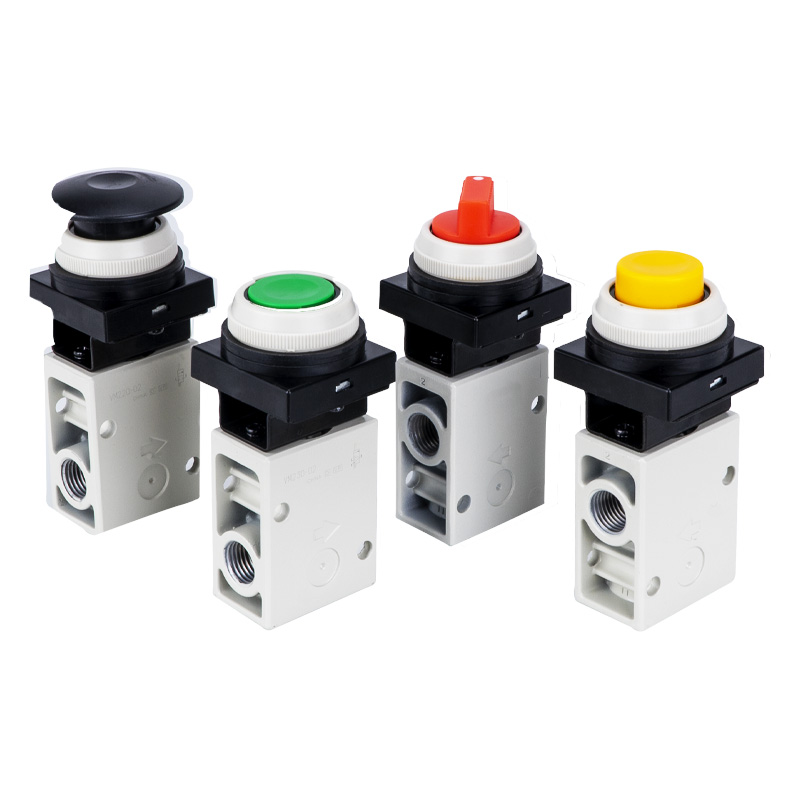

3. Pushbutton Type (For Manual Jog Operation)

     -- VM232/222: Flat standard pushbutton

     -- VM232Y/222Y: High-visibility yellow mushroom head for emergency stop

     -- VM232G/222G: Green indicator pushbutton

  4. Optional Special Actuators

     Hinge lever, toggle lever, lockable rotary knob, bidirectional lever and other customized trigger heads

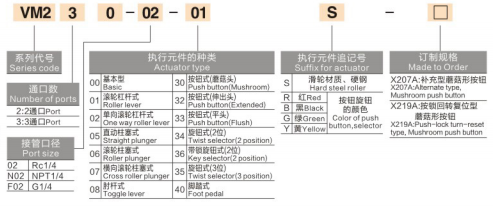

 Model Code Explanation

   1. (Example: VM231-02-01S)

     -- VM231: 3-port circuit + roller lever actuator

     -- 02: Port thread size (Rc1/4=02; N02=NPT1/4; F02=G1/4)

     -- 01: Side port layout (00 = bottom port layout)

     -- S: Hardened steel roller (no suffix = standard POM roller)

     -- Color suffix: A=standard black; Y=yellow mushroom; G=green button

  2. Common Standard Models

     -- VM231-02-01A: 3-port, POM roller, Rc1/4, side port (universal general-purpose model)

     -- VM231S-02-01A: 3-port, hardened steel roller, Rc1/4, side port (heavy abrasion-resistant working conditions)

     -- VM230-02-00A: 3-port, straight plunger, bottom port

     -- VM232Y-02-01A: 3-port, yellow mushroom emergency stop button, side port

Core Product Advantages

     -- Medium high flow performance: Cv=0.87, nearly 8 times higher flow capacity than mini VM1 (Cv=0.11), perfectly matching medium-flow pneumatic circuits

     -- Universal Rc1/4 port: Standard mainstream thread size for automation equipment with excellent cross-model compatibility

     -- Reliable poppet sealing: Good air tightness, dust contamination resistance, fast response and extended service life

     -- Dual piping layout support: Side & bottom port options for flexible dense panel installation layout

     -- Complete actuator coverage: Roller lever, plunger, flat button and mushroom head available to cover mechanical limit, manual jog and emergency stop all scenarios

     -- Heavy-duty robust construction: Metal valve body; S suffix hardened steel roller optional for harsh industrial continuous operation

     -- Lubrication-free design: Low maintenance workload, clean and eco-friendly air circuit operation

Typical Application Scenarios

     -- Equipment stroke limit sensing: Cylinder / slide table full position detection with roller lever actuator

     -- Manual jog control: On-site machine commissioning and panel operation via pushbutton

     -- Safety emergency interlock: Yellow mushroom head for rapid air circuit cut-off

     -- Jig & fixture switching: Clamp / unclamp pneumatic loop control

     -- Automated production lines: Workstation position signal and mechanical safety interlock circuits

     -- Packaging, textile and printing machinery: High-frequency mechanical trigger control loops

Selection Comparison: VM1 VS VM2 Quick Reference Table

One Sentence Summary

     SOLH VM2 medium-size mechanical poppet valve is equipped with universal Rc1/4 port, Cv=0.87 high flow capacity, full range interchangeable actuators and dual side/bottom piping options, acting as the standard mainstream mechanical control valve for all industrial automation pneumatic switching circuits.
