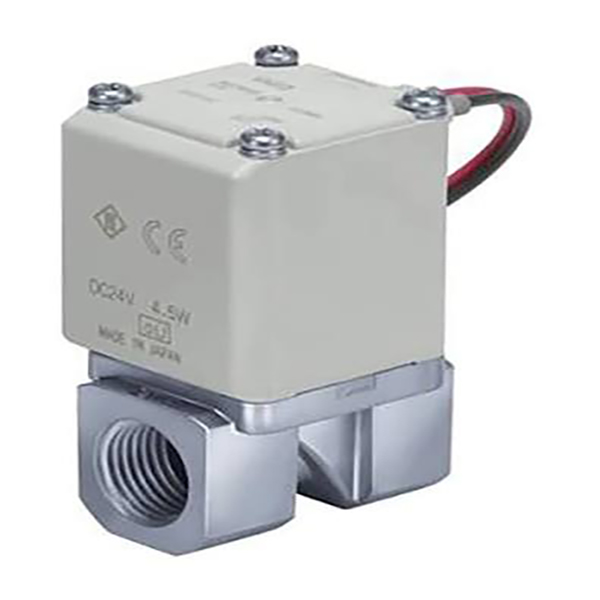

VX23 Series Direct Acting 2/2 Way Solenoid Valve

Brand: SOLH by Richge Technology

1. Product Positioning

     SOLH VX23 series is a direct acting 2/2 way solenoid valve with multi-medium compatibility, zero-pressure startup and compact high-flow performance. It controls on-off of air, water, oil, medium vacuum and warm water circuits. As a universal high-frequency switching valve, it is widely applied in compact equipment air blowing, cooling, lubrication and medium vacuum control loops.

2. Core Key Features

--Direct Acting Design with Zero-Pressure Startup

     No minimum operating pressure required. Stable opening and closing across full 0–1.0 MPa pressure range, reliable for vacuum, low-pressure and zero differential pressure working conditions.

-- Multi-Medium Universal Compatibility

     Works smoothly with compressed air, tap water, hydraulic oil, medium vacuum and warm water. Single valve covers multiple fluid applications to reduce model selection types and inventory costs.

-- Compact Lightweight with Enhanced Flow Capacity

     Smaller size and lighter weight than equivalent standard valves, with flow rate increased by around 20%. Occupies minimal installation space, ideal for dense layout and modular integrated equipment.

-- Low Noise & Anti-Sticking Structure

     Built-in buffer and clearance design weakens impact noise of iron core movement. Hardly stuck by high-viscosity fluids, delivering stable shut-off response for long-cycle operation.

-- IP65 High Protection & Long Service Life

     IP65 dustproof and splash-proof housing structure. Coil insulation Class B / Class H optional, stable under continuous long-time energization with extended service lifespan.

-- Easy Piping & Manifold Mount Support

     Compatible with quick push-in tube fittings. Supports independent single mounting and manifold stacked assembly, simplifying wiring and piping to improve maintenance efficiency.

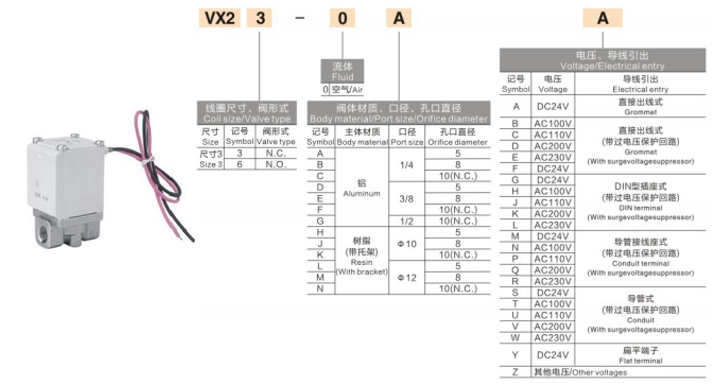

3. Full Technical Specifications

     --Circuit Type: 2/2 Way, Direct Acting

     --Standard Function: Normally Closed NC (Closed when power off, Open when energized)

     --Applicable Fluids: Air, water, oil, medium vacuum, warm water

     --Operating Pressure Range: 0–1.0 MPa

     --Proof Pressure: 1.5 MPa

     --Ambient & Medium Temperature: -20℃ ~ +60℃ (Class H coil supports higher temperature)

     --Seal Material: NBR, FKM optional

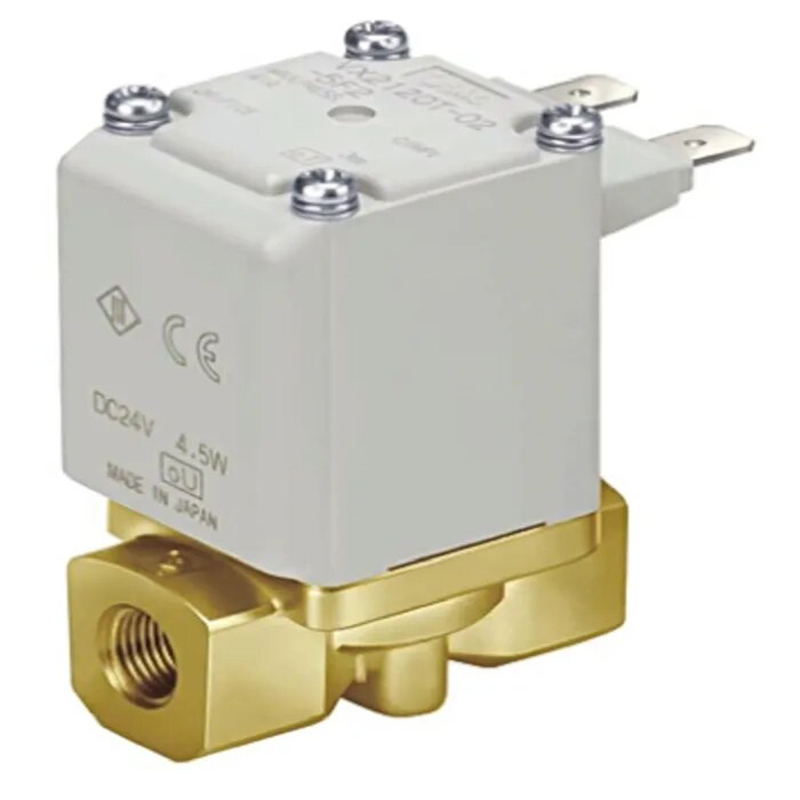

     --Valve Body Material: Aluminum alloy, C37 brass, SUS stainless steel, engineering resin

     --Port Sizes: 1/4", 3/8", 1/2"

     --Optional Coil Voltages: DC12V / DC24V, AC100V / AC110V / AC200V / AC220V

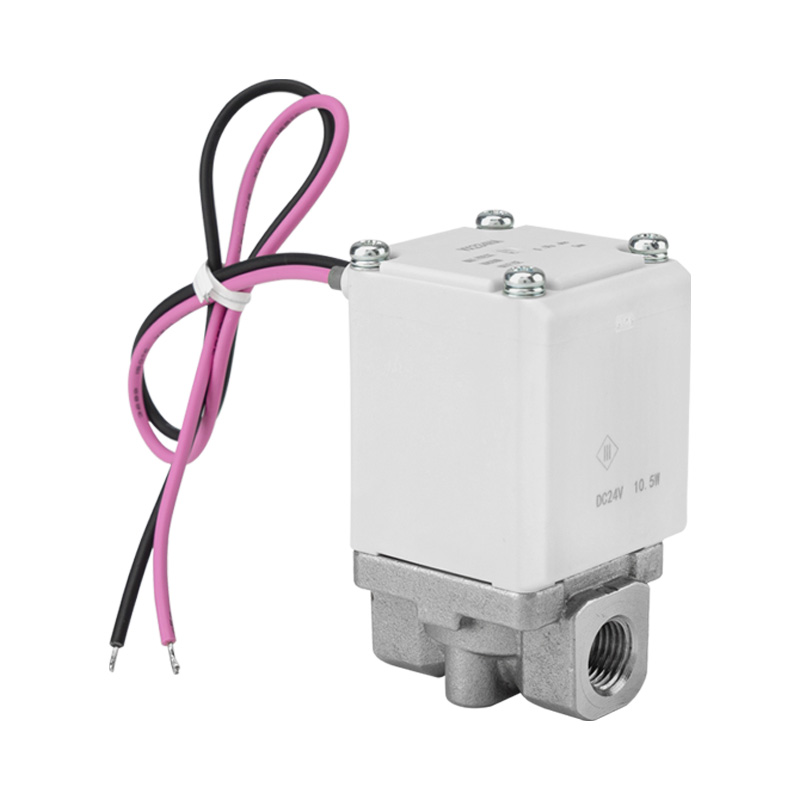

     --Power Consumption: DC version approx. 10.5W

     --Protection Grade: IP65

     --Mounting Mode: Single standalone / manifold stack mount4. Typical Application Scenarios· Automated equipment circuits: Air blowing, fluid jetting, cooling and lubrication control

     --Water treatment, cleaning machines and small fluid pipeline on-off control

     --Vacuum adsorption, vacuum break and medium vacuum systems

     --Mini fluid control for packaging, electronics, printing and food processing machinery

     --General working conditions requiring zero-pressure startup, multi-medium compatibility, compact outline and durable performance

One Sentence Summary

     SOLH VX23 direct acting 2/2 way solenoid valve features zero-pressure startup, universal multi-medium adaption, compact high-flow design, IP65 protection and manifold mount capability, acting as a cost-effective general-purpose valve for small fluid on-off control systems.
