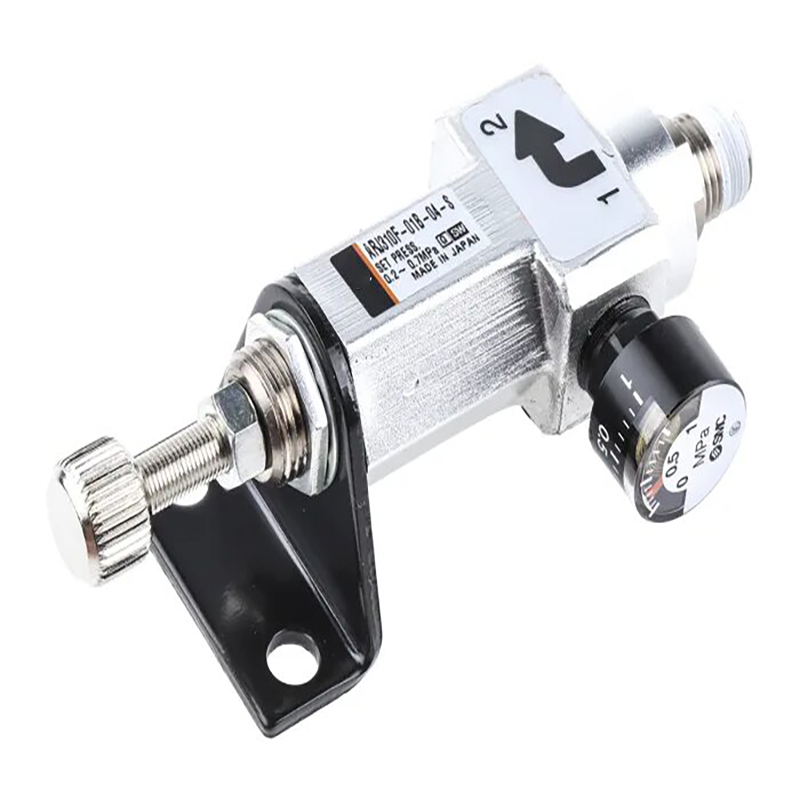

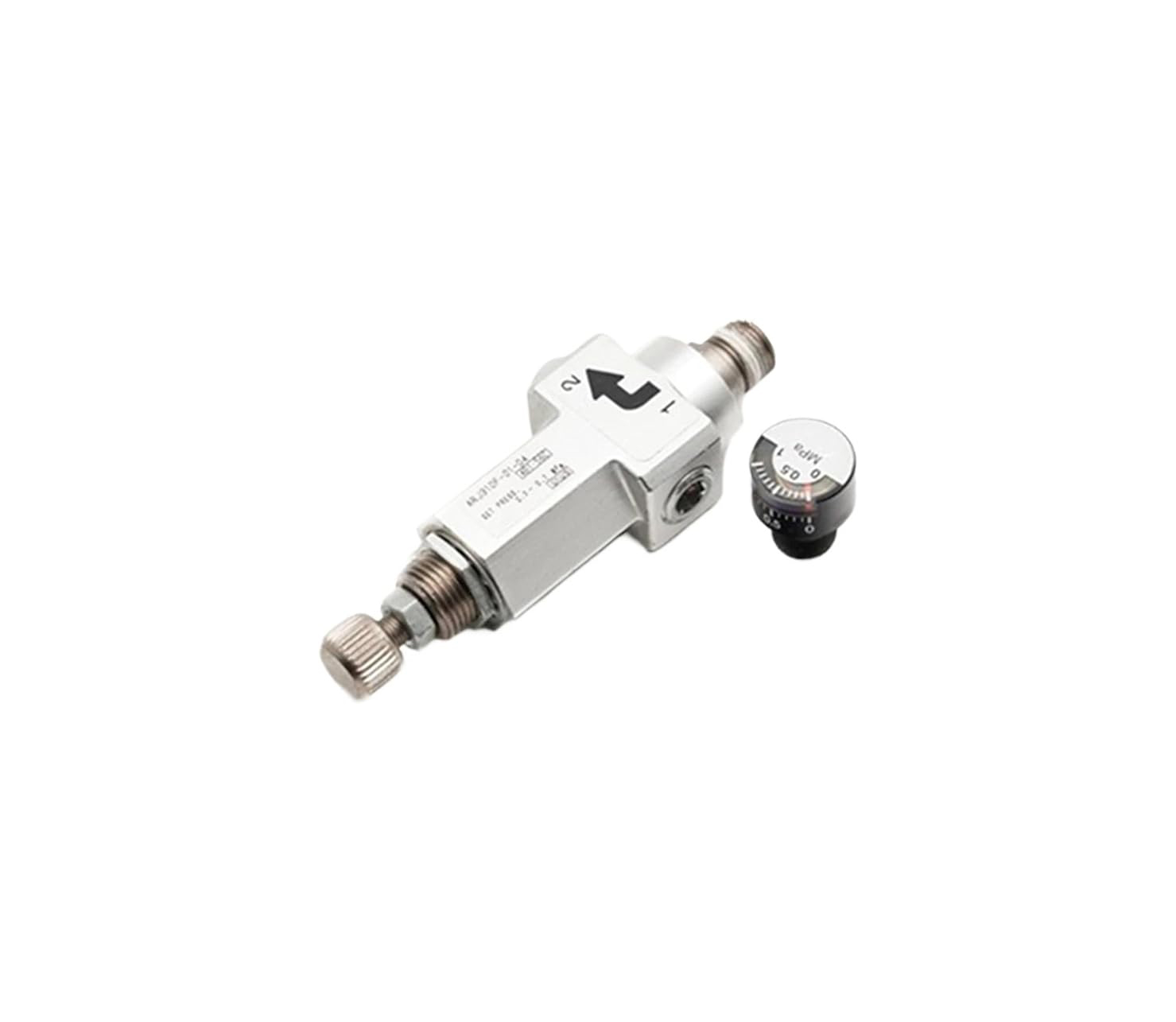

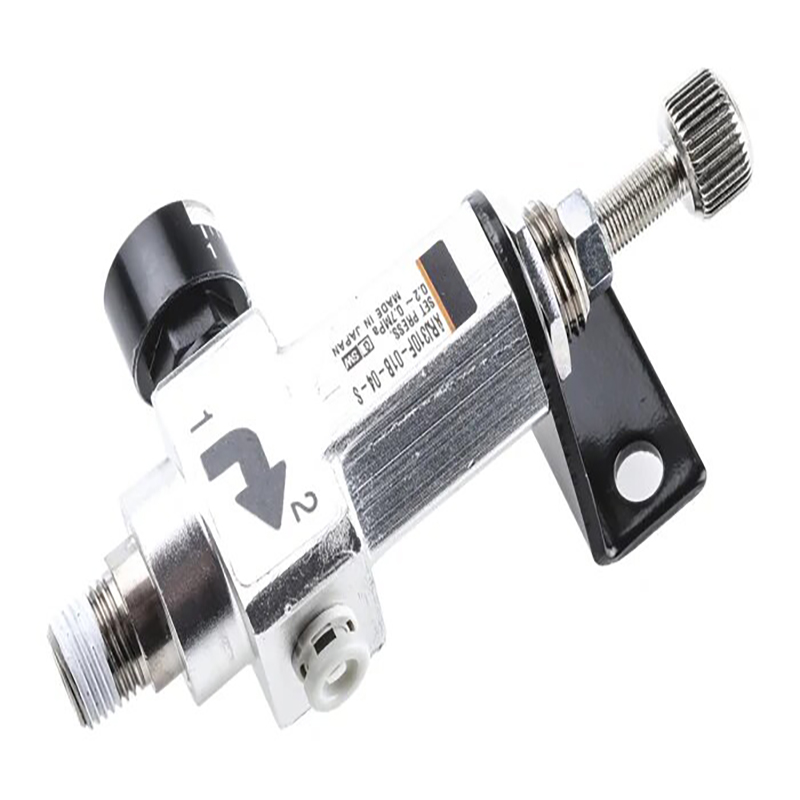

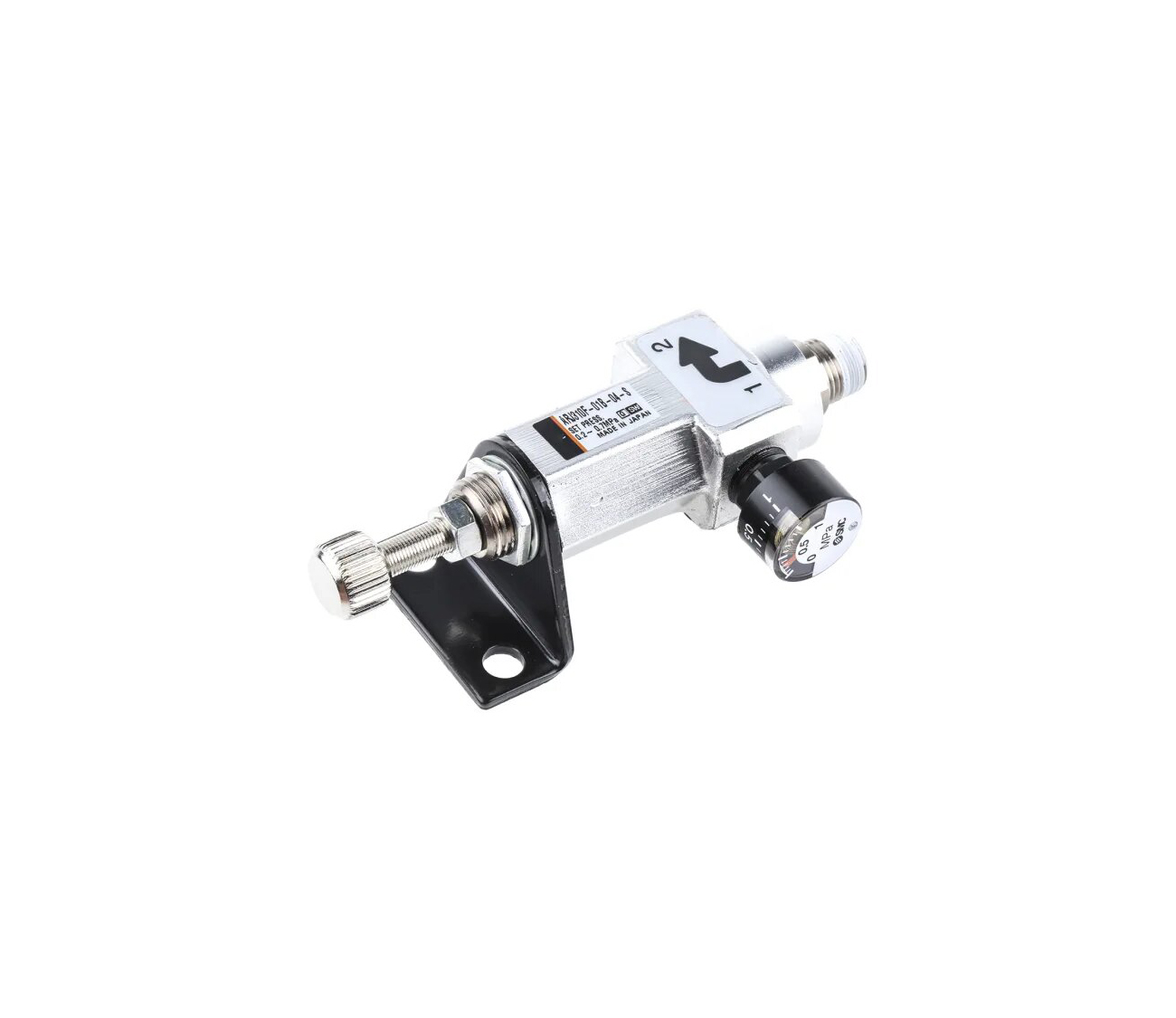

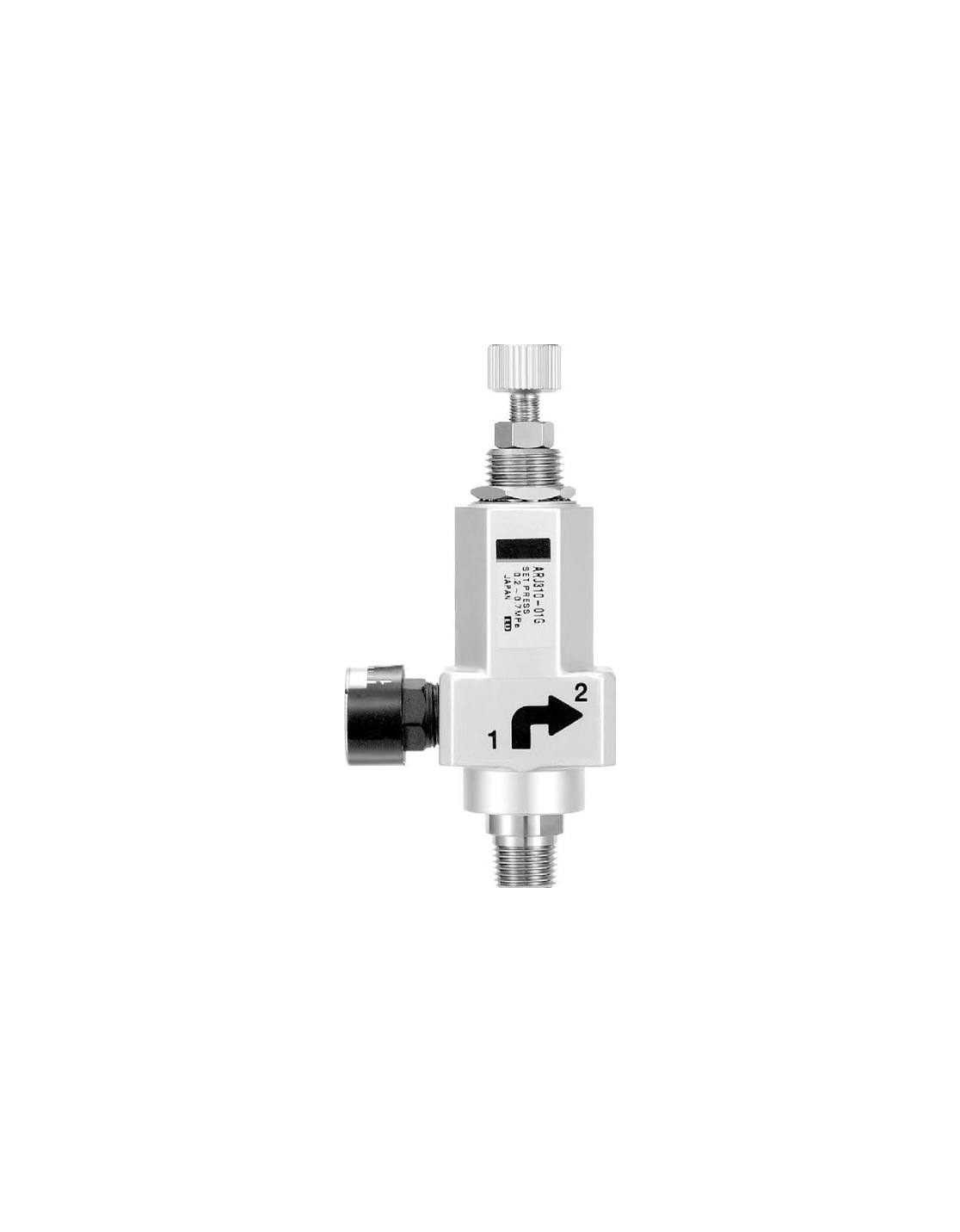

ARJ310 Series Miniature Pressure Regulator (Relief Direct Operated)

Brand: SOLH by Richge Technology (睿其格科技)

Product Overview

     SOLH ARJ310 series is a direct-acting relief ultra-compact precision pressure regulator for narrow installation spaces and low-flow high-precision pressure control. Its overall dimensions and performance are fully interchangeable with SMC ARJ310 original regulators for direct equipment replacement.

Structure & Core Functions

     --Structure: Direct-acting piston type with built-in relief vent

     --Two-port layout (IN / OUT); excess pressure automatically exhausted through internal relief channel

     --Function: Steadily lower inlet air pressure to preset output value, suppress pressure fluctuation and offer overpressure protection

     --Integrated design with one-touch push-in outlet and dual optional inlet threads for flexible wiring

Technical Specifications

     --Working Medium: Clean & general industrial compressed air

     --Max Operating Pressure: 0.8 MPa

     --Proof Pressure: 1.2 MPa

     --Adjustable Pressure Range

     --Standard range: 0.2–0.7 MPa

     --Low-pressure version: 0.05–0.2 MPa

     --Ambient & Medium Temperature: -5℃ ~ +60℃ (no internal freezing)

     --Net Weight: Approx. 65g

     --Body Width: 18.5 mm, suitable for dense manifold stacking

     --Protection Grade: IP65

Port Configuration

Inlet Port (Two Selectable Styles)

     --M5×0.8 internal thread

     --Rc1/8 external thread

Outlet Port

     Rc1/8 female thread with integrated push-in connector, compatible with φ4/φ6 metric tubing, 5/32" & 1/4" imperial tubing

Gauge Port

     Rc1/8 female thread, matches G15 series mini pressure gauges

Model Code Definition (Example: ARJ310F-01-04)

     --ARJ310: Mini regulator base series

     --F: Equipped with built-in push-in fitting; omitted for full threaded version

     --01: Rc1/8 thread standard

     --04: For φ4 tubing; 06 represents φ6 tubing

     --N01: NPT1/8 thread option

Hot Selling Models

     --ARJ310-01: Full threaded version without push-in port

     --ARJ310F-01-04: Integrated push-in for φ4 hose

     --ARJ310F-01-06: Integrated push-in for φ6 hose

     --ARJ310F-N01-03: NPT1/8 threaded inlet

Core Product Advantages

     --Ultra-small lightweight design: 65g weight and 18.5mm narrow body fits highly compact equipment layouts

     --Dual inlet thread options (M5 / Rc1/8) to adapt diverse piping layouts

     --Factory-built push-in outlet eliminates extra connectors and shortens assembly time

     --Built-in relief mechanism automatically releases overpressure for stable output pressure

     --Supports panel nut and external bracket dual mounting methods

     --Direct-acting structure enables low startup pressure down to 0.05 MPa

Typical Application Scenarios

     Mini air cylinders, tiny pneumatic grippers, precision air blowing nozzles Electronics assembly, medical devices, semiconductor production and inspection equipment Fluid dispensers, air leakage testing instruments Compact automation machinery, valve islands and mini FRL air treatment units

Model Comparison: ARJ310 VS ARJ210

One Sentence Summary

     ARJ310 relief mini pressure regulator features ultra-compact body, dual-thread inlet, integrated push-in connector and high precision, serving as the optimal pressure control solution for low-flow compact pneumatic systems.
