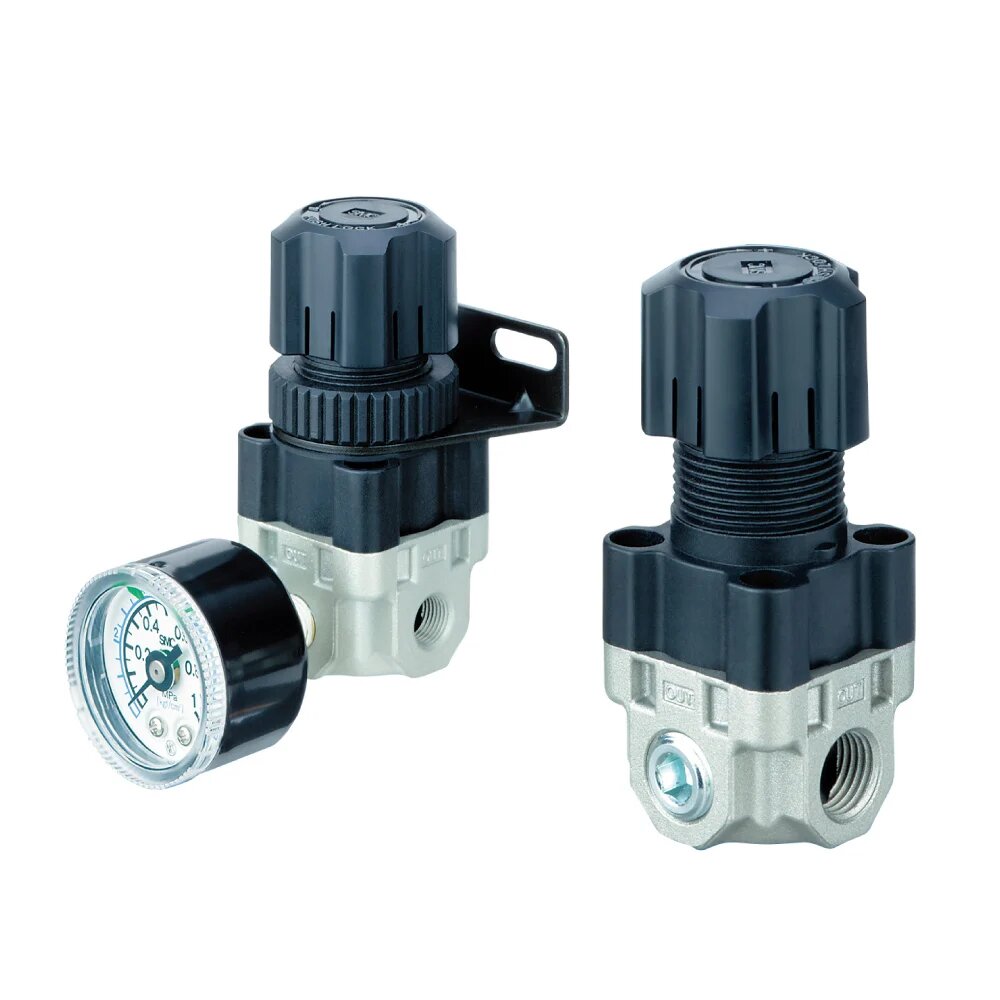

ARX Series Compact Pressure Regulator

Brand: SOLH by Richge Technology (睿其格科技)

Product Positioning

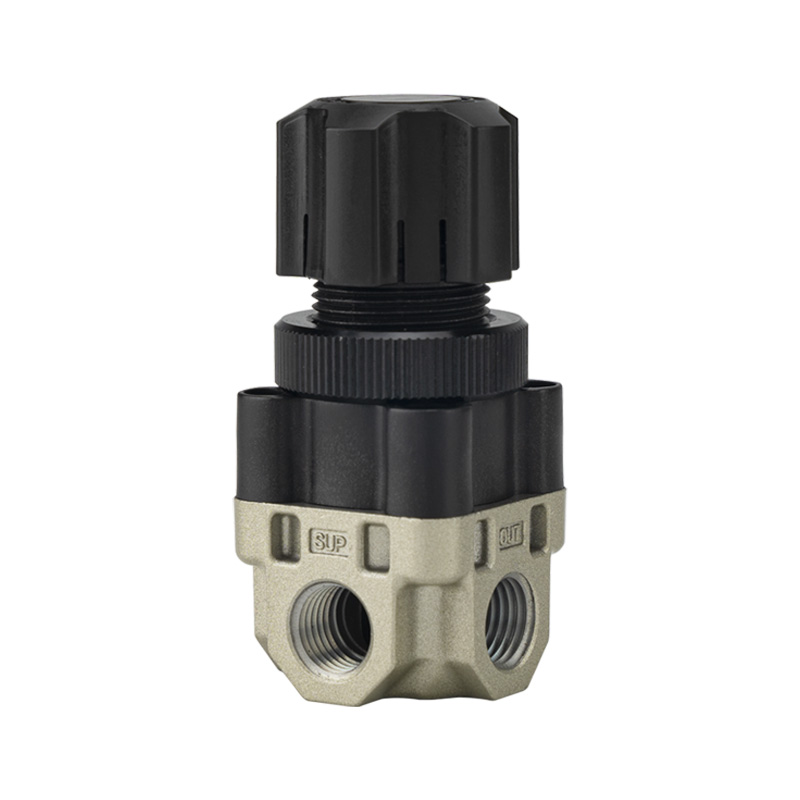

     ARX series, dominated by ARX20 model, is a mini piston relief regulator supporting maximum 2.0MPa inlet pressure. Targeted at compact equipment with high-pressure air supply and small-flow precise adjustment scenarios, it integrates tiny dimension, zero continuous air bleed, large flow capacity and multi-port flexible piping layout.

Structure & Working Principle

     --Direct-acting piston structure with built-in relief function

     --Max inlet working pressure reaches 2.0MPa, exceeding 1.0MPa limit of ordinary AR regulators

     --Zero steady air consumption without permanent air bleed

     --One supply inlet matched with three independent output ports for diversified piping

     --Miniature overall dimension: 35mm width, 80mm length, net weight only 110g

Core Key Features

1. High Inlet Pressure Resistance (Core Advantage)

     Max working pressure: 2.0MPa; proof pressure: 3.0MPa. Two adjustable pressure versions are available: ARX20 for 0.05–0.85MPa wide range, ARX21 for low-pressure 0.05–0.30MPa precise control.

2. Ultra-Compact & Lightweight Body

    Overall size 35mm × 80mm, merely 110g weight, perfectly embedded into narrow installation spaces and integrated automation equipment.

3. Zero Air Loss & Elevated Flow Output

     Zero continuous air consumption for outstanding energy-saving performance. Its flow capacity doubles that of regular regulators in the same size class.

4. Triple Outlet Ports for Flexible Layout

     Three output ports support multi-channel gas distribution, pressure gauge installation or blank plug closure. The Rc1/8 gauge port is reserved, and optional mounting bracket enables multi-directional installation.

5. Stable & Maintenance-Free Operation

     Applicable temperature range: -5℃ ~ +60℃. Automatic relief releases excess pressure for circuit protection. Lubrication-free internal structure cuts daily maintenance workload.

Technical Specifications Table

Model Code Explanation

Example: ARX20-01GB

     --ARX: Product series code

     --20: Standard pressure range; 21: Low pressure range

     --01: Port size 1/4"

     --G = G thread / N = Rc thread / F = NPT thread

     --B: Equipped with mounting bracket; P: Panel mounting type

     --Suffix G: Comes with matched pressure gauge

Typical Application Scenarios

     Small 2.0MPa high-pressure air compressors Precision air blowing and fluid dispensing equipment Built-in compact pneumatic automation machinery High-pressure air testing circuits Laboratory analytical instruments, requiring zero leakage and stable pressure output。

One Sentence Summary

     ARX compact piston regulator supports 2.0MPa high inlet pressure with zero air consumption, triple output ports and enlarged flow rate, serving as the optimal solution for small-size high-pressure low-flow pneumatic pressure control.
