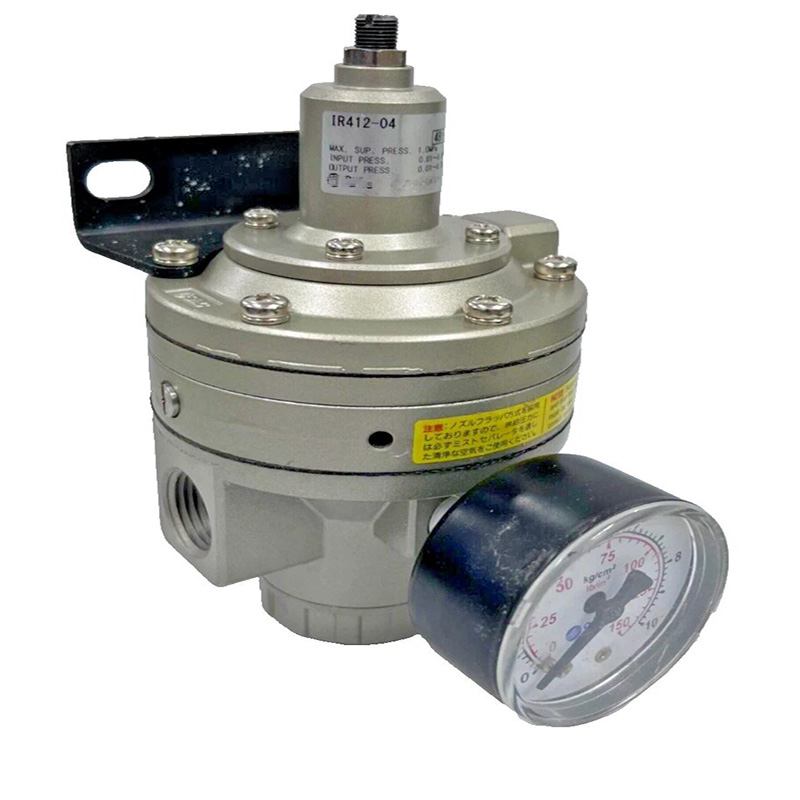

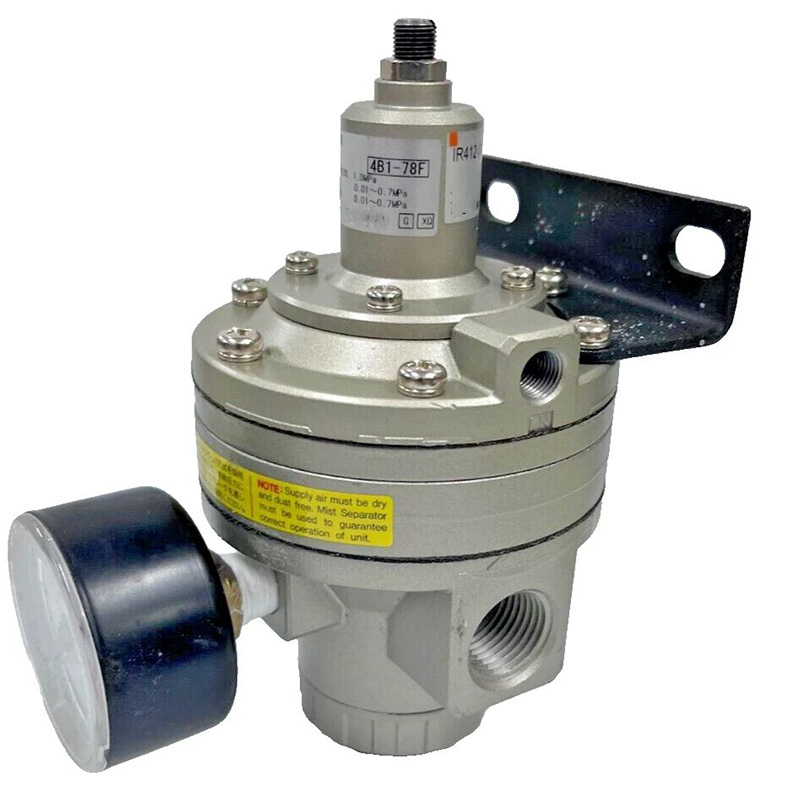

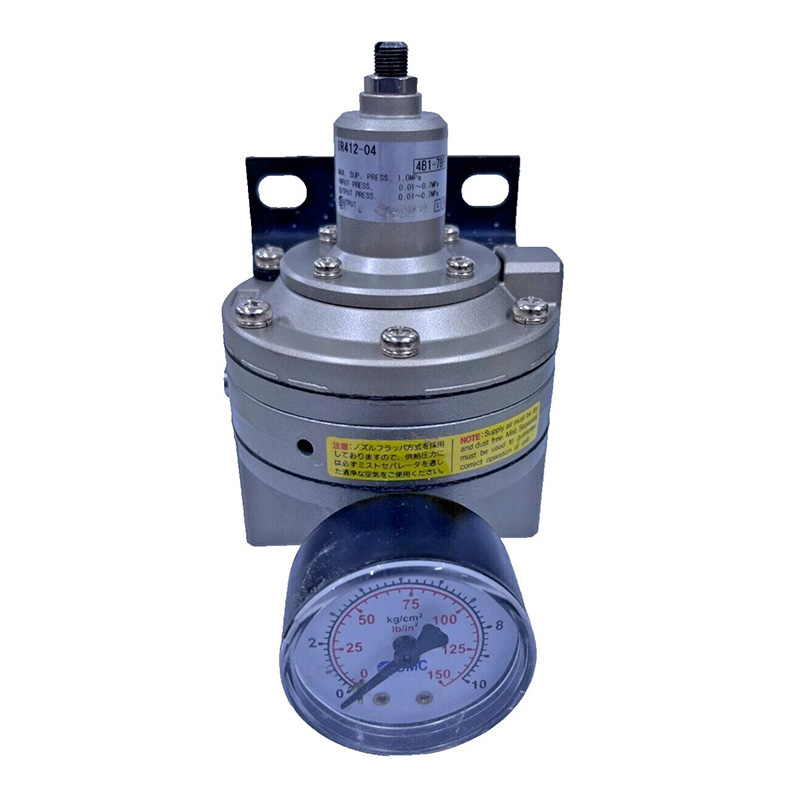

IR412-04-X32 High-Precision Pilot Operated Regulator

Brand: SOLH by Richge Technology (睿其格科技)

Product Overview

     IR412-04-X32 belongs to IR series large-flow pilot-operated precision pressure stabilizer. This regulator is designed for heavy-demand pneumatic working conditions that require ultra-stable output pressure and tiny pressure fluctuation, fully dimension and performance interchangeable with SMC original IR412 series.

1. Core Technical Specifications

      -- Series Name: IR412 High Precision Stabilizing Regulator

      -- Complete Model: IR412-04-X32

          · 04: Main port thread Rc 1/2"

          · X32: Custom special configuration including rear exhaust, enhanced sensitivity and minimal steady air consumption

     --Structure Type: Pilot-operated relief precision regulator

     --Applicable Medium: Dry and clean compressed air

     --Max Inlet Working Pressure: 1.0 MPa

     --Adjustable Pressure Range: 0.01 ~ 0.7 MPa

     --Control Accuracy

        · Sensitivity: 0.2% full scale

        · Repeatability: ±0.5% full scale

     --Flow Performance: Maximum flow capacity, nearly twice the flow of IR201 model

     --Relief Exhaust Capacity: Overpressure exhaust flow 5 times higher than conventional precision regulators

     --Steady Air Consumption: Ultra-low, less than 1 L/min

     --Operating Temperature: -5℃ ~ +60℃

     --Net Weight: Approx. 1.0 kg

     --Mounting Options: Panel mounting or bracket mounting; pressure gauge installable on front or rear side

2. Nozzle-Flapper Pilot Operating Principle

     --Pressure Setting Stage: Rotate adjustment knob to compress internal spring and close the nozzle passage; pilot air pushes the main spool to adjust output pressure.

     --Stable Regulation Stage: Outlet pressure acts on the diaphragm to counterbalance spring tension, maintaining constant preset pressure.

     --Overpressure Relief Stage: When downstream pressure exceeds target value, diaphragm lifts to open the nozzle, pilot pressure drops instantly, and main valve releases redundant air at high speed. Core Advantage: Combined pilot control and relief structure delivers ultra-fast response speed, stable pressure output and outstanding large-flow performance.

3. Full Model Code Explanation (IR412-04-X32)

     --IR412: Large-caliber high-precision regulator base series

     --04: Main port specification Rc 1/2"

     --X32: Custom upgrade version

        · Rear exhaust layout (standard version adopts front exhaust)

        · Improved response sensitivity

        · Low steady air consumption design

4. Core Product Advantages

     --Superior control precision with 0.2% full scale sensitivity, perfectly matching tension control, precise positioning and fluid dispensing equipment.

     --Large 1/2-inch port delivers maximum flow, supporting large-bore cylinders and high-consumption pneumatic production lines.

     --Instant pressure correction via high-volume relief channel to eliminate output pressure fluctuation rapidly.

     --Energy-saving design with steady-state air consumption below 1 L/min to reduce long-term operating costs.

     --Flexible installation layout; pressure gauge and fixing bracket can be assembled on front or rear side as required.

     --X32 customized rear exhaust prevents dust and oil mist contamination to maintain clean working environment.

5. Typical Application Scenarios

     Precision glue dispensing and industrial coating production lines Film, wire and textile tension control machinery for printing, lithium battery and textile industries High-speed cylinder positioning equipment, hydraulic pneumatic presses and transfer automation Laboratory measuring instruments and long-duration pressure holding circuits Semiconductor, electronic assembly and cleanroom precision pneumatic platforms

Model Performance Comparison: IR412 VS IR201 VS ARJ310

One Sentence Summary

     IR412-04-X32 is an SMC-compatible large-caliber pilot precision regulator featuring X32 customized rear exhaust and ultra-low air consumption, serving as the top pressure control solution for high-flow precision dispensing, tension adjustment and positioning automation systems.
