KQ2U / KQ2UD Series Y-Type Multi-Port Push-in Fittings

SOLH KQ2U / KQ2UD Series Y-Type Multi-Port Push-in Fittings | Pneumatic Manifold Connector

Brand: SOLH by Richge Technology | SMC KQ2U / KQ2UD Equivalent Y Multi-outlet One-Touch Fitting

1. Product Overview

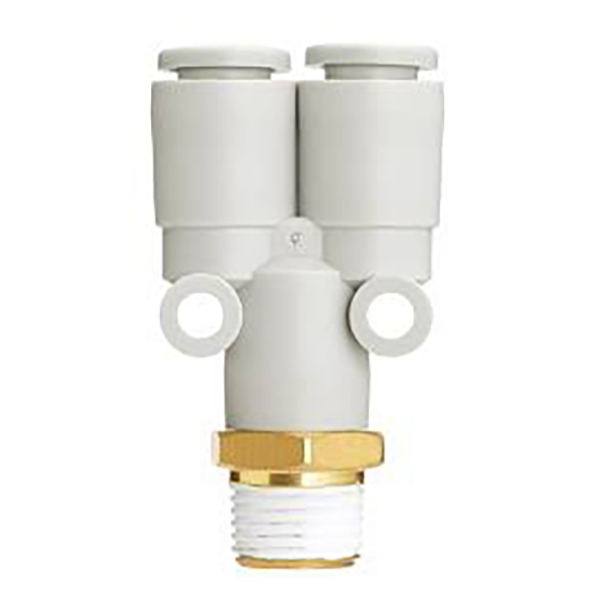

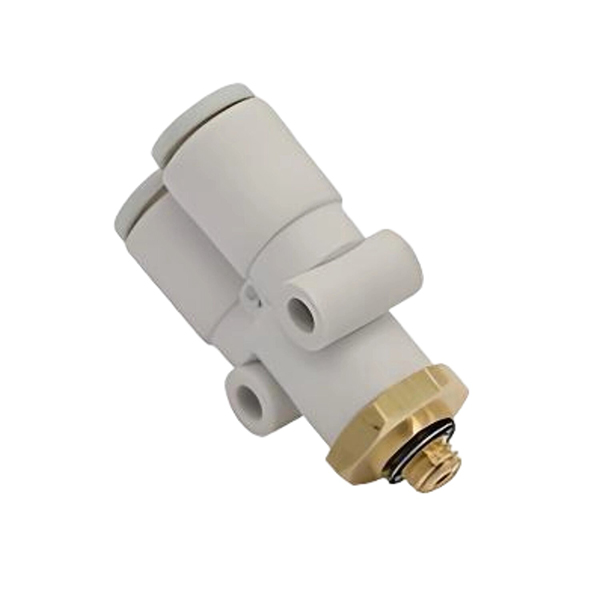

     KQ2U is Y-type 1-in 2-out push-in splitter; KQ2UD is Y-type 1-in 4-out push-in manifold. Both belong to SOLH KQ2 pneumatic one-touch fitting series. Constructed with PBT body and nickel-plated brass male thread. Direct plug-and-play for PU air tubing, PTFE tape not required. Designed for 1-to-2 / 1-to-4 air circuit splitting, fully interchangeable with SMC KQ2U / KQ2UD. Widely adopted in automation equipment, vacuum suction cups and pneumatic actuator air distribution.

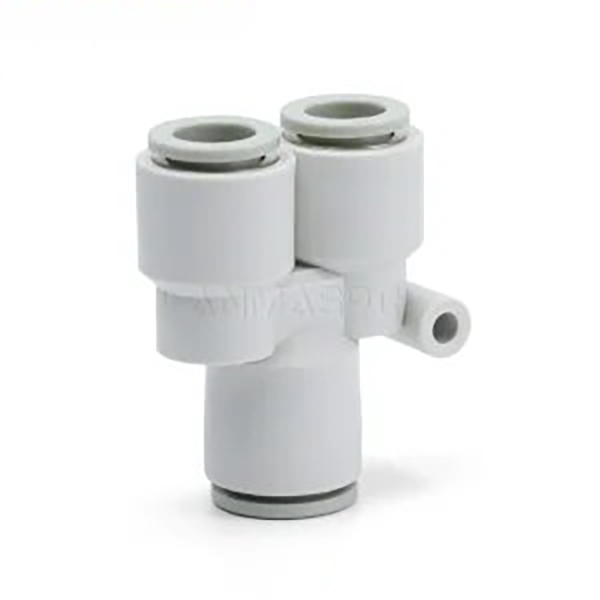

     KQ2U: 1 inlet, 2 outlets (Y-shape 1 to 2 split)

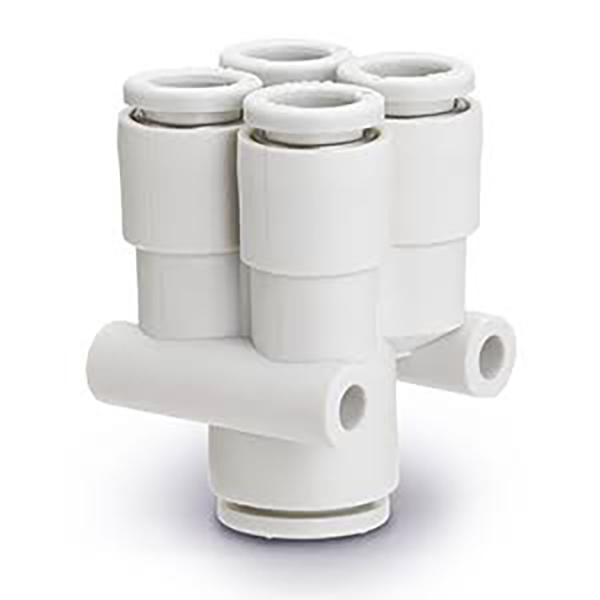

     KQ2UD: 1 inlet, 4 outlets (Y-shape 1 to 4 split)

2. Model Naming Rules

2.1 KQ2U (1-in 2-out Y splitter)

  1.Male thread version KQ2Uxx-xxS Example: KQ2U06-02S
     KQ2U: Y-type 1-in 2-out fitting
     06: Tube OD of outlet ports Φ6mm
     02S: Male taper thread R1/4 (S = R taper male thread)
     Thread code: 01S=R18, 02S=R1/4, 03S=R3/8, 04S=R1/2

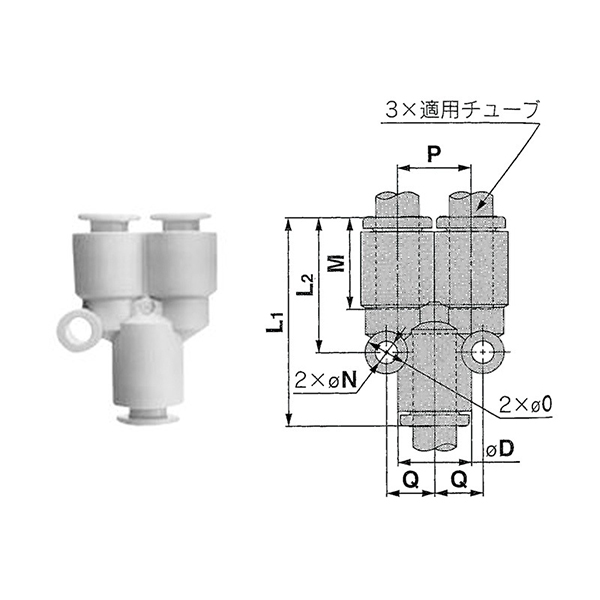

  2.Straight equal-diameter tube version KQ2Uxx-00 Example: KQ2U08-00
     Inlet and two outlets share identical tube OD, all Φ8mm

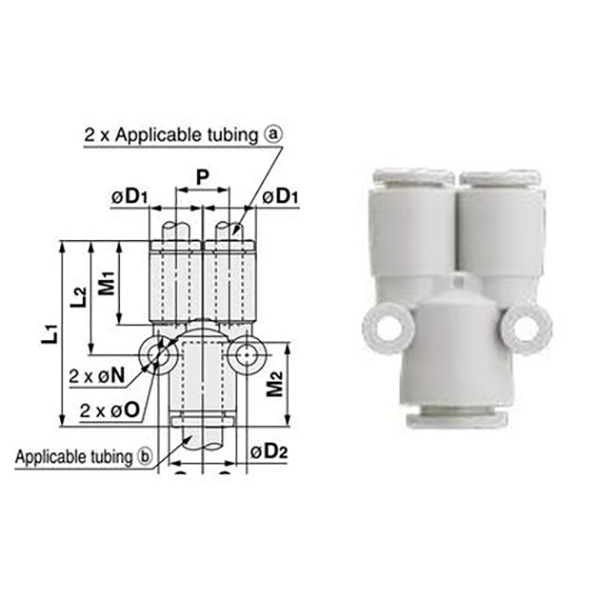

  3.Straight reducing version KQ2Uxx-yy Example: KQ2U04-06
     Two outlets Φ4; main inlet Φ6, different diameter reducing split

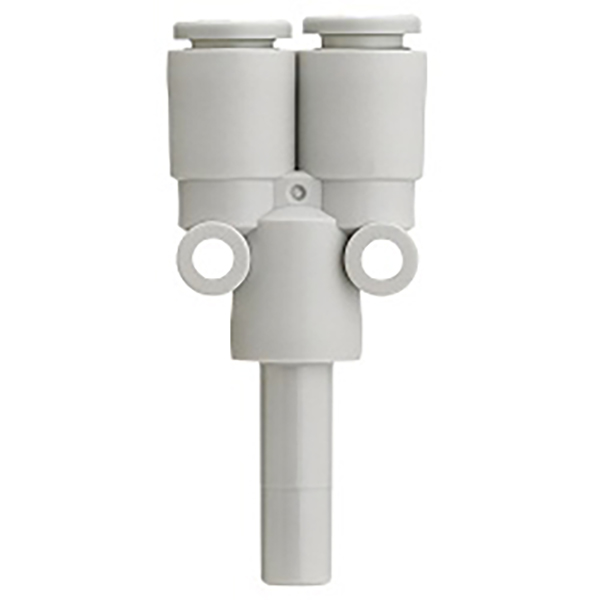

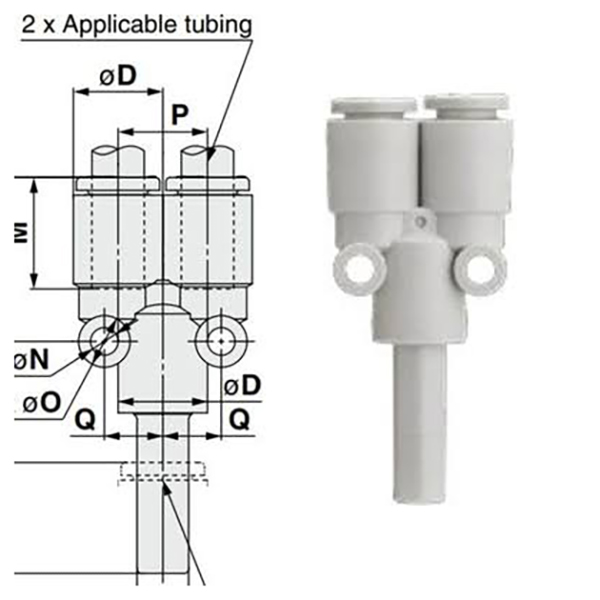

 4. Barbed plug version KQ2Uxx-99
     Plastic rigid plug shank at bottom, inserts into female push-in port for 1-in 2-out split

2.2 KQ2UD (1-in 4-out Y manifold)

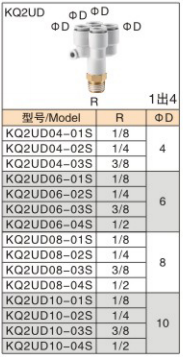

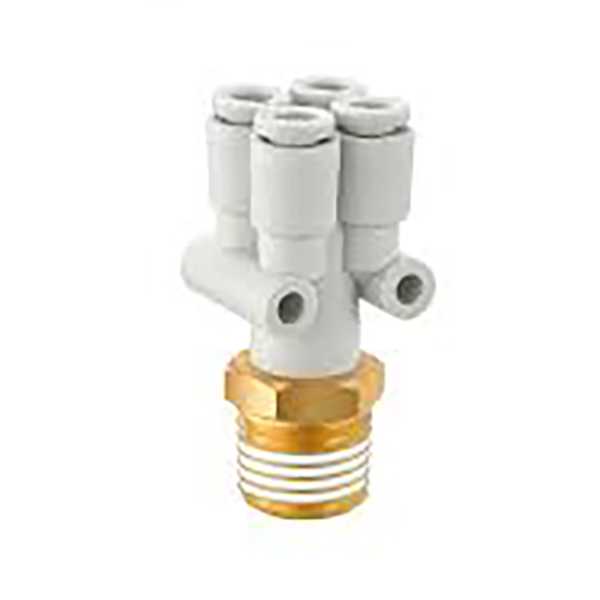

  1. Male thread version KQ2UDxx-xxS Example: KQ2UD08-03S
     R38 male thread inlet, four outlets for Φ8 tubing

  2. Reducing tube version KQ2UDxx-yy Example: KQ2UD04-06
     Four outlets Φ4, main inlet Φ6, multi-port reducing distribution

3. Specification Summary Table

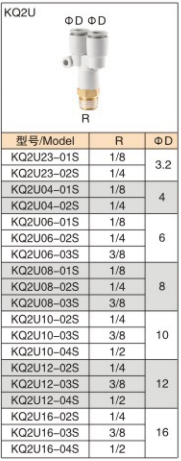

3.1 KQ2U (1-in 2-out Y splitter)

3.2 KQ2UD (1-in 4-out Y manifold)

4. General Technical Specifications

5. Product Features

     • Fast Push-in Assembly: Tubing inserted for instant sealing. Press white release collar to remove tube, greatly improve assembly efficiency.

     • Multi-path Air Distribution: KQ2U for 1-to-2 split, KQ2UD for 1-to-4 split. Centralized air source distribution to simplify air routing.

     • Reducing Option Available: Equal and reducing diameter versions for connection of different tube sizes.

     • Reliable Thread Sealing: Nickel-plated brass male thread with high corrosion resistance and mechanical strength.

     • Compact Size: Small footprint for confined mounting space, widely used in manipulators, jigs and suction cup modules.

6. Typical Applications

     • Vacuum cup array splitting (multiple suction cups share single vacuum source)

     • Multi-cylinder air supply for automation fixtures

     • Pneumatic circuits for packaging machinery, 3C equipment & injection molding machines

     • Air line splitting for pneumatic inspection and test jigs

7. Installation Notes

     • Cut tubing perpendicularly with no burrs; burrs may scratch sealing ring and cause air leakage.

     • Push tubing fully to bottom and confirm release collar locks tubing securely.

     • Not for water, oil or strong corrosive fluids. Only for compressed air and vacuum service.

     • Avoid repeated bending at joint root to prevent plastic cracking.
