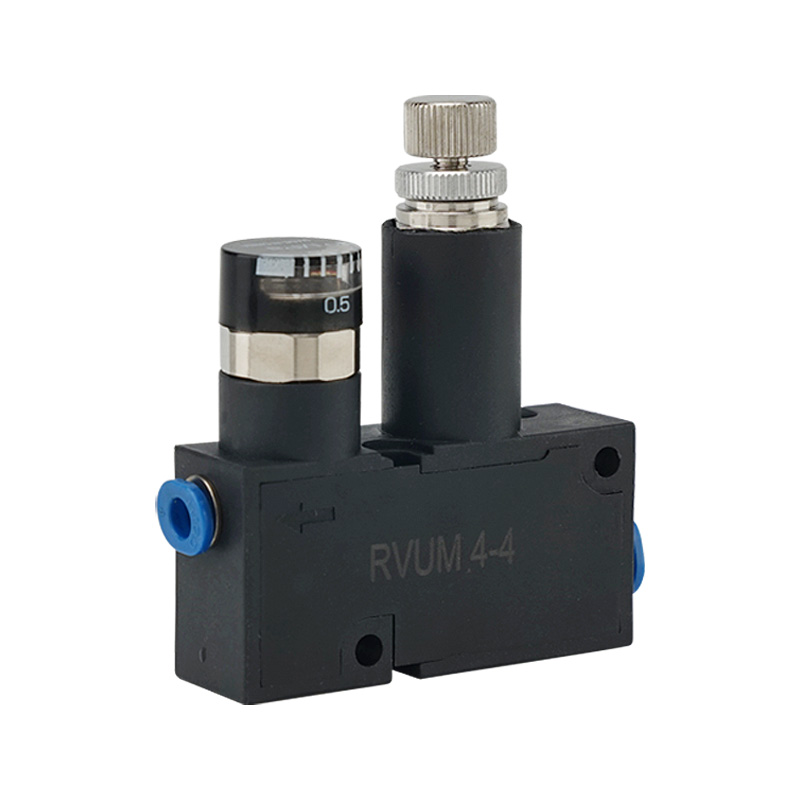

Brand: SOLH by Richge Technology | Ultra-Compact Precision Pneumatic Pressure Regulator
The SOLH RVUM series is a ultra-compact direct-acting piston type micro pressure regulator valve, specially developed for space-limited miniature pneumatic circuits. It supports both relief-type (standard) and non-relief-type structures, featuring flexible straight/elbow connection options, integrated one-touch fittings, and 0.1–0.8MPa precision pressure regulation. With ultra-small lightweight design, diversified mounting methods and stable pressure output, it is widely applied in precision small-flow scenarios such as dispensing, vacuum adsorption and micro air blowing, serving as the optimal pressure stabilizing solution for miniaturized automated equipment.
• Structural Design: Adopts high-precision direct-acting piston structure, available in two versions: standard relief type and optional non-relief type, meeting diverse circuit pressure regulation demands.
• Precision Pressure Stabilization: Maximum inlet pressure reaches 0.9MPa, with stable adjustable output pressure ranging from 0.1MPa to 0.8MPa. The relief-type design automatically exhausts overpressure air to maintain constant downstream pressure.
• Applicable Medium: Pure compressed air, supporting oil-free lubrication operation, fully adapting to clean and precision pneumatic working environments.
3.1 Ultra-Compact & Lightweight Body
The whole valve body adopts miniaturized integrated design with extremely small occupation space. It is perfectly suitable for equipment built-in installation, panel mounting and narrow jig space layout, realizing zero-space occupation optimization for miniature pneumatic systems.
3.2 Flexible One-Touch Fitting Piping
Both IN and OUT ports support free switching of straight and elbow types. Compatible with metric φ4/φ6 and imperial 5/32"/1/4" pneumatic tubes. Tool-free plug-in installation greatly improves on-site piping and modification efficiency with strong compatibility.
3.3 High-Precision Stable Pressure Regulation
Professional 0–0.8MPa pressure gauge is equipped with a regulation accuracy of ±5% FS. It delivers ultra-stable pressure output for small-flow precision scenarios such as automatic dispensing, workpiece vacuum adsorption, micro air blowing and positioning control, effectively avoiding pressure fluctuation affecting product precision.
3.4 Diversified Mounting Methods
Supports independent direct installation and bracket integrated cluster installation. It can flexibly adapt to various equipment layout requirements, realizing single-point independent pressure regulation and multi-loop integrated centralized pressure control.
3.5 Durable & Reliable Performance
The valve body is made of high-strength aluminum alloy and resin material, with excellent corrosion resistance and structural stability. The working temperature ranges from 0℃ to 60℃ (non-freezing environment), ensuring long-cycle stable operation in industrial production scenarios.
|
Parameter Item |
Specification |
|
Series Model |
RVUM Series |
|
Structure Type |
Direct-acting piston type, relief / non-relief optional |
|
Applicable Fluid |
Clean compressed air (oil-free lubrication available) |
|
Max. Inlet Pressure |
0.9 MPa |
|
Set Pressure Range |
0.1–0.8 MPa |
|
Pressure Gauge Range |
0–0.8 MPa |
|
Pressure Gauge Accuracy |
±5% FS |
|
Working Temperature Range |
0℃～60℃ (non-freezing environment) |
|
Main Material |
Valve body: Aluminum alloy; Adjustment handle: Resin |
|
Connection Specification |
One-touch fitting for φ4/φ6 metric tube, 5/32"/1/4" imperial tube |
5.1 Complete Model Definition
Standard Model Format: RVUM - [Tube Spec] - [Tube Spec] - [Suffix]
• RVUM: Series code for ultra-compact piston type mini pressure regulator
• Tube Spec Code: 04=φ4mm, 06=φ6mm, 08=φ8mm
• Suffix A: Equipped with precision pressure gauge
5.2 Common Model Application Cases
• RVUM6-6: Basic model with φ6 straight inlet + φ6 straight outlet, for conventional miniature pneumatic circuits
• RVUM6-6-A: φ6 straight inlet & outlet with built-in pressure gauge, realizing visual pressure regulation
• RVUM4-6: φ4 straight inlet + φ6 elbow outlet, small-caliber asymmetric model for narrow space and micro-flow pipelines
• Micro Automation Equipment & Jigs: Widely used in 3C electronic equipment, medical devices, small robotic arms and precision tooling fixtures.
• Precision Small-Flow Control: Professional for automatic dispensing, vacuum workpiece adsorption, micro air blowing cleaning and precise positioning pressure control.
• Compact Integrated System: Ideal for equipment built-in installation, panel embedded mounting and multi-loop cluster integrated pneumatic systems.
• Solenoid Valve Rear Circuit: Directly installed downstream of solenoid valves for secondary pressure reduction and stable pressure output, eliminating air pressure fluctuation.
|
Series |
Core Advantages |
Applicable Scenarios |
|
RVUM |
Ultra-small size, flexible straight/elbow fitting, 0.1–0.8MPa precise regulation |
Ultra-compact equipment, micro-flow precision pressure stabilization |
|
ARM5S |
14mm ultra-narrow body, standard reverse flow, cluster mountable |
Multi-joint micro circuits, solenoid valve rear series connection |
|
ARX20 |
2.0MPa high inlet pressure, 3 outlets, zero leakage design |
Small high-pressure compressors, high-pressure testing equipment |
|
AR Direct-Acting |
General large flow rate, mature universal structure |
Standard pneumatic circuits, medium and high flow working conditions |
The SOLH RVUM series mini pressure regulator integrates ultra-compact size, flexible one-touch piping and 0.1–0.8MPa precision pressure regulation, being the most matched high-stability pressure stabilizing solution for space-limited micro pneumatic circuits and precision small-flow automated equipment.
