VZM500 (VZM5) Series 5/2-Way Mechanical Valve | Medium Flow Elastic Seal Pneumatic Control Valve

Brand: SOLH by Richge Technology | SMC Compatible 5-Port Mechanical Actuated Pneumatic Valve

1. Product Overview

     The SOLH VZM5 (VZM500) series is a medium-sized 5/2-way mechanical control valve fully compatible with SMC standard. Adopting high-reliability elastic rubber seal structure, it features stable sealing, fast response and excellent medium flow performance with Cv value up to 0.6. Equipped with standard Rc1/8 port and complete optional actuator heads, it supports mechanical limit triggering, manual jog control and safety circuit interlock. With flexible foot mounting and manifold integrated installation, high-frequency durability and wide pressure adaptability, it serves as the standard mainstream model for dual-cylinder synchronization, pneumatic circuit switching and mechanical limit control in automated production lines.

2. Core Technical Specifications

3. Port Definition & Circuit Mode

  3.1 Standard 5/2-Way Mode (Dual Control / Mechanical Control)

     1(P) = Air supply port, 2(A) = Positive output port, 3(B) = Reverse output port, 4(EXH) = Exhaust port, 5(EXH) = Exhaust port. Realizes bidirectional switching and rapid exhaust of pneumatic actuators.

  3.2 Optional 5/3-Way Mode (Middle Position)

     Optional middle closed type and middle pressure relief type, precisely adapting to pneumatic positioning, pressure maintaining and precise stroke control requirements.

  3.3 Pilot Port Specification

     EXH pilot port adopts M5×0.8 thread. The external pilot version supports independent air source control, suitable for centralized pneumatic control and large-flow loop matching scenarios.

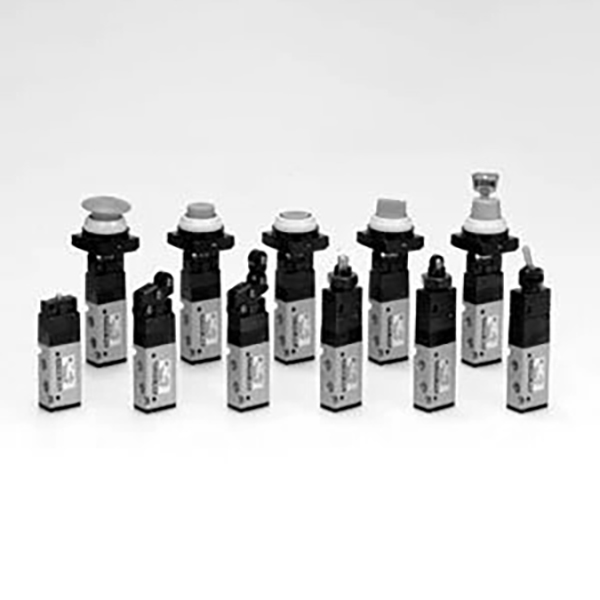

4. Full Series Actuator Head Options

5. Model Coding Rules & Common Models

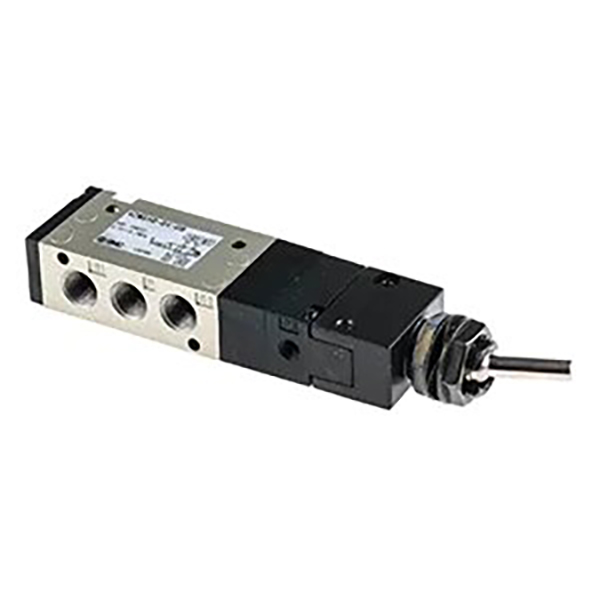

  5.1 Model Interpretation (Example: VZM550-01-08)

     • VZM550: Standard 5/2-way elastic seal basic mechanical valve

     • Port Code: 01=Rc1/8; N01=NPT1/8; F01=G1/8

     • Actuator Code: 08=toggle lever; 01=roller lever; 30=push button; 37=push-pull

     • Optional Suffix: -L=with foot bracket; -3=5/3-way type; P=external pilot type

  5.2 Hot-Selling Standard Models

     • VZM550-01-01: 5/2-way, basic roller lever, Rc1/8 port, preferred for general mechanical limit scenarios

     • VZM550-01-30: 5/2-way, push button type, Rc1/8 port, suitable for manual equipment jog and debugging

     • VZM550-01-37: 5/2-way, push-pull type, Rc1/8 port, for manual locking and anti-misoperation control

     • VZM550-01-02: 5/2-way, unidirectional roller lever, Rc1/8 port, professional anti-rebound limit control

6. Core Product Advantages

  6.1 Standard Medium Large Flow

     Equipped with universal Rc1/8 port and Cv=0.6 flow coefficient, matching medium-flow pneumatic circuits perfectly, realizing stable synchronous action of dual cylinders and reliable linkage of multiple actuators.

  6.2 High-Stability Elastic Sealing

     Adopts integrated rubber valve core elastic sealing structure, featuring zero leakage, stable pressure holding and fast response speed. It delivers long service life and ultra-low maintenance cost under conventional industrial working conditions.

  6.3 Full-Coverage Trigger Modes

     Complete actuator options including roller, plunger, toggle lever, button and push-pull types fully cover mechanical limit, automatic triggering, manual debugging and safety interlock application scenarios.

  6.4 Diversified Flexible Installation

     Supports independent foot bracket installation and manifold integrated cluster installation. Arbitrary EXH ports can be piped for exhaust, adapting to dense panel layout and limited installation space.

  6.5 High-Frequency Industrial Durability

     Supports up to 300c.p.m high-frequency cyclic operation, with excellent impact and vibration resistance. It stably adapts to long-term continuous operation of heavy industrial equipment.

  6.6 External Pilot Expandable Design

     Optional external pilot control mode realizes remote and centralized air source control, meeting the matching demands of large-flow main circuits and automated integrated pneumatic systems.

7. Typical Application Scenarios

     • Dual-Cylinder Synchronous Control: Ensure synchronous cooperative action of double cylinders in automated equipment to improve running consistency.

     • Pneumatic Circuit Switching: Clamp/unclamp switching of jigs and fixtures, station switching and pneumatic loop directional control.

     • Mechanical Limit Triggering: Stroke in-place signal triggering and mechanical interlock protection via roller lever actuators.

     • Manual Operation Control: Equipment debugging, manual jog start/stop and panel manual control via button and push-pull types.

     • Safety Protection Circuit: Emergency stop reset and safety door interlock protection with lockable and mushroom head actuators.

     • Industry General Automation: High-frequency position control and multi-actuator linkage for packaging, printing and electronic manufacturing equipment.

8. VM Series Model Selection Comparison

One Sentence Summary

     The SOLH VZM500 (VZM5) series 5/2-way mechanical valve integrates Rc1/8 standard port, Cv0.6 medium large flow, full-series multi-function actuators and flexible installation modes, being the standard mainstream core component for automated dual-cylinder synchronous control and pneumatic circuit switching systems.
