Brand: SOLH by Richge Technology | Corrosion-Resistant Low-Residue Fluid Switching Valve

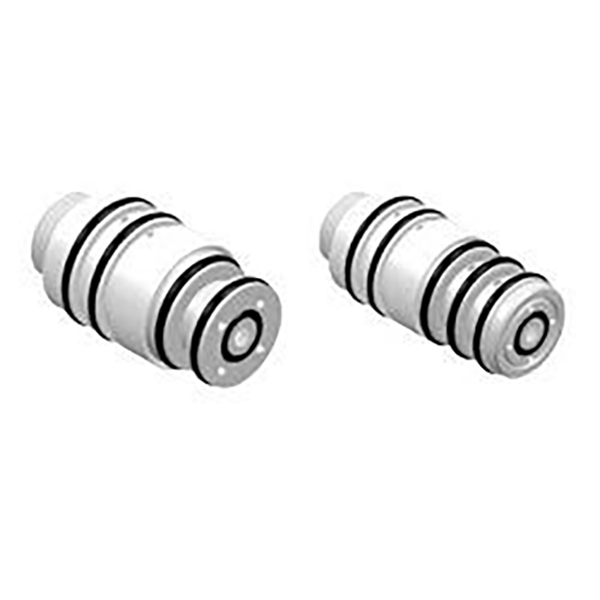

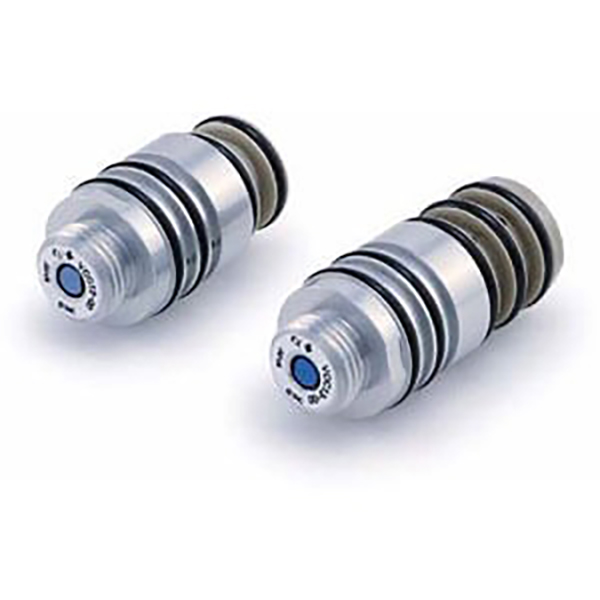

The SOLH VCC series is a professional pilot-operated fluid switching valve specially designed for water-based and solvent-based fluids. It offers two structural types: 2-way (VCC12 / VCC12D) and 3-way (VCC13), dedicated to switching and control of paint, ink, and cleaning fluid in spraying lines and fluid supply systems. Adopting a full PTFE diaphragm structure with zero sliding friction design, it effectively reduces fluid residue and paint curing blockage. With excellent corrosion resistance, ultra-low residual performance and intrinsically safe pneumatic drive, it is an ideal clean control component for automated spraying, multi-color switching, laboratory fluid distribution and various chemical fluid working conditions.
|
Model |
Port Type |
Core Function |
Applicable Scenarios |
|
VCC12 |
2-Way |
Single-channel fluid on/off control |
Supply or cut-off of single water-based / solvent paint, cleaning agent and air medium |
|
VCC12D |
2-Way |
Dual-channel fluid switching control |
Independent control and switching of two-component fluids (A/B component paint) |
|
VCC13 |
3-Way |
Fluid circulation & directional switching |
Paint circulation, fluid back suction, switching between working fluid and cleaning fluid |
3.1 Superior Multi-Medium Corrosion Resistance
All fluid contact parts adopt high-performance PTFE (Teflon), PEEK and stainless steel sealing materials. The overall structure resists water-based paint, organic solvents (such as butyl acetate), cleaning agents and various chemical media without swelling, aging or medium contamination. It fully meets strict cleanliness standards for automotive coating, electronics, food and medical industries.
3.2 PTFE Diaphragm Zero Sliding Friction, Ultra-Low Residue & Easy Cleaning
Innovative diaphragm structure eliminates traditional sliding valve core components. The fluid only contacts the smooth PTFE diaphragm surface, completely avoiding valve core jamming and paint curing residue. It realizes thorough cleaning during fluid/color replacement, greatly reducing material waste and equipment downtime, and improving continuous production efficiency.
3.3 Pure Pneumatic Drive, Safe & Stable Operation
Adopts pilot pneumatic control mode with a stable control pressure range of 0.4–0.7MPa. No electrical components are involved in the working process, zero electric spark risk, intrinsically safe for flammable and explosive environments such as coating workshops and chemical production lines. It features fast and smooth response and long-term stable cycle operation performance.
3.4 Compact & Lightweight, Flexible Integrated Installation
Miniaturized lightweight body design adapts to robot arm mounting and narrow equipment space layout. It supports a 30mm pitch manifold installation structure, with up to 2 valves mounted on a single base. Mixed installation of 2-way and 3-way valves is available, effectively saving installation space and simplifying on-site pipeline layout.
3.6 Ultra-Long Service Life & High Durability
Optimized diaphragm and sealing structure improves wear resistance and anti-aging performance. The service life reaches over 5 million cycles in paint working conditions and 10 million cycles in water/air working conditions, fully adapting to long-term continuous industrial production and reducing equipment maintenance frequency and cost.
3.7 Versatile Connection & Strong Compatibility
Equipped with standard SUS316L stainless steel VCK series connectors, compatible with φ6–φ12mm tubing. Optional straight, 45° and 90° rotary connectors support flexible piping direction adjustment, perfectly adapting to complex on-site pipeline layout requirements.
|
Parameter Item |
Specification |
|
Port Type |
2-Way (VCC12/VCC12D) / 3-Way (VCC13) |
|
Operation Mode |
Pilot Operated (Pure Pneumatic Control) |
|
Applicable Fluid |
Water-based paint, solvent paint, ink, cleaning agent (water, butyl acetate), compressed air |
|
Working Pressure |
0～1.0MPa (Instant pulse pressure ≤1.2MPa) |
|
Pilot Control Pressure |
0.4～0.7MPa |
|
Proof Pressure |
1.5～2.0MPa |
|
Orifice Diameter |
φ3.8mm |
|
Ambient Temperature |
5℃～50℃ |
|
Port Specification |
Fluid port: G1/4; Pilot port: RC1/8 |
|
Compatible Tubing |
φ6/8/10/12mm tubing |
|
Main Material |
Valve body & diaphragm: PTFE; Seal: PEEK + Stainless steel; Connector: SUS316L |
|
Installation Method |
Single mounting / Manifold mounting (30mm pitch, 2 valves per base) |
|
Service Life |
≥5 million cycles (paint); ≥10 million cycles (water/air) |
• Automation Spraying Industry: Automotive, home appliance and hardware spraying lines, supporting multi-color fast color switching and two-component paint proportional control.
• Laboratory & Pharmaceutical Industry: Precision fluid distribution, medium mixing and gradient switching for high-performance liquid chromatography and experimental testing equipment.
• Clean Industry Production: Zero-residue fluid control for electronics, food and medical equipment, avoiding medium contamination and ensuring production cleanliness.
• Chemical & Cleaning Equipment: Cyclic switching and on-off control of organic solvents, cleaning agents and industrial working media.
The SOLH VCC series water/solvent fluid control valve features full corrosion resistance, zero-sliding low-residue diaphragm structure, intrinsically safe pneumatic drive and ultra-long service life, serving as a high-efficiency and reliable fluid switching solution for automated spraying, laboratory precision distribution and clean chemical fluid control scenarios.
