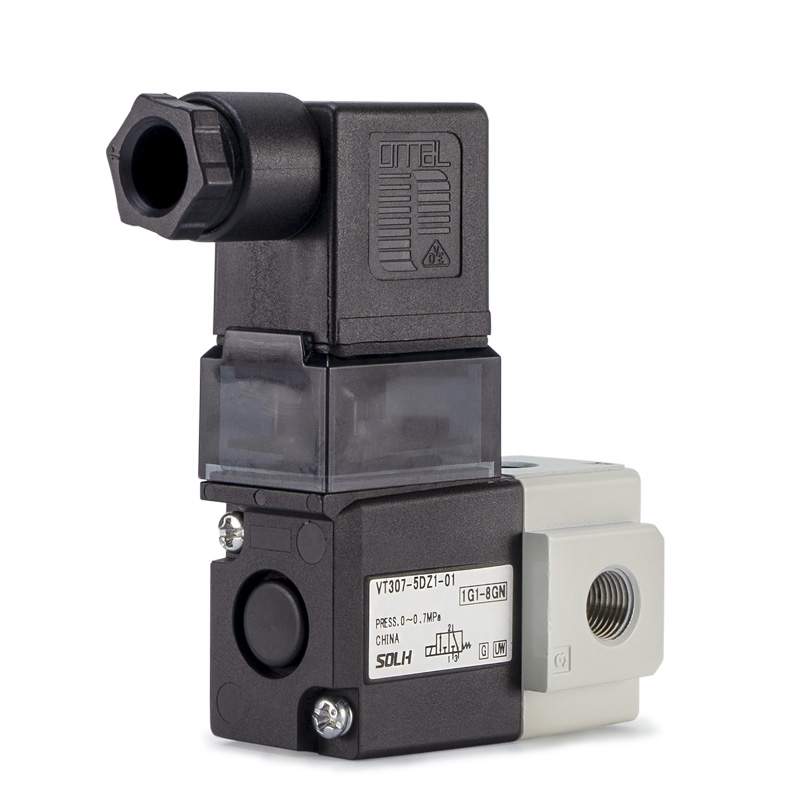

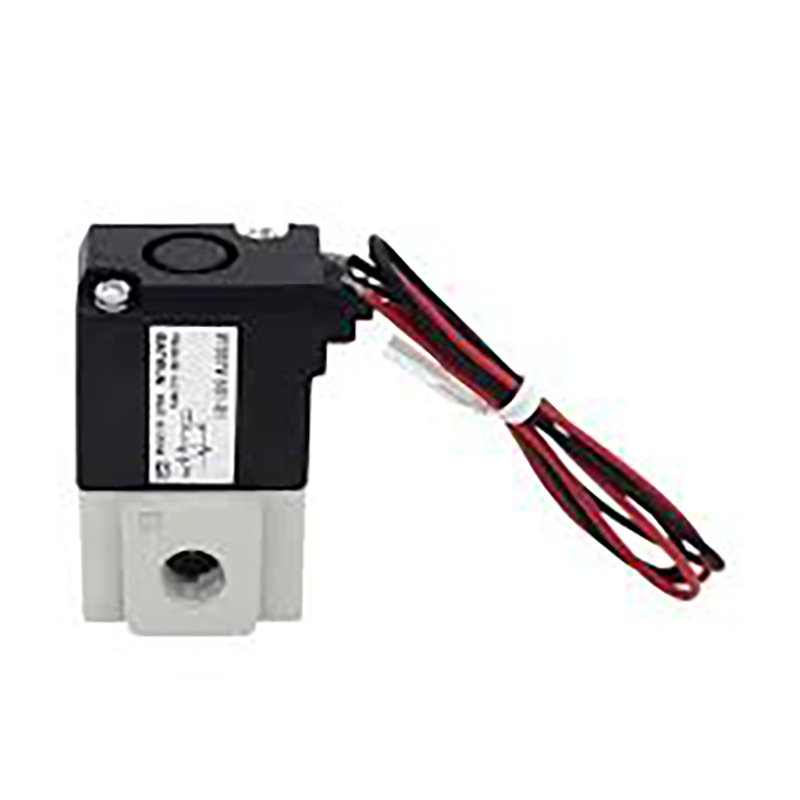

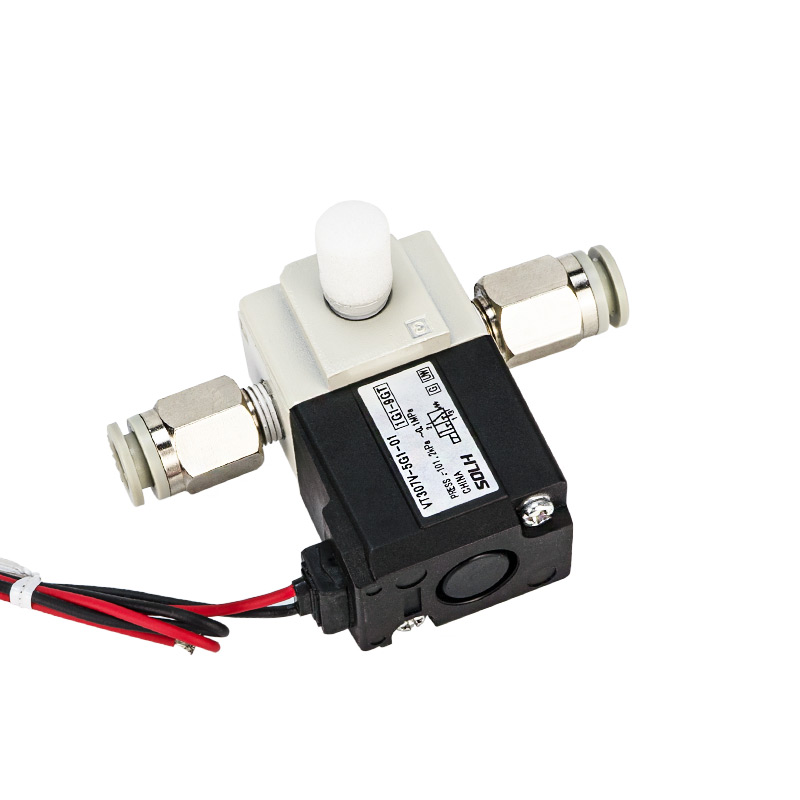

VT307 Series 3 Port Solenoid Valve – Direct Operated Poppet Type

Brand: SOLH by Richge Technology

Product Positioning

     VT307 series is a direct-acting poppet 3-port solenoid valve fitted with elastic rubber sealing structure, applicable to compressed air and inert gas media. Supporting zero-pressure startup, it works reliably under both positive pressure and full vacuum conditions. This mini compact valve is tailor-made for high-frequency rapid switching scenarios in compact automation equipment.

Core Key Features

     --Zero pressure startup design; operating positive pressure range 0–0.7 MPa, vacuum range down to -101.2 kPa

     --Multi-functional interchangeable structure: Normally Closed (NC), Normally Open (NO), flow selector, flow divider modes optional

     --Ultra-fast response time ≤ 20 ms, maximum switching frequency up to 10 Hz for high-cycle production lines

     --Elastic soft sealing construction, fully lubrication-free operation to cut maintenance workload

     --Equipped with manual override button for on-site debugging; mini compact body supports manifold stacked installation4. Technical Specifications· Valve Structure: 3-port, direct acting poppet type with elastic rubber seal

     --Operating Pressure Range: Positive pressure 0–0.7 MPa; Vacuum -101.2 kPa ~ 0.1 MPa

     --Dynamic Performance: Response time ≤ 20 ms, max operating frequency 10 Hz, lubrication-free design

     --Port Thread: Rc1/8, Rc1/4

     --Standard Coil Voltage: DC24V, AC110V, AC220V customizable

Typical Application Scenarios

     Automated assembly production lines, industrial robots, pneumatic clamping jigs, air blowing stations, vacuum adsorption fixtures, packaging machinery, printing equipment, textile processing machines, food processing equipment and integrated valve manifold control systems.

One Sentence Summary

     SOLH VT307 direct acting poppet solenoid valve features zero-pressure startup, full vacuum compatibility, multi-switching functions, rapid response and maintenance-free performance; Richge Technology acts as your dependable pneumatic component supplier for all automation industries.
