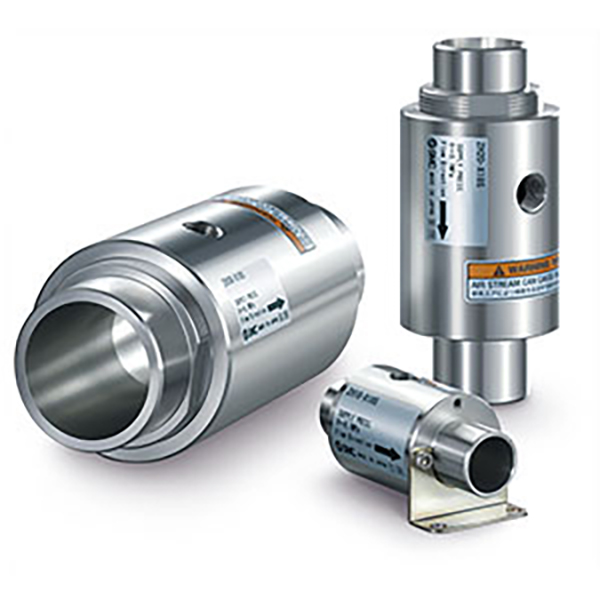

ZH-X185 Series Vacuum Ejector

ZH-X185 Series Vacuum Ejector | High Flow Nozzle 2-in-1 Function

Brand: SOLH by Richge Technology | SMC Compatible 2-Way Use Pneumatic Ejector

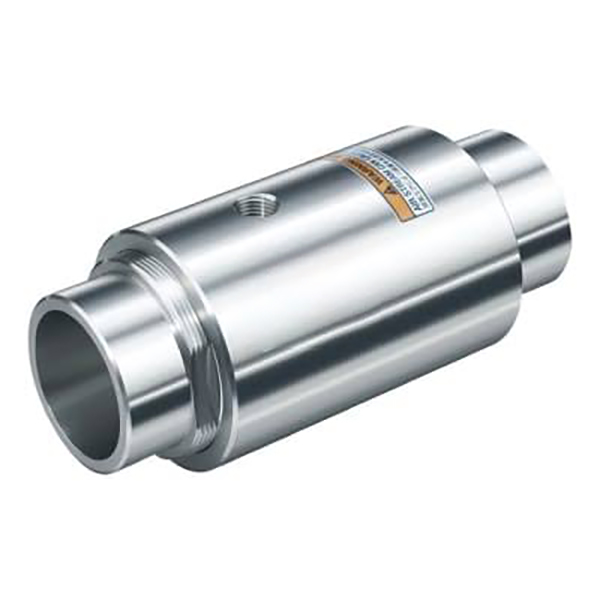

1. Product Overview

     ZH-X185 integrates high-flow vacuum generator and high-flow air blowing nozzle in one unit. Powered solely by compressed air, no electricity required and zero moving components. It can be applied for dust collection, material suction & conveying, air purging, cooling and chip removal.

2. Core Function: 2-in-1 Operation

     • Vacuum Mode – High suction flow

￮ Extract dust, welding fume, chips, powder, small parts and bulk material conveying

     • Blow Mode – High air discharge flow

￮ Drying water, blowing cutting chips, mold cooling, dust cleaning and purging

3. Main Technical Specifications (SOLH / SMC Interchangeable)

     • Working Medium: Compressed air

     • Supply Pressure: 0～0.7 MPa, recommended operating pressure 0.4–0.5 MPa

     • Ambient Temperature: -5～60℃

     • Flow Amplification Ratio

￮ Vacuum suction flow ≈ 3 times of supply air volume

￮ Blow discharge flow ≈ 4 times of supply air volume

     • Structure: Large bore internal channel, allows passage of chips and dust, anti-clogging

     • Material: Aluminum alloy body, lightweight and durable

     • Mounting: Equipped with mounting bracket for easy installation

4. Standard Models & Bore Sizes (With Bracket Version B)

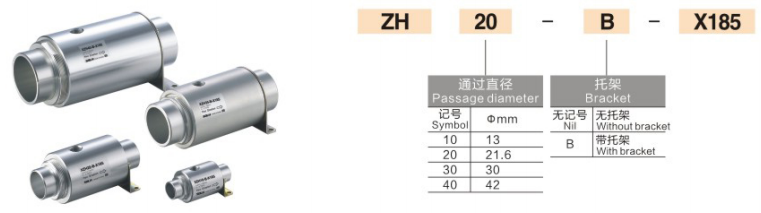

5. Model Code Explanation (ZH20-B-X185)

     • ZH: Vacuum ejector series

     • 20: Bore size code (10 / 20 /30 /40)

     • B: With mounting bracket

     • X185: High flow nozzle, 2-in-1 function

6. Key Product Features

     • 2-in-1 Dual Function: Switch between vacuum suction and air blowing simply by changing pipeline connection direction

     • High Flow Performance: Powerful suction and blowing capacity for high working efficiency

     • Large Internal Bore: Can suck cutting chips, dust and fine particles, low clogging risk

     • Maintenance-Free: No motor, bearings or electrical contacts

     • Explosion-Proof Safety: Fully pneumatic construction, suitable for hazardous working environments

     • Pre-installed Bracket: Simple and flexible mounting

7. Typical Application Scenarios

     • Vacuum suction applications: Welding fume extraction, dust removal, powder conveying, bulk material transfer, light workpiece picking

     • Air blowing applications: Workpiece drying, chip blowing, mold cooling, dust purging and water removal

8. ZH-X185 VS Standard ZH Vacuum Ejector
