Air Cylinder

SOLH MAL lightweight aluminum alloy mini pneumatic cylinders are ultra-economical compact actuators designed for light-duty automated applications. Constructed with hard-anodized aluminum barrel and end caps paired with anti-rust stainless steel piston rod, this model is 15% lighter and around 10mm shorter in overall length compared with conventional MA series cylinders while greatly cutting procurement costs. It features excellent dimensional interchangeability with MA and CM2 cylinders for straightforward replacement and low-cost equipment retrofits. Adopting dual-end thread locking assembly ensures stable structural performance during continuous operation; the streamlined round body allows easy disassembly, inspection and maintenance. A full portfolio of variants covers standard double-acting, spring single-acting power-off reset types, synchronous double-rod units and stroke-adjustable MALJ versions to meet diverse light-load linear motion requirements. Standard rubber bumpers absorb mild shock and noise, with optional adjustable air cushions available for high-speed frequent cycling. Low-friction composite sealing with built-in oil storage grooves supports oil-free maintenance-free operation with a service life reaching 5 million cycles. An optional built-in magnetic ring works seamlessly with SMC M9B and Airtac CS1-G magnetic sensors to achieve real-time piston position feedback and PLC automatic linkage control. Supported by stable mass production and fast order fulfillment, these budget-friendly cylinders are widely applied in electronics assembly, packaging machinery and light industrial automation under dry and low-dust working environments.

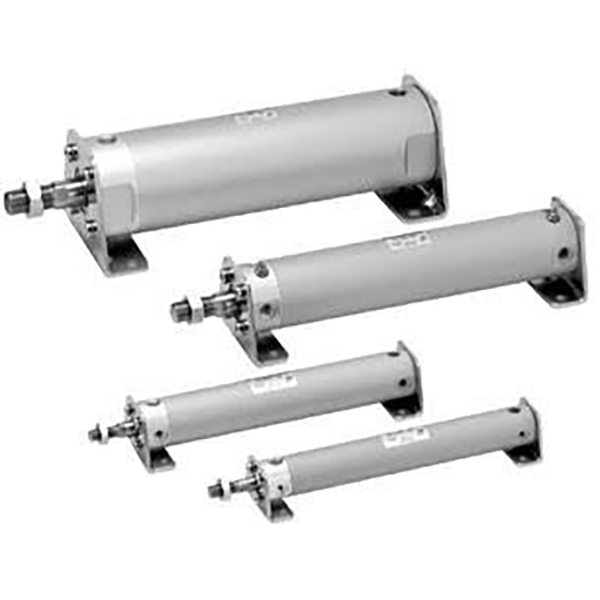

SOLH CG1/CDG1 aluminum lightweight round pneumatic cylinder covers bore sizes φ20~100 mm and serves as a direct dimensional replacement for SMC CA1 series. Constructed with extruded aluminum barrel & end caps and hard chrome plated piston rod, it is 30% lighter than conventional standard cylinders with excellent heat dissipation. Thread-locked end cap structure facilitates easy disassembly and maintenance. Four-direction air ports arranged at 90° intervals offer highly flexible piping layout. Rich variants include CDG1B standard double acting type, CG1S/CG1T single acting spring return/extend, CG1W double rod synchronous cylinder and CG1K hexagonal non-rotating rod cylinder. CDG1 models are equipped with built-in magnetic ring compatible with M9B/A93 magnetic switches for position feedback. Standard rubber cushion is equipped; suffix A air cushion is optional to reduce impact noise under high-speed operation. Low-friction composite seal delivers low starting pressure, supports oil-free operation with service life over 8 million cycles. Multiple mounting styles are available: basic type, foot mount, flange, clevis and trunnion mount. Perfect for long-stroke, light & medium load high-frequency reciprocating applications on conveyor lines, packaging machinery and electronic automation equipment. A minimum 50% thrust safety margin should be reserved during selection.

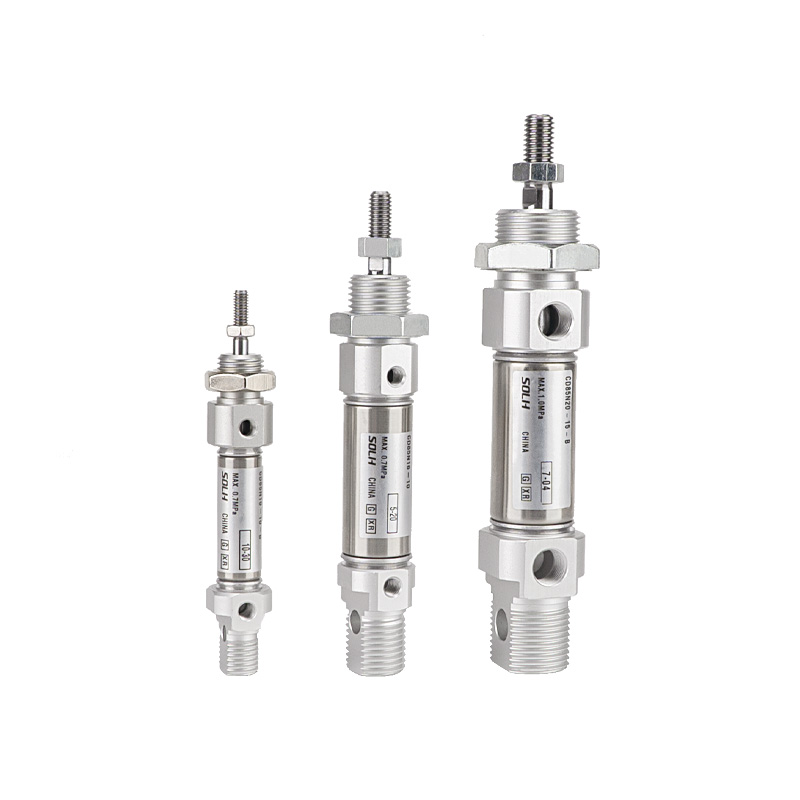

SOLH C85/CD85 stainless steel mini cylinder complies with ISO 6432 international standard and can be directly interchanged with equivalent SMC models. Bore sizes: φ8/10/12/16/20/25 mm. Barrel and piston rod are made of 304 stainless steel with excellent rust and corrosion resistance, applicable to humid, mild acid & alkali environments, as well as clean production lines for food, pharmaceutical and electronics industries. Adopting tie-rod-free crimped end cap structure, the cylinder features slim and lightweight design. Complete variants include standard double acting, single acting spring return/extend, double rod synchronous type and C85K square non-rotating rod cylinder. CD85 versions are equipped with built-in magnetic ring for position detection via magnetic switches. Standard rubber cushion is supplied; suffix C air cushion is optional for φ10~25 models to absorb impact under high-speed operation. The minimum starting pressure reaches 0.05MPa, supporting long-term oil-free operation with piston speed from 50 to 1500 mm/s, perfect for high-frequency short-stroke reciprocation. Full sets of ISO standard mounting options are available: integrated clevis, flange, foot mount, trunnion mount and more. Compared with MI and MA cylinders, C85 owns globally recognized ISO dimensions, bringing outstanding convenience for equipment replacement in overseas markets. A minimum 50% thrust safety margin is recommended during selection.

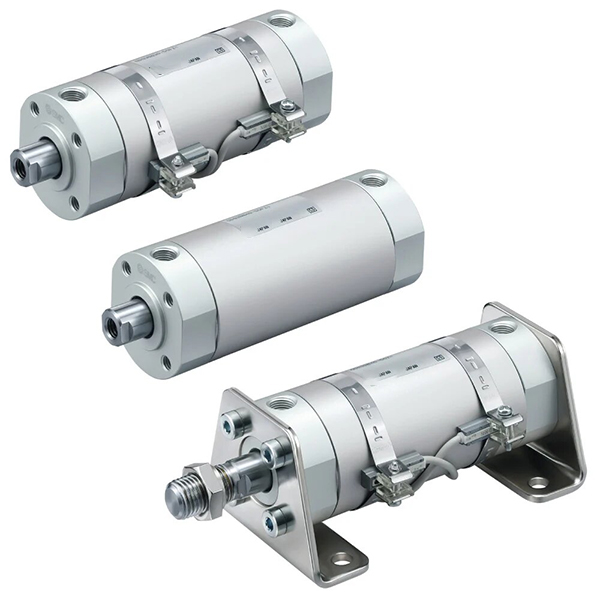

SOLH CG3 ultra-short lightweight pneumatic cylinders serve as an upgraded replacement for traditional CG1 series round actuators. Constructed with high-strength aluminum alloy barrel and end caps paired with hard chrome-plated piston rods, this series cuts overall weight by 24% and shortens total length up to 51mm for remarkable space optimization. Available in bore sizes ranging from φ20mm to φ100mm, it supports four-direction air port arrangement to enable flexible piping layout inside compact machinery. Multiple structural variants cover double-acting, spring single-acting, double-rod and hexagonal anti-rotation piston rod versions to satisfy diversified linear drive demands. Standard rubber cushion mitigates mild end impact, while optional air buffer suits high-speed operation up to 1000mm/s. Low-friction composite sealing realizes oil-free operation with service life exceeding 8 million working cycles; CDG3 magnetic integrated models support magnetic switch installation for PLC position feedback and automatic linkage control. We maintain stable mass production and sufficient spot inventory, widely applied in packaging equipment, electronic assembly lines and general light industrial high-frequency automation with outstanding cost efficiency.

SOLH CDUJB ultra-compact free mount cylinder is developed for equipment with limited installation space. Compared with conventional CU series, its length is reduced by 64% and volume cut by 70%. The square compact body supports multi-surface direct mounting without extra brackets. The product lineup includes non-magnetic CUJB, magnet-equipped CDUJB and copper-free cleanroom CDUJS. Bore sizes range φ4~20mm, available in double acting and single acting spring return types with optional rubber cushion. Magnetized models match miniature magnetic switches for short-stroke precise motion and support oil-free operation. Widely applied in 3C electronics, semiconductor wafer positioning and medical clean automation. Magnetic shield plates are optional for densely arranged cylinders.

SOLH CU/CDU rectangular free mount cylinder features ultra-thin block structure with multi-surface mounting holes, enabling multi-angle direct installation without brackets to save equipment space. Complete variants include non-magnetic CU, magnet-equipped CDU, CDUK non-rotating rod and CDUW double guided rod models. Bore sizes φ6~32mm, available in single/double acting types with fixed rubber buffers on both ends for continuous oil-free operation. CDU series is compatible with CMSH and DMSH magnetic switches for position detection and tolerates partial side load. Widely used in 3C & semiconductor jigs, automation stoppers, light clamping positioning and small press-fit mechanisms for compact automated equipment.

SOLH MK six-surface mount compact cylinder is upgraded from MD cylinder with built-in anti-rotation mechanism. The piston rod anti-twist accuracy reaches ≤±0.5°, directly interchangeable with Airtac MD and SMC CQS series. Square thin body allows bracket-free installation on six sides and facilitates compact parallel layout of multiple cylinders. Variants include double acting MK, single acting MSK/MTK, MKD double rod and MKJ adjustable stroke models. Built-in magnetic ring optional with rubber end buffers and oil-free capability. Bore sizes φ6~32mm, widely applied in 3C precision tooling and short-stroke clamping positioning for automation requiring fixed workpiece angle in confined space.

SOLH CQS compact thin cylinder is dimensionally interchangeable with SMC CQS series and upgraded from CQ2 series. The square ultra-slim body features shorter overall length for high-precision short-stroke tasks in confined space. Variants include standard single rod, CQSW twin rod, CQSK non-rotating rod and XB24 long-life model. CDQS with built-in magnet supports multi-side mounting of magnetic switches. Equipped with low-friction oil-storage seal for oil-free operation and service life up to 5 million cycles, paired with fixed rubber buffers on both ends. Bore sizes φ12~25mm, widely used for pushing, clamping and positioning on precision fixtures of semiconductor and 3C electronics equipment for retrofitting and replacement.

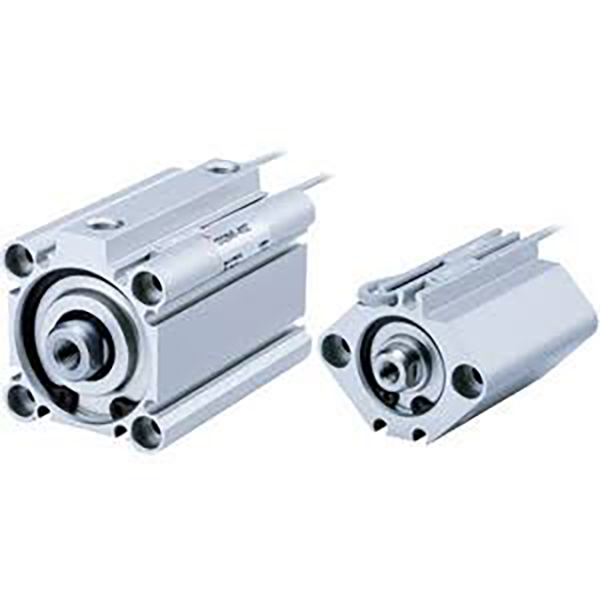

SOLH CQ2 square compact thin cylinder is fully interchangeable with SMC CQ2 series. Its ultra-short square body reduces length by 50% compared with conventional tie rod cylinders to save installation space. It covers a complete bore range φ4~200mm with abundant variants: single rod, CQ2W twin rod, CQ2K non-rotating piston rod, optional air cushion and ultra-short stroke version. CDQ2 models with built-in magnet support multi-side magnetic switch mounting without protruding sensors. Standard rubber bumpers are equipped, and air cushion is optional for high-speed operation. Adopting oil-reserved low friction seal for oil-free operation with service life up to 5 million cycles, widely used for clamping, pushing and positioning in electronics, automotive and packaging automation.
