Air Cylinder

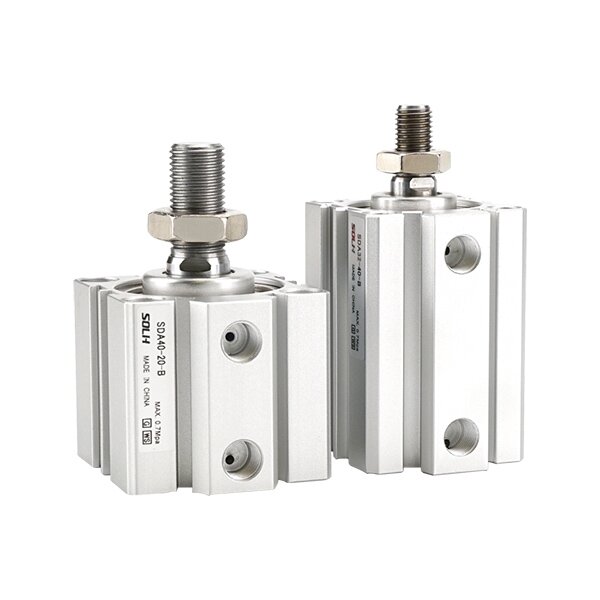

SOLH SDA square ultra-thin compact cylinder is an economical compact pneumatic actuator. Its body length is only 1/2~1/3 of standard tie rod cylinders and supports embedded installation to save space. Mounting dimensions are interchangeable with Airtac ACQ and SMC CQ2 series. It offers comprehensive variants: double acting, SSA/STA single spring return, SDAD twin rod, SDAJ adjustable stroke and SDAS magnet-equipped models. Built-in rubber bumpers at both ends absorb shock and reduce noise. Grease-stored low friction seal enables long-term oil-free operation. Bore sizes φ12~100mm, suitable for short-stroke pushing, clamping and positioning, widely applied in 3C automation, packaging machinery and fixtures as a cost-effective solution for space-limited equipment.

SOLH RQ thin cylinder is interchangeable with SMC RQ/RDQ series. It adopts innovative ringless built-in air cushion structure with 3 times energy absorption capacity of CQ2 rubber buffer and 50% lower operating noise. The ultra-slim square barrel is 20% shorter than conventional air cushion thin cylinders, and mounting dimensions fit CQ2 and CQS for direct upgrade replacement. Variants cover non-magnetic RQ, magnet-equipped RDQ and lockable RLQ for vertical load anti-drop. Suitable for continuous high-speed reciprocation at 50~500mm/s. Bore sizes φ20~100mm and supports oil-free operation. Widely used in high-cycle automation loading/unloading, precision clamping and positioning requiring low impact and low noise.

SOLH MD multi-position free-mount compact cylinder is equipped with tapped mounting holes on six sides of the block body for bracket-free installation at any angle, 30%~50% thinner than standard round cylinders to fit narrow, high-density equipment layout. Five sub-models cover all working modes: standard single-rod double acting MD, single-rod single acting MSD (spring extend) / MTD (spring retract), anti-torsion double-rod MDD, and stroke-adjustable double-rod MDJ. Bore sizes range from 6 to 32 mm with standard strokes 5~60 mm. Each unit comes with built-in front rubber buffer and dual side slots for magnetic sensors; suffix-S stands for integrated permanent magnet compatible with CMSH/DMSH reed switches. The piston rod adopts integrated self-lubricating bushing for oil-free smooth operation. Double-rod variants eliminate lateral deflection from offset loads, while MDJ features rear adjustment screw for flexible stroke fine-tuning. Widely applied to light-duty clamping, ejecting, crimping and precise positioning of miniature jigs in 3C, semiconductor and general small automation machinery.

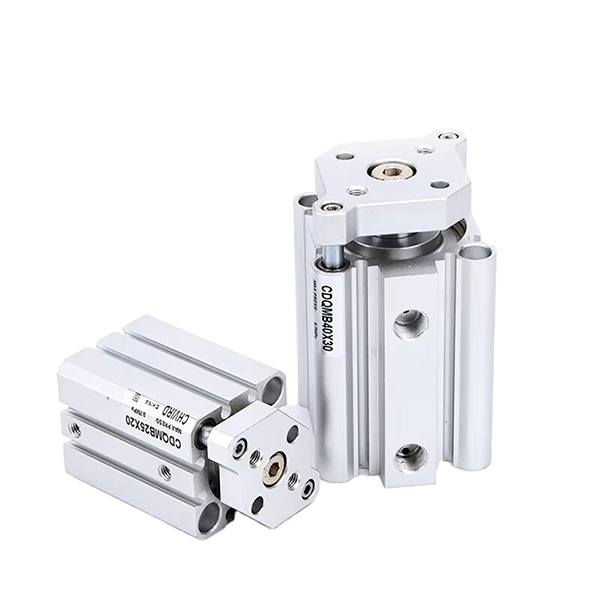

SOLH CQM high-rigidity guided thin cylinder is interchangeable with SMC CQM/CDQM. Built on CQ2 thin cylinder structure with integrated parallel double guide rods, it maintains the same body length as CQ2 and eliminates the need for external guides. Its lateral load resistance is 2~4 times higher than standard CQ2 cylinders, with piston rod rotation tolerance ≤±0.2°. Variants include non-magnetic CQM, magnet-equipped CDQM and CQM-XB24 long service life model. Fitted with rubber bumpers on both ends and supports oil-free operation. Bore sizes φ12~100mm, mounting dimensions compatible with CQ2/CQS. Ideal for short-stroke precision pushing and fixture clamping with offset load in electronics assembly automation.

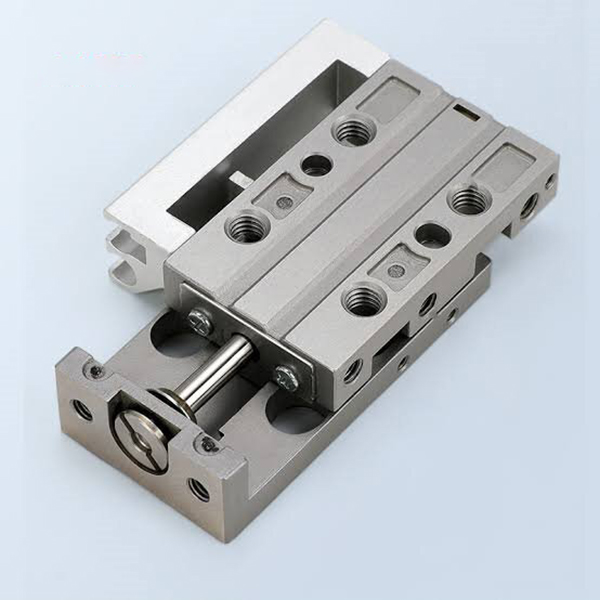

SOLH MXJ ultra-compact high-precision pneumatic slide table is interchangeable with SMC MXJ series. Equipped with integrated stainless steel ball linear guide, it achieves parallelism accuracy of 0.005mm and repeat positioning accuracy ±0.01mm. The ultra-thin lightweight body supports top, bottom and side three-sided mounting, 30%~50% smaller than MXQ slide tables. Bore sizes φ4.5~16mm, equipped with dual-end rubber buffers, and optional metal limiters for 0~5mm adjustable stroke. Symmetrical design enables left-right interchange of piping and sensors, suitable for oil-free clean environments. Capable of stable high-frequency short-stroke movement, widely adopted for micron-level linear motion in 3C micro handling, optical inspection, miniature assembly and compact medical automation equipment.

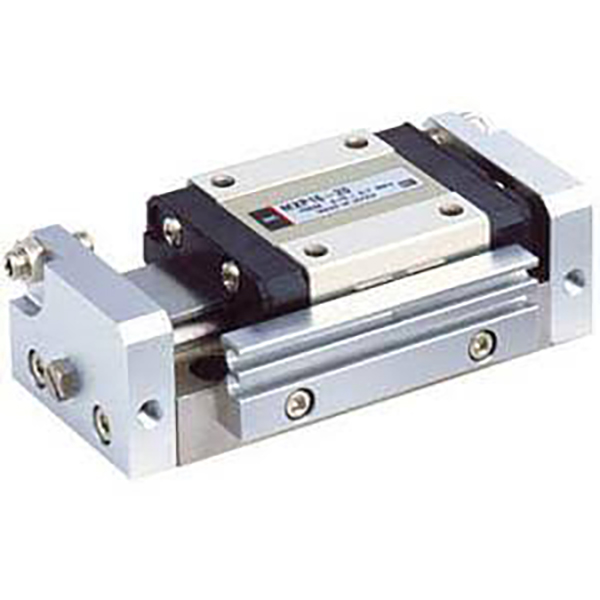

SOLH MXP ultra-high precision pneumatic slide table is interchangeable with SMC MXP series. It adopts integrated martensitic stainless steel body and built-in ball linear guide, achieving travel parallelism of 0.004mm, rotational error down to ±0.03° and repeat positioning accuracy ±0.01mm. The ultra-narrow compact body is 10%~20% slimmer than MXJ models, supporting three-side mounting and switchable axial/lateral piping. Bore sizes φ6~16mm equipped with standard rubber buffers, optional metal limiters and hydraulic buffers available for φ8 and above. It supports oil-free clean environment and stable high-frequency reciprocation. Ideal for confined-space automation stations requiring strict motion precision, such as optical inspection, chip bonding, micro component assembly and premium medical equipment.

SOLH MXH narrow compact pneumatic slide table is interchangeable with SMC MXH series. Driven by dual piston and equipped with circulating ball guide rail, it adopts ultra-narrow body suitable for dense side-by-side layout. It features excellent anti-offset and anti-torsion capacity with allowable torque around 6 times of traditional MXU slides, repeat positioning accuracy ±0.02mm and maximum standard stroke up to 60mm. Supporting 4-direction mounting and 3-side piping, it comes with built-in magnet compatible with various magnetic switches, dual-end rubber buffers and enables continuous oil-free operation. Bore sizes φ6~20mm, widely used for medium-precision long-stroke high-frequency transfer of 3C components and small plastic parts under cantilever or unilateral load in space-limited automation equipment.

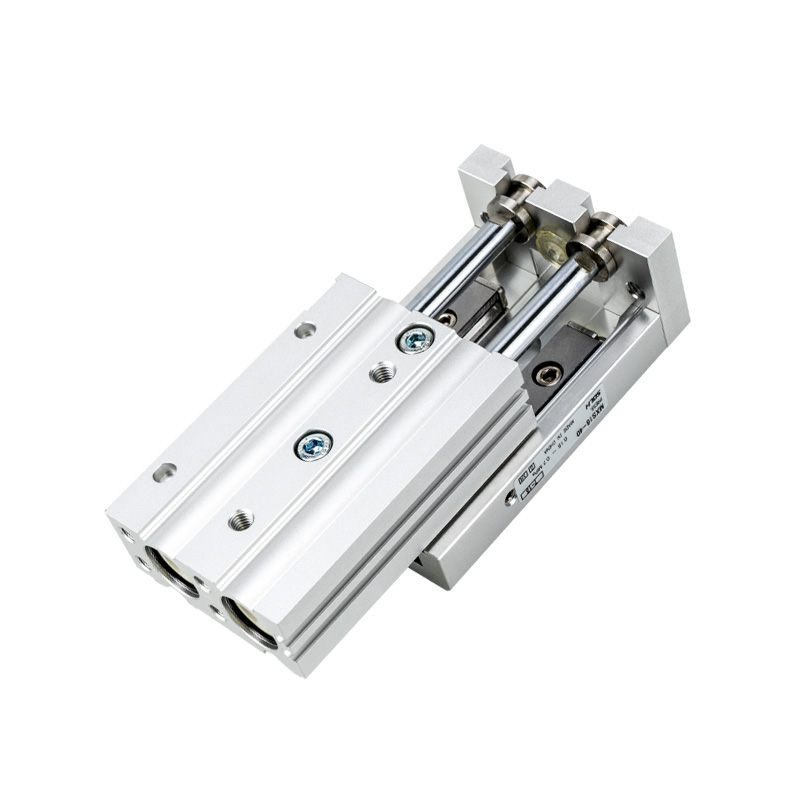

SOLH MXS high-rigidity integrated pneumatic slide table is fully interchangeable with SMC MXS series. It adopts dual-piston driving and preloaded cross roller guide rails for zero-clearance movement, delivering twice the thrust of single-cylinder slides with the same bore and repeat positioning accuracy up to ±0.01mm. The ultra-thin integrated structure saves 30%~50% installation space compared with split cylinder plus external guide sets. Three-sided mounting with positioning pin holes (bottom, side and axial) is supported. Bore sizes φ6~25mm with standard strokes 10~150mm, optional 0~5mm stroke adjusters. Built-in magnet fits magnetic switches and enables oil-free operation. Widely used for high-rigidity, high-precision linear transfer in semiconductor, 3C precision assembly and optical component alignment stations.

SOLH MXQ economical pneumatic slide table is interchangeable with SMC MXQ series. It adopts dual-piston driving and non-preloaded recirculating ball guide rail, built as an ultra-thin lightweight integrated unit with lower height and lighter weight than MXS, achieving repeat positioning accuracy of ±0.02mm. Three-sided mounting with positioning pin holes (bottom, side and axial) is available. Bore sizes φ6~25mm, standard strokes 10~150mm, optional 0~5mm stroke adjusters. Built-in magnet fits magnetic switches and supports oil-free operation. As a cost-effective basic linear actuator, it fits budget-sensitive projects and is widely used for light-load high-frequency transfer of small electronic and plastic parts and standard-precision automated assembly lines.
